Visionary Solutions E4200 – 4K UHD AV over IP PoE+ Encoder

Product Overview

The Visionary Solutions PacketAV E4200 is a 4K UHD AV over IP encoder with PoE+ that distributes cinema-quality, ultra-low latency video across standard Gigabit networks. Designed for commercial AV integration, it converts any HDMI or USB-C source into a routable network stream for conference room presentation, digital signage, and enterprise-wide AV distribution. Three local inputs with HDMI loop-through let it double as an in-room presentation switcher, and the unit is upgradeable to Dante/AES67 networked audio with a separately purchased PacketAV module. Pair it with the matching D4200 decoder for end-to-end distribution.

Product Description

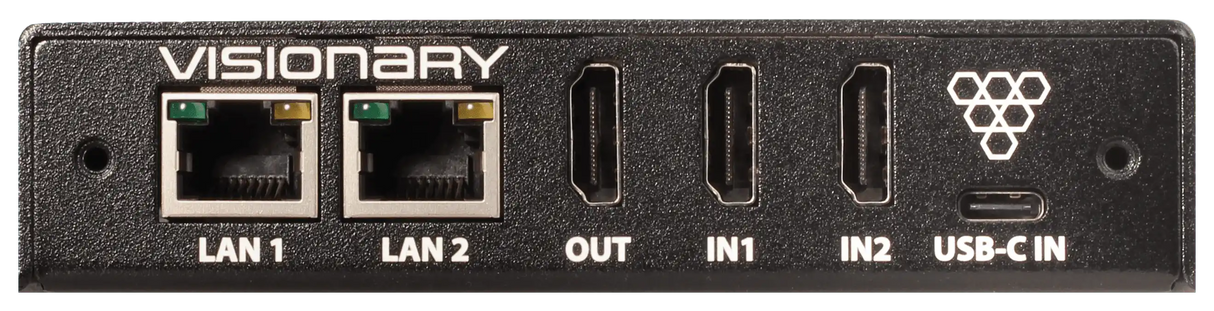

The E4200 encodes sources up to 4K60 4:2:0 using Visionary's JPEG2000-based, dynamically optimized compression codec, which analyzes content to preserve fine computer-generated graphics and full-motion video at adjustable bitrates from 50 to 800 Mbps. Two HDMI inputs and one USB-C input (DisplayPort Alt Mode) feed an internal switcher with HDMI loop-through, so a confidence monitor or local display can show any connected source while it streams to the network. Input selection works through auto-switching, a control system, or the embedded web UI — a practical arrangement for boardroom and multi-purpose room AV design.

A single PoE+ network drop carries video, audio, USB, and control, with VLAN tagging available to separate AV traffic on a corporate network. The Ethernet expansion port (PSE) passes connectivity and PoE through to downstream LAN devices or daisy-chained endpoints. Integrators can independently route video, audio, USB, IR, and RS-232 across the system, and USB 2.0 over IP supports KVM extension from any endpoint. Enterprise security — AES-128 stream encryption, 802.1x authentication, HTTPS API, and SSH — aligns the platform with corporate and government IT policy. Mass configuration via CSV export/import in the embedded web page, LLDP, and QoS support streamline large deployments, while Vision Lite software and third-party drivers for Crestron, Q-SYS, Symetrix, and RTI handle control integration. Rack-mount kits are available for high-density head-end installation in standard 19-inch racks.

Key Features

• 4K UHD over 1GbE — Encodes cinema-quality video for distribution on standard Gigabit networks without fiber or 10G switching.
• Three-Input Local Switcher — Two HDMI inputs plus USB-C with HDMI loop-through support auto-switching or control-system selection.
• USB-C Source Input — Connects laptops, tablets, and mobile devices supporting DisplayPort Alt Mode for BYOD presentation sharing.
• Ultra-Low Latency — Approximately one frame (17 ms @ 1080p60 and 4K60 4:2:0) keeps live AV synchronized in the room.
• Upgradeable to Dante/AES67 — Add the separately purchased PacketAV Dante/AES67 module for networked audio embedding and de-embedding.
• Single PoE+ Network Drop — One CAT5e/6 cable delivers video, audio, USB, control, and power for fast commercial installation.
• Ethernet Expansion Port with PoE Pass-Through — Networks and powers downstream LAN devices or daisy-chained endpoints.

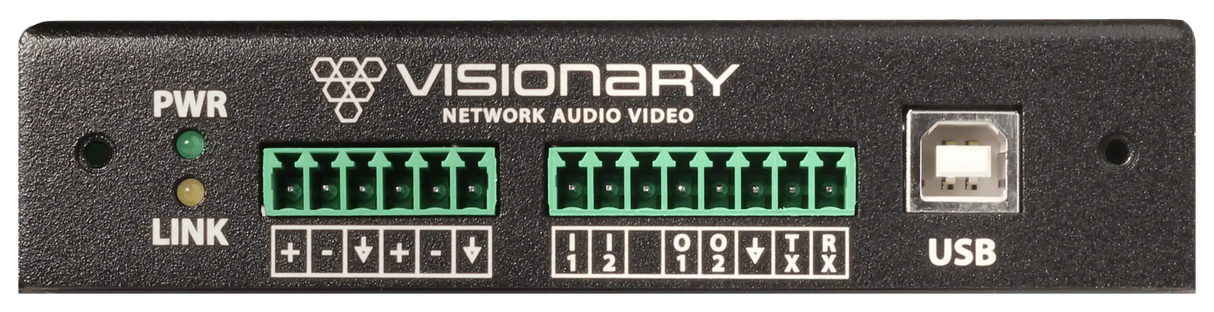

• Independent Signal Routing — Separately matrix video, audio, USB, IR, and RS-232 across the system.
• Enterprise Security — AES-128 stream encryption, 802.1x, HTTPS API, and SSH meet corporate IT requirements.
• Mass Configuration and LLDP — CSV-based bulk setup and automatic endpoint discovery accelerate large rollouts.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Training room
• House of worship
• Government space
• Commercial meeting space
• Multi-purpose room
• Auditorium

Technical Specifications

Frequently Asked Questions

Which decoder pairs with the E4200?
The D4200 decoder is the direct companion, and the E4200 also interoperates with other Visionary 4-Series decoders such as the DuetD-2.

Is Dante audio included?
The E4200 is upgradeable to Dante/AES67 with a separately purchased PacketAV Dante/AES67 module. If you need Dante out of the box, consider the DuetE-2 encoder.

Can it switch local sources without a control system?
Yes. Auto-switching (input detect) mode selects between the two HDMI inputs and USB-C automatically; control-system and web-browser selection are also supported.

What network hardware do I need?
Standard IGMP-capable Gigabit Ethernet switches and CAT5e/6 cabling. The E4200 deploys on existing enterprise LANs or a dedicated private AV network.

How is the encoder powered?
Via PoE on the main LAN port (standard PoE, 15 W or lower). Supplying PoE+ enables PoE pass-through to devices on the Ethernet expansion port.

Does it integrate with Crestron or Q-SYS?
Yes. Third-party control drivers are available for Crestron, Q-SYS, Symetrix, and RTI, alongside Visionary's Vision Lite control software.
