Visionary Solutions PacketAV MV5 IP Multiviewer

Visionary’s MV5 is a high performance IP Multiviewer with integrated scaling and multi-windowing technology.

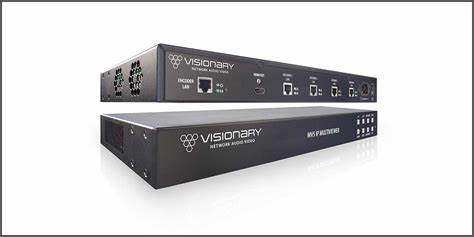

The MV5 IP Multiviewer is a 1RU rack-mountable windowing appliance that connects to a network and accepts up to (4) AV over IP streams from PacketAV Matrix 5-Series ultra-low latency 4K60 4:4:4 encoders. The MV5 is designed for processing these dynamically switchable input streams simultaneously in a variety of layouts. Each input can be scaled and positioned according to default presets (such as quad view, side-by-side, Full, PiP, PoP, 3+1, etc.) or in any user-defined configuration.

With the MV5, users can mix and match input resolutions, scale any video input up to 4K60 4:4:4 and route any input to any window, combining up to four sources together into a single 4K60 4:4:4 image. The combined output video is then encoded into a single stream sent to one or more PacketAV Matrix 5-Series Decoders at resolutions up to 4K60 4:4:4. Multiple MV5’s can be cascaded to provide 7×1, 10×1, 13×1, 16×1 or higher capability.

The MV5 IP Multiviewer enables users to select audio from any of the four sources for playback — even one not currently displayed. Seamless switching ensures no frame loss during window and video transitions. Both 1080p60 (HD) and 4K60 4:4:4 (UHD) inputs can be displayed without downscaling, taking full advantage of the MV5 IP Multiviewer’s remarkable image processing.

MV5 presents a paradigm shift in traditional multi- windowing technology that has until now required a separate HDMI multiviewer at each display. This flexible and scalable method of IP distributed multi-windowing allows the MV5 to be centrally located mounted in an MDF rack or anywhere else on the network, expanding capabilities while reducing installation and maintenance costs.

The MV5 IP Multiviewer is controllable via the front panel buttons along with an intuitive on-screen (OSD) Graphical User Interface, simplifying system configuration. Third-party control is supported via API.

Visionary’s MV5 IP Multiviewer is an ideal solution for small and large commercial venues that require monitoring or displaying of multiple sources simultaneously. From the conference room to the control room, to the classroom, the versatile MV5 represents the next evolution in IP Multiviewer technology.

4K60 4:4:4 Multi-viewer / 1080p Multi-viewer:

• Displays four windows up to 4K UHD resolution
• Compatible with all 5 Series PacketAV Matrix Encoders and Decoders
• Supports simultaneous local HDMI output & Streaming Output (LAN Port)

Seamless Independent Matrix Switching:

• A rear-panel euro terminal block provides a stereo balanced audio output de-embedded from HDMI.This output can feed a variety of local devices to provide a specific line level output to users, or it may be used to directly feed an audio

  power amplifier in the associated audio zone.

Supported Resolutions:

• Max Input/Output: 4K60 4:4:4 HDR 8 bit (3840×2160 60Hz)
• Independent Video In to Video Out resolution.
• Note: rotation only supports the same input/output resolutions

Window Transparency & Border:

• Transparency/Opacity/Fading – Alpha blending allows you to view content through each other
• Each window can have a border with selectable bezel width and color

Cascade multiviewers to display video from any number of video sources on one screen

• Multiple MV5’s can be cascaded to provide 7×1, 10×1, 13×1, 16×1, or higher capability
• PacketAV stream inputs and outputs mean the MV5 does not have to be located near the sources or the displays, which often have space limitations

Adjust output video brightness, contrast,
color and sharpness

Auto Video Scaler & Image Rotation

• No need to worry about configuring the source resolution
• 4K in/1080P out, 1080P in/4K out
• Ultra HD/4K Up-scaling
• 4K60-to-1080p Downscaling
• The user can easily Rotate/Scale each input/window image 90˚ left and right.

Control

• Window Scale and Position – Supports easy adjustment of window size, position and layout in the Multiview modes via front panel buttons
• Default pre-configured Multiview window presets can be accessed via front panel push-buttons
• *API providing access to the full range of features on the encoders and decoders offered to qualified System Integrators

Independent Video & Audio

• Listen to any audio source while in quadrant or Multiview modes

Dynamically Optimized (Adaptive) bit-rate compression CODEC w/ built-in AI

• Visionary’s highly efficient video compression codec is a modified full frame encoding that dynamically optimizes for fine lines (computer generated graphics) or motion video by using sophisticated AI to analyze the input source content. Actively matching the level of compression to a scene by leveraging periods of low motion video content reduces the stream’s size and enhances performance – enabling, without compromising image quality, Visually Lossless transmission of computer generated graphics or full-motion video sources
• Adjustable Video Bitrate: (50 – 200 Mbps or Auto [800Mbps max])

Enterprise Level Security –AES Encryption, 802.1x, HTTPS, SSH
Enterprise applications demand a secure Network AV solution

• AES Stream Encryption – The Advanced Encryption Standard, or AES, is a worldwide standard and was
  adopted as the standard encryption algorithm by the U.S. government for encrypting classified information
• HTTPS Secure API – Using secure SSL/TLS communications HTTPS provides integrity that a client is communicating with the real API and receiving back authentic data. It also ensures privacy for applications and users using the API
• 802.1x Authentication for Network access control – 802.1X provides a secure authentication mechanism for any device trying to access a network
• SSH Network Protocol – SSH is a network protocol used to remotely access and manage a device through command line communications. The key difference between Telnet (used by other AV over IP manufacturers) and SSH is that SSH uses encryption, which means that all data transmitted over a network is secure
