ViewSonic PA504W 4,000L WXGA DLP Projector – Dual HDMI, LAN - Disco...
Product Overview

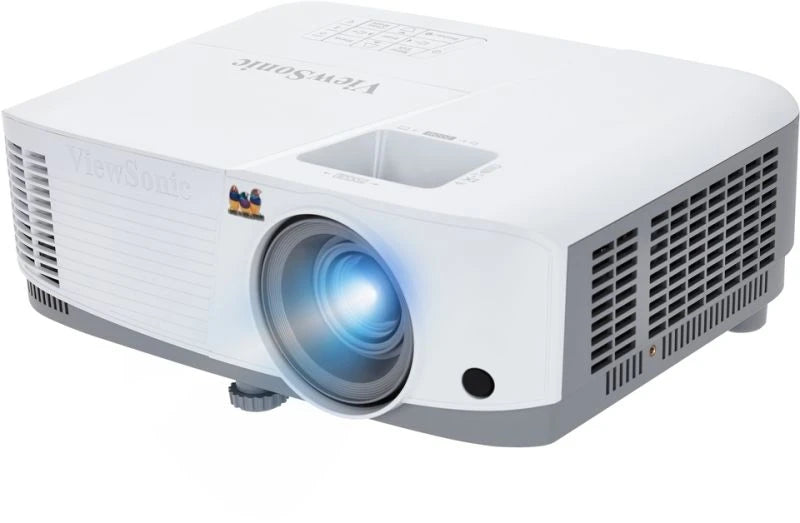

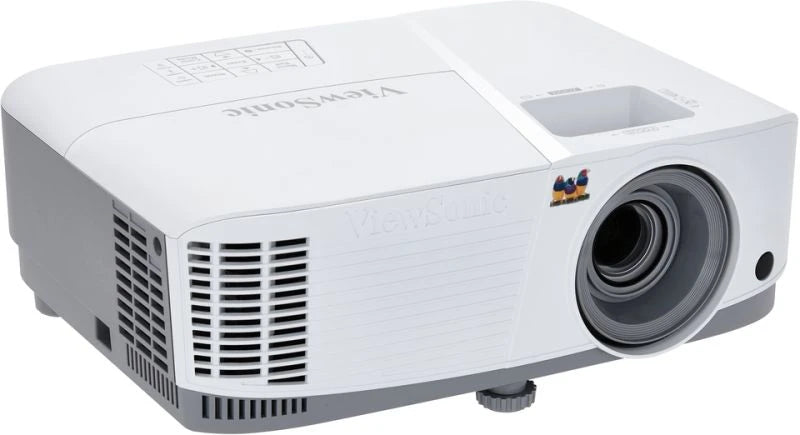

The ViewSonic PA504W delivers 4,000 ANSI lumens of WXGA (1280x800) widescreen brightness for large-audience classrooms and corporate training rooms. A 1.21–1.57 throw ratio enables drop-in replacement of existing installations, while dual HDMI 1.4 ports, 10W speaker, and LAN control streamline AV management.
Key Features
- 4,000 ANSI Lumens WXGA — Widescreen brightness that fills 100"+ screens in ambient light.
- 1.21–1.57 Throw Ratio — Seamless swap for existing installs without relocating the projector.
- Dual HDMI 1.4 Inputs — Effortless source switching between laptops, media players, and PCs.
- LAN Control — Crestron, AMX, PJ-Link, ATEN, and Extron compatible for centralized management.
- Filter-Free Sealed Engine — Zero filter maintenance for consistently clean images.
- SuperEco Mode — 15,000-hour lamp life cuts energy use by up to 70%.
Typical Applications
- Classrooms — WXGA widescreen matches standard laptop and interactive board aspect ratios perfectly.
- Corporate Training Rooms — Dual HDMI and LAN control enable multi-source presentations and remote management.

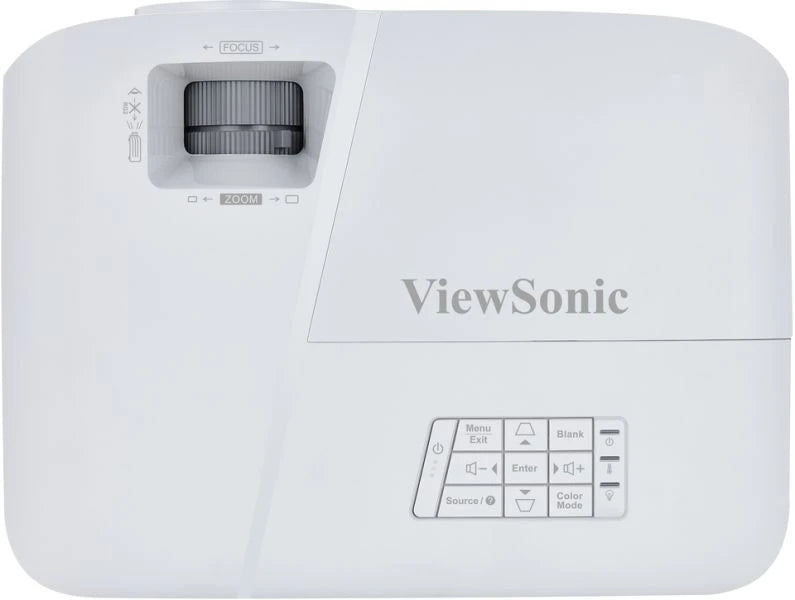

- Conference Rooms — High brightness and 1.3x zoom adapt to different room sizes without reinstallation.
- House of Worship — Bright widescreen projection for slides, video, and livestream content.
Technical Specifications
| Resolution | WXGA (1280x800) |
| Brightness | 4,000 ANSI Lumens |
| Contrast Ratio | 22,000:1 |
| Throw Ratio | 1.21–1.57:1 |
| Lamp Life | 15,000 hrs SuperEco |

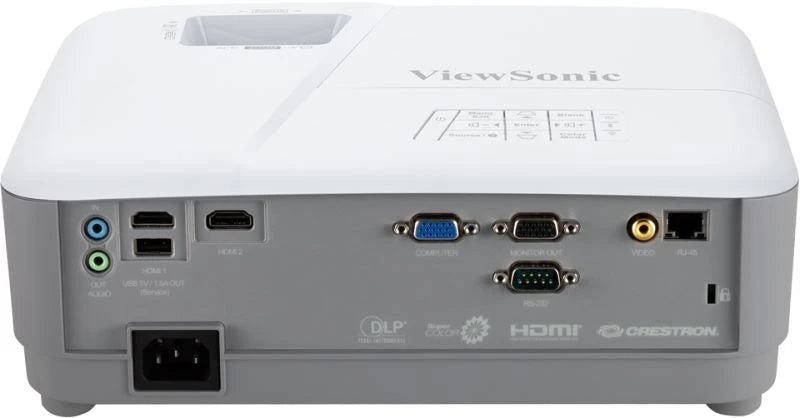

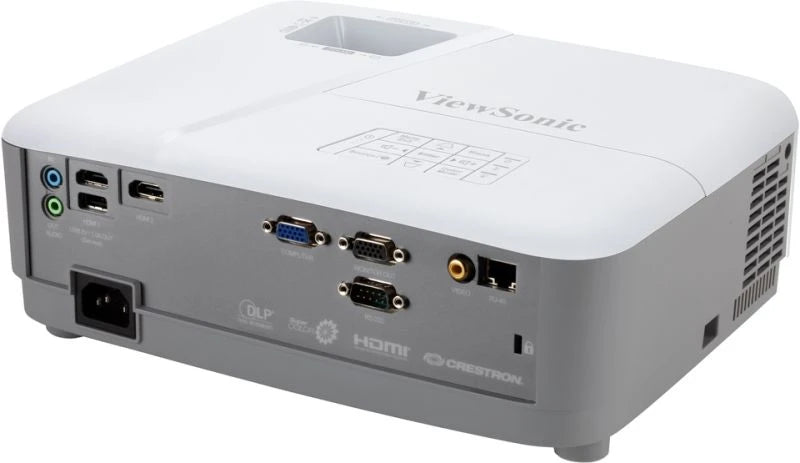

| Inputs | 2x HDMI 1.4, VGA, Composite, Audio In, RJ45 LAN |
| Speaker | 10W |
| Noise Level | 31 dB Normal / 27 dB Eco |
| Warranty | 3-Year Limited, 1-Year Lamp |
Frequently Asked Questions
- What lamp does the PA504W use?
- The PA504W uses the RLC-130 (190W) replacement lamp, available from creationnetworks.net.
- Is the PA504W compatible with Crestron control systems?
- Yes, the PA504W supports Crestron, AMX, PJ-Link, ATEN, and Extron via the RJ45 LAN port.
- Can I add wireless presentation capability?
- Yes, pair the PA504W with the ViewSonic PJ-WPD-700 wireless kit using the USB-A power port.
Replacement Product: PA503W
