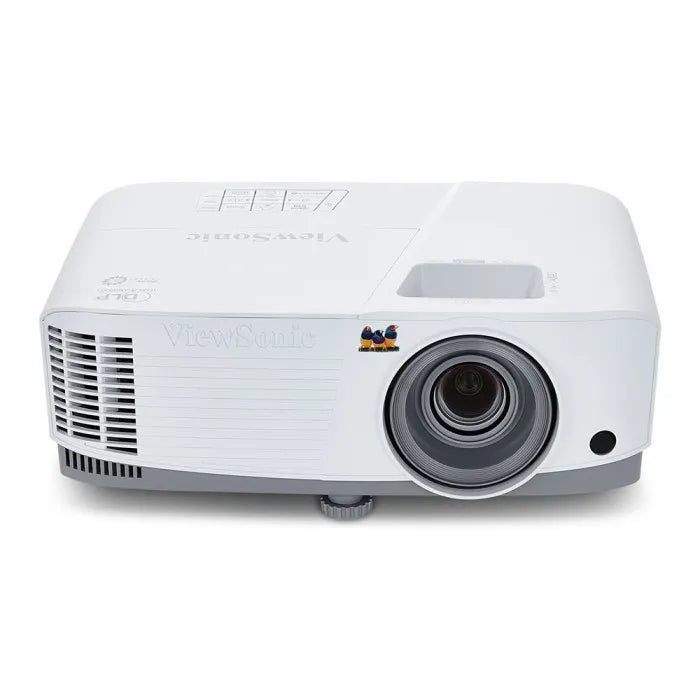

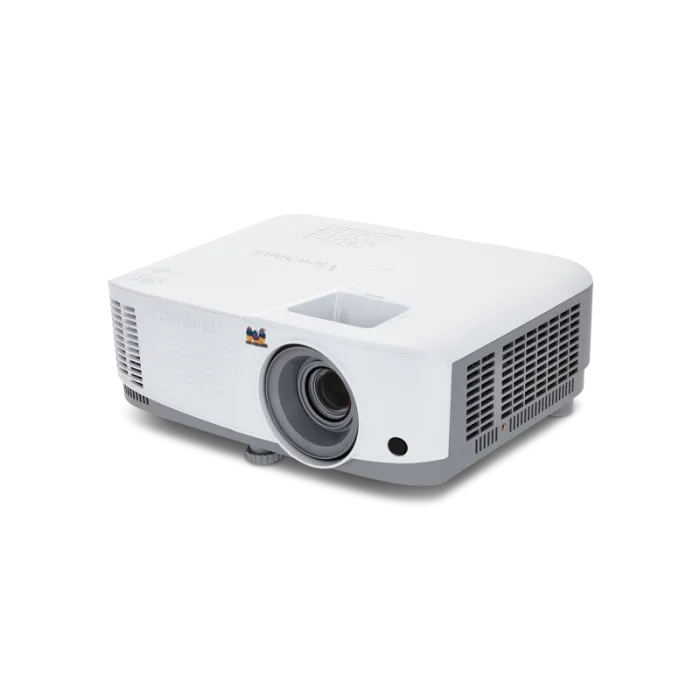

ViewSonic PA503W 4,000 ANSI Lumens WXGA DLP Projector

Product Overview

The ViewSonic PA503W is a 4,000 ANSI lumen WXGA DLP projector designed for classrooms, training rooms, and small conference rooms requiring a widescreen 16:10 native resolution at an entry-level price point. The 1280x800 WXGA format matches the native output of most Windows laptops and presentation software, eliminating aspect ratio letterboxing common with XGA projectors. SuperColor technology, 22,000:1 dynamic contrast, and a 15,000-hour SuperEco lamp mode deliver cost-effective, consistent image quality for high-frequency institutional use.

Product Description

The PA503W occupies the widescreen entry-level position in ViewSonic's PA503 series, offering WXGA (1280x800) native resolution for environments where modern laptop sources and 16:10 presentation software are standard. Compared to the XGA PA503X, the PA503W eliminates the width-axis scaling that occurs when a 16:10 laptop output is projected onto a 4:3 XGA surface, producing a full-width, non-letterboxed image on 16:10 or 16:9 screens. SuperColor technology provides a wide color gamut for accurate reproduction of charts, brand colors, and video content. The 22,000:1 dynamic contrast ratio ensures adequate black depth for content that mixes slides and embedded video clips. SuperEco mode extends lamp life to 15,000 hours with up to 70% power reduction from the rated 200W, relevant for school districts and corporate facilities managing energy consumption across many installed projectors. The 1.55–1.70:1 throw ratio is slightly shorter than the PA503X, meaning this unit can achieve a given screen size from a slightly closer ceiling position. Dual VGA inputs maintain compatibility with legacy classroom AV infrastructure alongside the HDMI 1.4 port for modern sources. Composite video accommodates older media devices. Vertical keystone ±40° with 1.1x zoom and digital zoom (0.8x–2.0x) handle most ceiling-mount geometric scenarios. Quick power-off and a 4.9 lb chassis support efficient mobile cart and multi-room deployment workflows.

Key Features

• WXGA 1280x800 Native Resolution — 16:10 widescreen format matches modern laptop outputs natively without letterboxing.
• 4,000 ANSI Lumens — Suitable for ambient-lit classrooms and small-to-medium conference rooms up to 300".
• SuperColor Technology — Wide color gamut DLP for accurate, vibrant image reproduction.
• 22,000:1 Dynamic Contrast — Adequate depth for mixed slide, document, and video content.
• SuperEco Mode: 15,000-Hour Lamp / 70% Power Reduction — Low operating cost for institutional multi-projector deployments.
• 16ms Input Lag at 120Hz — Smooth, responsive playback for video and fast content transitions.

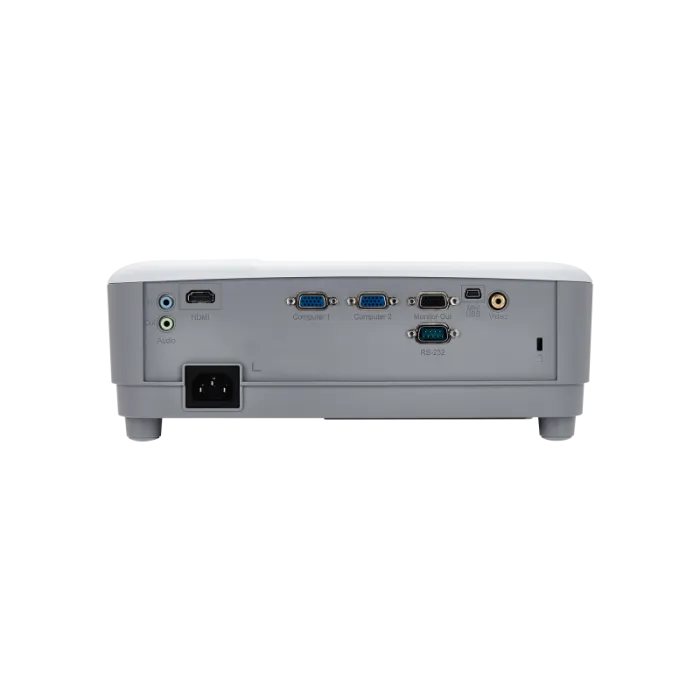

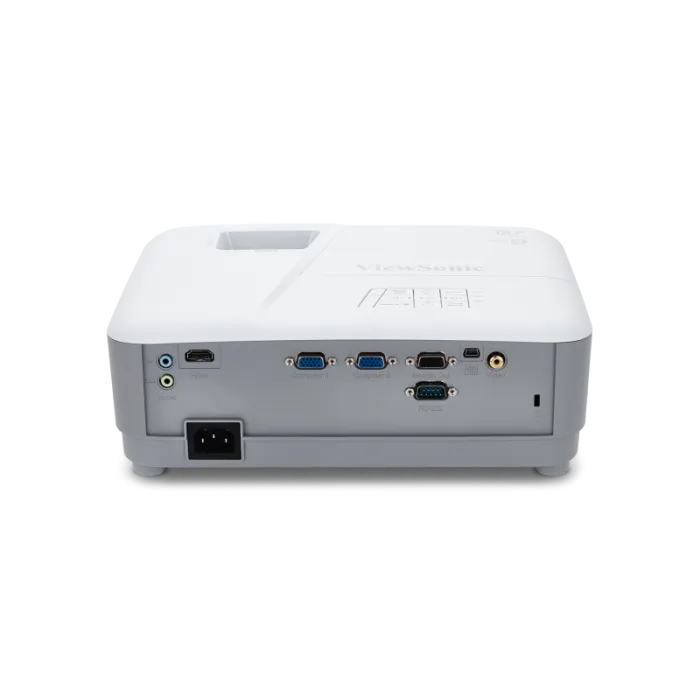

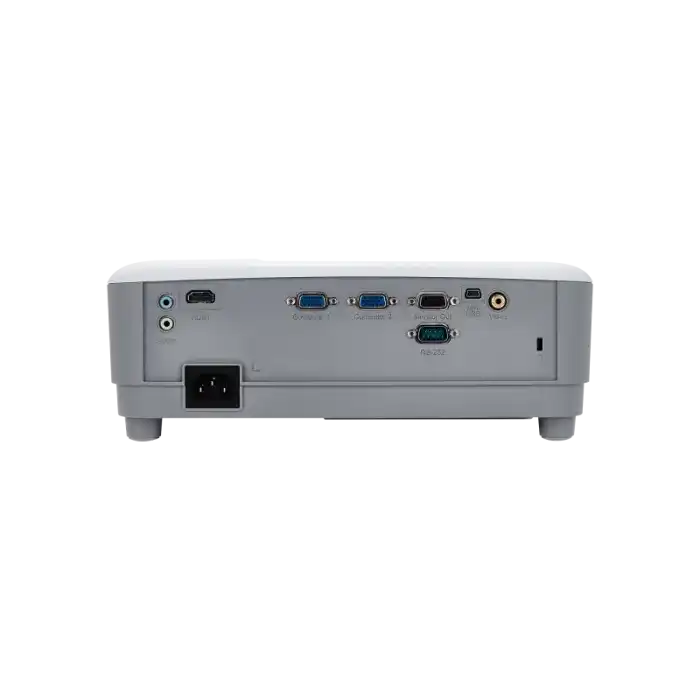

• HDMI 1.4 + Dual VGA + Composite — Full range of modern and legacy source connectivity.
• Quick Power-Off + 4.9 lbs — No cool-down wait; lightweight for mobile cart and multi-room deployment.

Typical Applications

• Classrooms and K-12 educational installations with modern laptop source environments
• Corporate training rooms with standard widescreen presentation workflows
• Small conference rooms with mixed legacy and HDMI sources
• Government training spaces with budget-constrained AV procurement
