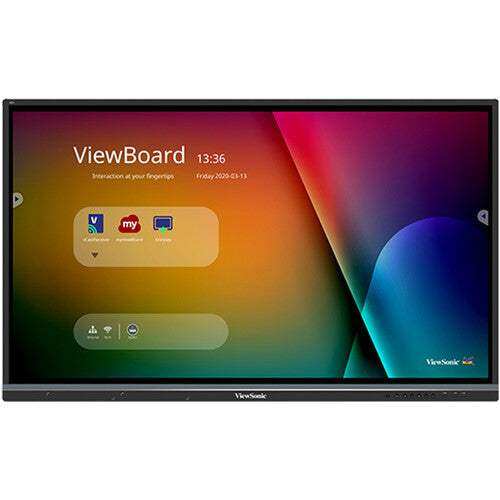

Empower your team to connect, collaborate, and create with the ViewBoard 55" UHD 4K Interactive Display from ViewSonic. This touchscreen features 20-point infrared touch technology and comes with integrated myViewBoard annotation software and ViewBoard Cast streaming software for easy content creation and sharing. Two stylus pens are included. The display's connectivity interface includes HDMI and VGA video inputs, and an HDMI video output. For more computing-intensive interactive applications, the display can be outfitted with an optional slot-in PC module.
Features
- 55" Touchscreen LCD Monitor
- 4K UHD 3840 x 2160 Resolution
- 20-Point IR Touch Technology
- Built-In Slot for Optional PC Module
- HDMI & VGA Interfaces
- 2 x USB 3.1 Gen 1 Ports
- 1200:1 Contrast Ratio
- 350 nits Brightness
- 178° H/V Viewing Angles

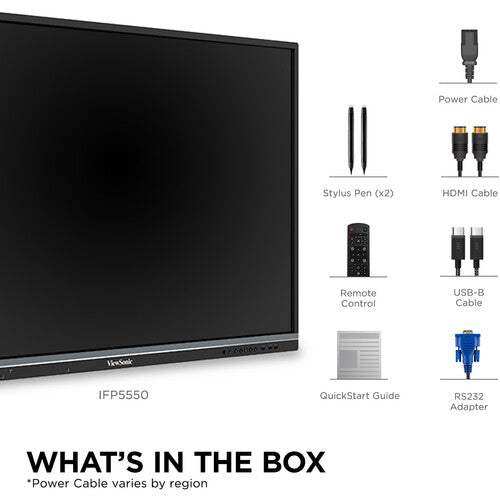

- 2 x Stylus Pens Included
Specs
| Display Size |
54.6"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
350 nits / cd/m2
|
| Touchscreen |
Yes, Infrared (IR)
|

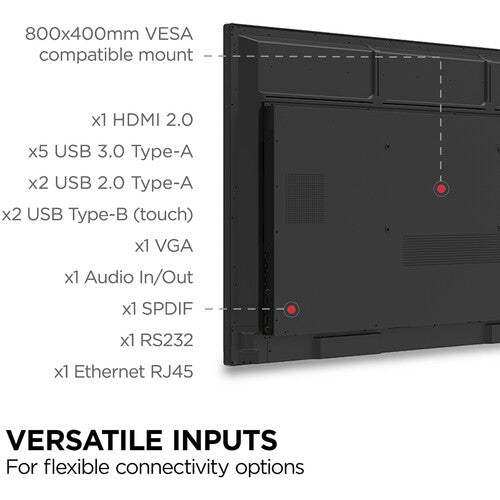

| Inputs |
3x HDMI 2.0
1x DE-15/DB-15 (VGA)
1x RCA (Composite)
1x 1/8" / 3.5 mm
|
| Outputs |
1x HDMI
1x 1/8" / 3.5 mm (Analog Audio)
1x TOSLINK Optical (Digital Audio)
|
| USB I/O |
2x USB-A 3.0 / 3.1/3.2 Gen 1
4x USB-A 2.0
2x USB-B (Unspecified Version)
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C)
|
| Built-In Speakers |
Yes, 2x 10 W
|
Display
| Display Size |
54.6"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
350 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
1200:1
|
| Response Time |
8 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Viewing Angle (H x V) |
178 x 178°
|
| Finish |
Anti-Glare / Matte
|
Surface
| Touchscreen |
Yes, Infrared (IR)
|
| Multi-Touch Points |
20
|
| Hardness Rating |
7H
|
Connectivity
| Inputs |
3x HDMI 2.0
1x DE-15/DB-15 (VGA)
1x RCA (Composite)
1x 1/8" / 3.5 mm
|
| Outputs |
1x HDMI
1x 1/8" / 3.5 mm (Analog Audio)
1x TOSLINK Optical (Digital Audio)
|
| USB I/O |
2x USB-A 3.0 / 3.1/3.2 Gen 1
4x USB-A 2.0
2x USB-B (Unspecified Version)
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C)
|
| Number of OPS/Expansion Slots |
1
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes, 2x 10 W
|
Hardware
| Smart TV |
Yes, Android 8.0
|
| CPU |
Dual-Core: Up to 1.2 GHz Cortex A73
|
| Storage |
16 GB
|
| RAM |
2 GB
|
| OS Compatibility |
macOS / Windows / Chrome OS
|
Electrical
| Power Consumption |
Maximum: 350.0 W
Typical: 81.0 W
Standby: < 0.5 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
|
| Certifications |
CB, CE, ErPLot 6, FCC, RoHS, TUV, WEEE
|
| VESA Mounting-Hole Pattern |
400 x 200 mm
|
| Lighting Lifespan |
50000 Hours
|
| Dimensions |
49.9 x 30.4 x 3.3" / 126.7 x 77.2 x 8.4 cm
|
| Weight |
68.3 lb / 30.98 kg
|
