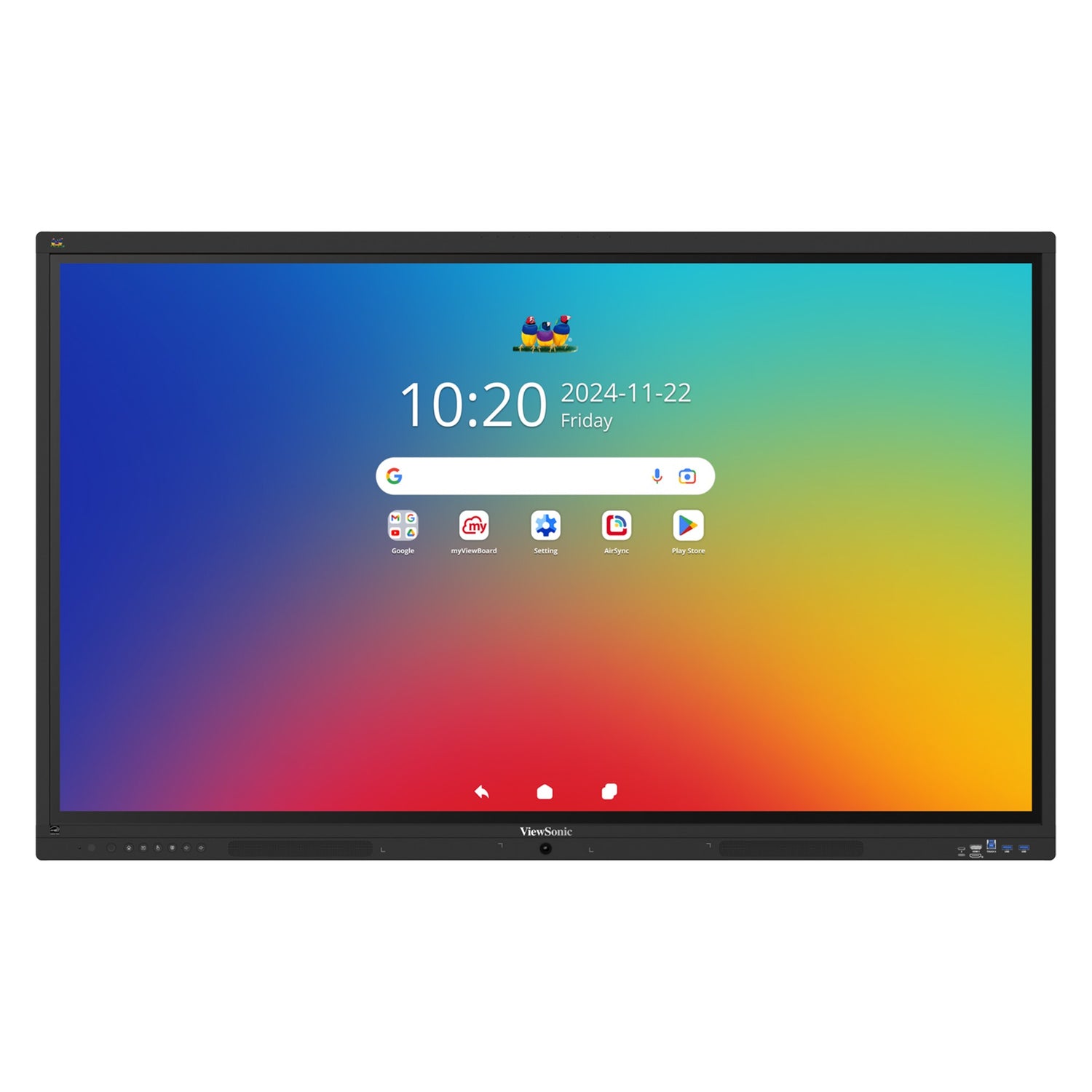

ViewSonic IFP5541 – 55-Inch 4K Interactive Flat Panel Display

Product Overview

The ViewSonic ViewBoard IFP5541 is a 55-inch 4K UHD interactive flat panel display designed for commercial education and corporate collaboration environments. Running on Android EDLA with Google certification, this interactive flat panel display delivers native access to Google Workspace and Microsoft 365 without requiring external compute hardware. A single USB-C cable handles video, touch, audio, data, networking, and up to 100W power delivery, making it a practical choice for IT departments managing large-scale interactive display deployments. The IFP5541 targets K-12 classrooms, higher education lecture rooms, and corporate training spaces where reliable performance and centralized device management are priorities.

Product Description

The IFP5541 is powered by a Rockchip RK3576 octa-core CPU with 8GB LPDDR RAM and 128GB eMMC storage, providing enough processing headroom to run multiple applications simultaneously without lag. The 3840x2160 panel delivers 400 nits brightness with a 5,000:1 contrast ratio and a 9H anti-glare surface measuring 3.2mm thickness. A front-facing 55W soundbar with integrated subwoofer provides room-filling audio, while an 8-microphone beamforming array with full-duplex echo cancellation captures voices from up to 8 meters — supporting hybrid meetings and remote learning scenarios. The 64-point IR multi-touch surface supports simultaneous input from multiple users at under 5ms latency, with built-in palm rejection for accurate writing with stylus or finger. ViewSonic EDLA certification ensures compatibility with Google Workspace Enterprise Management and Microsoft Intune for centralized IT policy enforcement. Included software — myViewBoard, AirSync, and Manager — supports real-time quizzes, screen sharing, annotation, and remote device management at no additional license cost. An Intel OPS slot accepts optional compute modules for Windows-based deployment. PIR and ambient light sensors enable automatic wake and sleep, supporting EPEAT Silver and ENERGY STAR 8.0 certification requirements.

Key Features

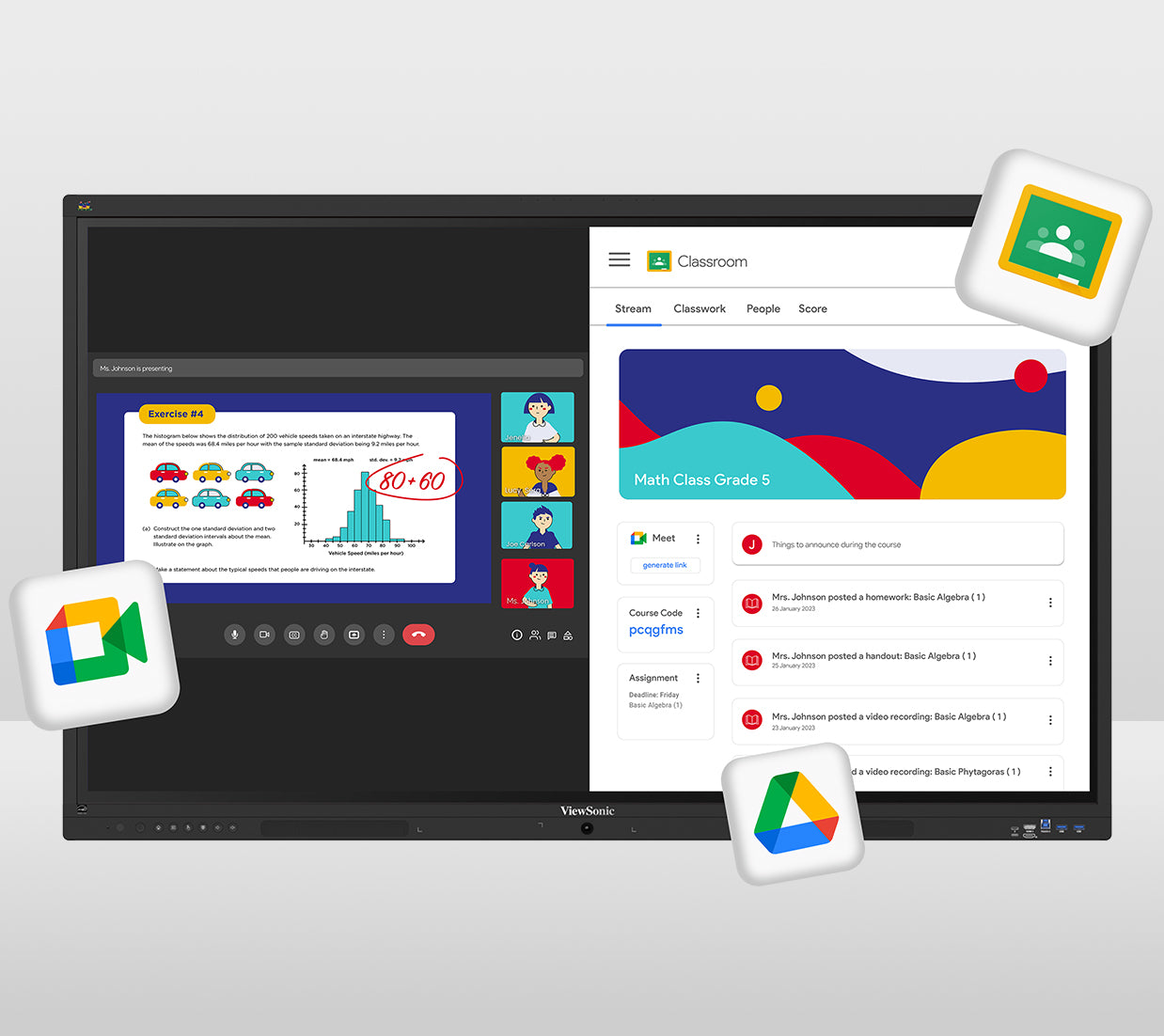

• Android EDLA Certification — Provides verified access to Google Play Store, Google Workspace, and built-in Google security including Play Protect and data encryption.
• Rockchip RK3576 Octa-Core CPU / 8GB LPDDR / 128GB eMMC — Handles concurrent application workloads without performance degradation during active sessions.
• 55W Soundbar + 8-Mic Beamforming Array — Front-facing audio output with integrated subwoofer; microphone array captures voices up to 8 meters with noise cancellation.

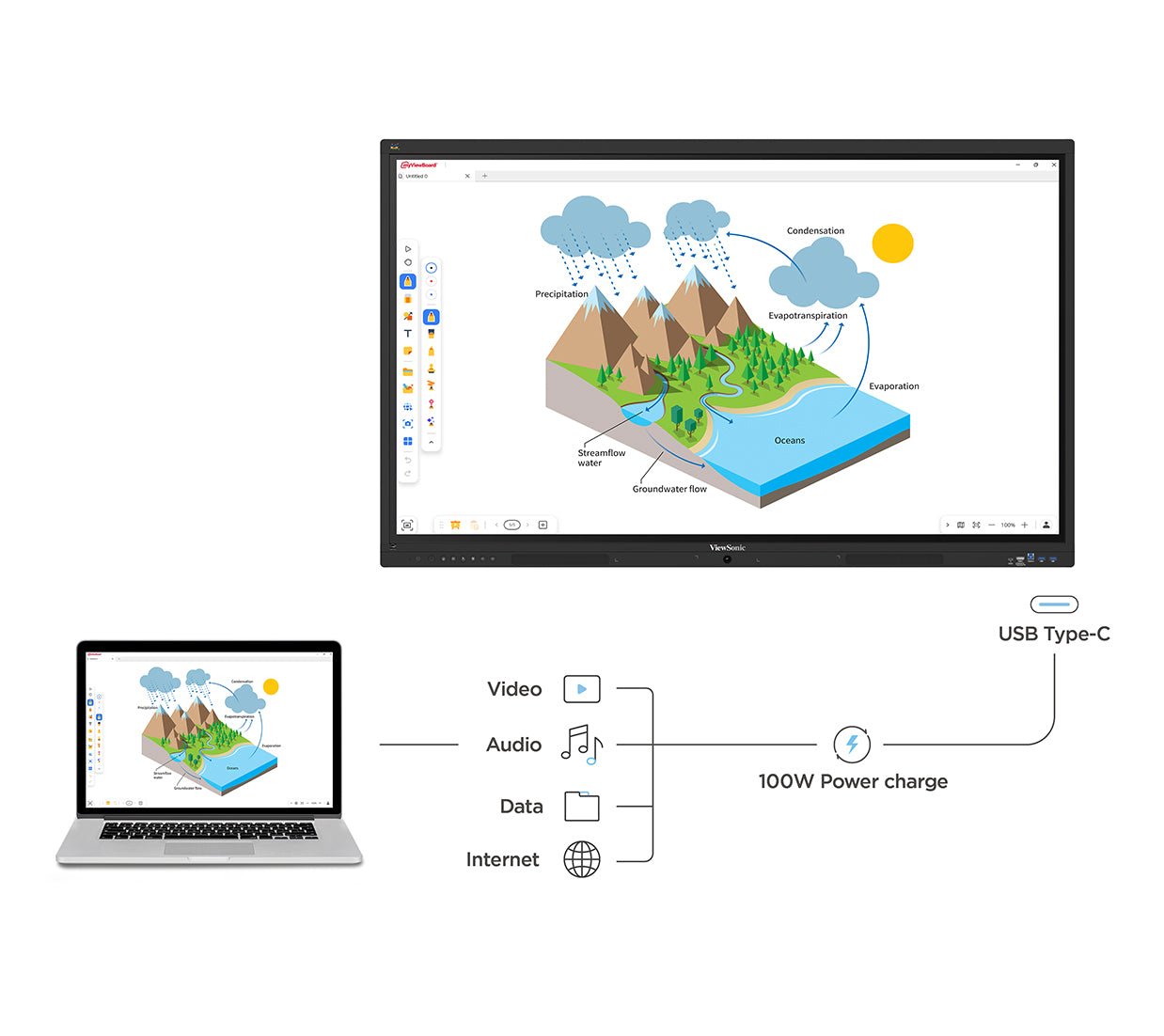

• Single USB-C Connectivity (100W PD) — One cable carries video, touch, audio, data, networking, and power delivery for laptop connections.
• 64-Point Multi-Touch IR, ≤5ms Latency — Supports simultaneous multi-user interaction with palm rejection for natural writing and drawing.
• 4K UHD 400 nit Display, 5,000:1 Contrast — Anti-glare 9H surface with DLED backlight rated 65,000 hours.
• Intel OPS Slot (80-pin) — Accepts optional Windows OPS compute modules for mixed-OS deployment flexibility.
• Dual Ethernet (2x RJ45) — Separate network connections for Android OS and OPS module for isolated network management.

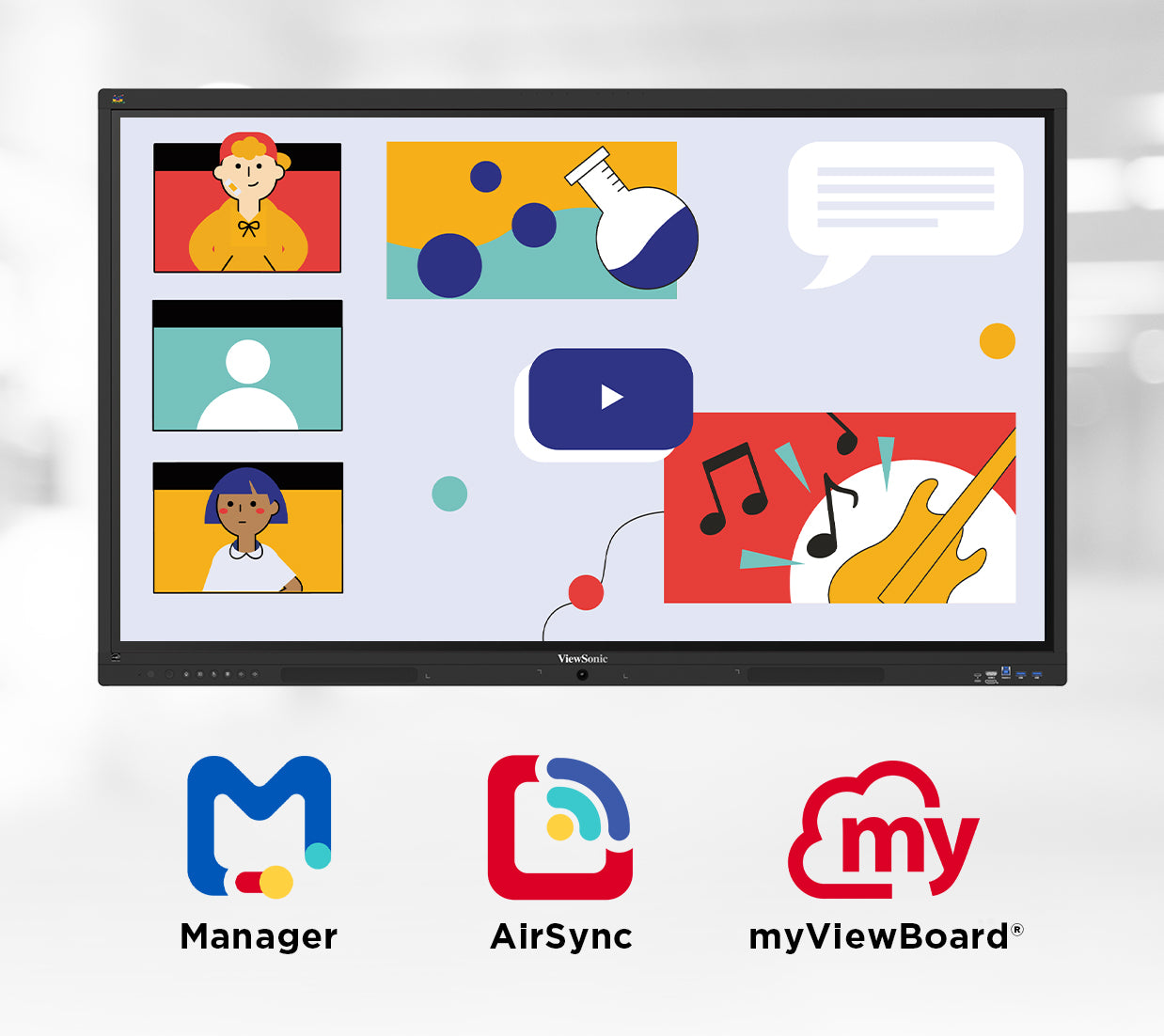

• myViewBoard + AirSync + Manager Included — No additional software license required; supports annotation, quizzes, screen casting, and remote fleet management.
• EPEAT Silver / ENERGY STAR 8.0 — PIR and ambient light sensors automate power states; standby under 0.5W.

Typical Applications

• K-12 and higher education classrooms requiring Google Workspace integration
• Corporate training rooms with hybrid meeting requirements
• Conference rooms and boardrooms needing one-cable USB-C presenter connectivity
• Government and public sector facilities requiring EDLA security compliance
• Command centers and operations rooms with multi-user touch requirements

Technical Specifications

Frequently Asked Questions

Q: Does the IFP5541 require a separate PC or compute device to run applications?

No. The IFP5541 includes an Android EDLA platform with 8GB RAM and 128GB storage, enabling it to run Google Workspace apps, Microsoft 365 (via Google Play Store), and ViewSonic software without an external computer. An Intel OPS slot is available for optional Windows-based compute modules.

Q: What does EDLA certification mean for enterprise IT deployments?

EDLA (Enterprise Device License Agreement) is Google's certification for Android devices used in business and education. It enables Google Workspace Enterprise Management, automatic Google security updates, Play Protect, and data encryption — the same management infrastructure used for Chromebooks and Android enterprise devices.

Q: Can the USB-C port charge a connected laptop?

Yes. The primary USB-C port supports up to 100W power delivery along with video, touch pass-through, audio, data, and networking over a single cable.

Q: How many users can interact with the screen simultaneously?

The 64-point IR touch surface supports up to 64 simultaneous touch points, allowing multiple users to write or annotate at the same time. Palm rejection prevents accidental input from hands or sleeves.

Q: Is the Wi-Fi adapter included in the box?

Yes. The VB-WIFI-004 adapter (802.11AX + Bluetooth 5.0) is included in the package contents.

Q: What AV control systems is the IFP5541 compatible with?

The IFP5541 includes RS232 and dual RJ45 ports for integration with room control systems. It is manageable via ViewSonic Manager software; for third-party AV control certification status, confirm with your integrator, as the IFP series primarily targets IT-managed deployments rather than dedicated AV control ecosystems like the CDE commercial display line.

Q: What is the warranty coverage?

The IFP5541 includes a 3-year limited warranty covering parts, labor, and backlight, with onsite service included.
