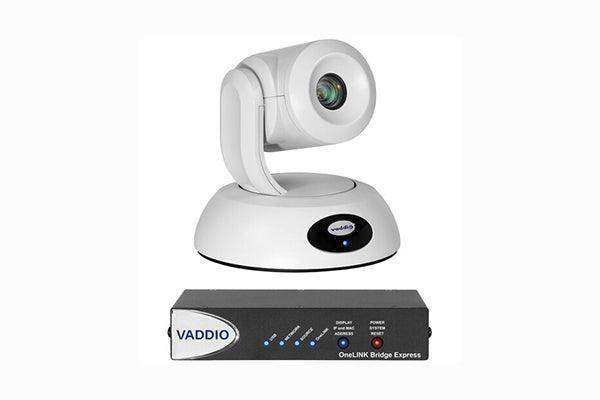

Vaddio RoboSHOT 30E HDBT - 30x Bridge Express PTZ Camera System (White)

Product Overview

The Vaddio RoboSHOT 30E HDBT OneLINK Bridge Express PTZ Camera System (999-99630-270W) delivers 30x optical zoom and simultaneous HDMI, USB 3.0, and IP H.264 streaming in a cost-effective HDBaseT PTZ camera bundle for large conference rooms, lecture halls, and houses of worship. Part of the Vaddio Elite Series, this system uses the OneLINK Bridge Express interface to extend power, video, and control over a single Cat-5e or Cat-6 cable, reducing installation complexity in permanent AV deployments. The Bridge Express is the ideal choice for integrations that don't require 3G-SDI output.

Product Description

The RoboSHOT 30E HDBT camera uses a 1/2.5-type Exmor R back-illuminated CMOS sensor to capture 1080p/60 video across a horizontal field of view from 70.2° (wide) to 4.1° (tele). The 30x optical zoom makes it suitable for large rooms where the camera must frame presenters or audience members from across the space.

The OneLINK Bridge Express provides simultaneous HDMI, USB 3.0, and IP H.264 streaming outputs. The USB 3.0 connection allows direct soft-codec integration with Microsoft Teams, Zoom, Webex, and other UC platforms without additional encoders. IP H.264 streaming supports network recording and remote viewing. A built-in configurable audio matrix with AEC simplifies room audio in standard conferencing deployments.

A single Cat-5e cable (up to 230 ft / 70m) or Cat-6 cable (up to 328 ft / 100m) carries power, video, and control between camera and Bridge Express. Remote IP management enables full configuration from any networked device. Control integrations include RS-232 for Crestron, AMX, and other room automation systems. For the version with 3G-SDI output, see the RoboSHOT 30E HDBT OneLINK Bridge System.

Key Features

• 30x Optical Zoom - Horizontal field of view from 70.2° (wide) to 4.1° (tele); designed for large conference spaces and auditoriums.
• 1/2.5-Type Exmor R Back-Illuminated CMOS Sensor - Clean 1080p/60 imaging in commercial lighting environments.
• Simultaneous HDMI, USB 3.0, and IP H.264 Outputs - All active via the OneLINK Bridge Express for display, conferencing PC, and network streaming in a single system.
• Single-Cable HDBaseT Extension - Power, video, and control over one Cat-5e cable up to 230 ft (70m) or Cat-6 up to 328 ft (100m).
• Configurable Audio Matrix with AEC - Built-in acoustic echo cancellation for clear two-way audio without a separate DSP in standard conference rooms.
• Remote IP Management - Web-based camera configuration and control from any networked device; no software installation required.
• Pan ±150°, Tilt +90° to -30° - Full room coverage from ceiling, wall, or furniture mount positions.
• 1080p/60 Maximum Resolution - Supports 1080p/60, 1080p/30, 1080i/60, and 720p/60.
• PoE+ Camera Power - Camera powered via HDBaseT cable through the OneLINK Bridge Express; no AC outlet needed at the camera location.
• Vaddio Elite Series Build Quality - Commercial-grade construction for permanent installation in AV systems.

Typical Applications

• Large conference rooms and boardrooms
• Lecture halls and university classrooms
• Houses of worship
• Government and institutional spaces
• Auditoriums and multi-purpose rooms
• Training rooms with USB conferencing and IP streaming

Technical Specifications

Frequently Asked Questions

What is included in the 999-99630-270W system?
The system includes the RoboSHOT 30E HDBT PTZ camera, OneLINK Bridge Express interface, Cat-5e cable, power supply, IR remote, and quick-start guide.

What is the difference between the Bridge Express and the full OneLINK Bridge?
The OneLINK Bridge Express provides HDMI, USB 3.0, and IP H.264 outputs. The full OneLINK Bridge additionally includes a 3G-SDI output for broadcast and recording integration. If you need 3G-SDI, see the RoboSHOT 30E HDBT OneLINK Bridge System.

What control systems is the RoboSHOT 30E compatible with?
The camera supports IP (web interface), RS-232, and IR control. It integrates with Crestron, AMX, Extron, Biamp, and other third-party control processors.

How far can the camera be from the Bridge Express interface?
Up to 230 ft (70m) using Cat-5e or up to 328 ft (100m) using Cat-6. Power, video, and control all travel over a single cable run.

Which conferencing platforms does the USB 3.0 output support?
The USB 3.0 output presents as a standard UVC device, compatible with Microsoft Teams, Zoom, Webex, Google Meet, and any UC platform that supports USB cameras.

What warranty coverage does this product carry?
Vaddio cameras carry a 3-year limited warranty on parts and labor. Contact Creation Networks for support and RMA assistance.
