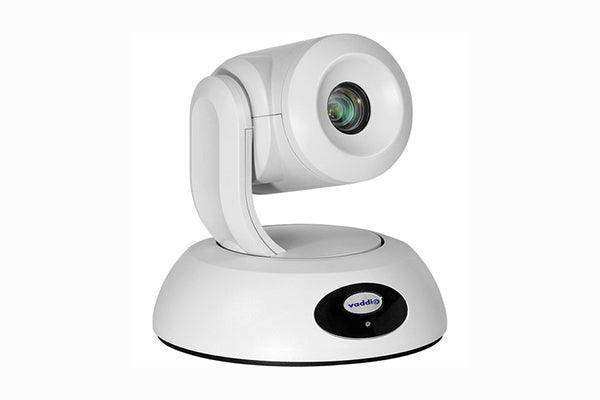

Vaddio RoboSHOT 30E HDBT - 30x OneLINK Bridge PTZ Camera System (White)

Product Overview

The Vaddio RoboSHOT 30E HDBT OneLINK Bridge PTZ Camera System (999-99630-200W) is a commercial-grade conferencing and presentation camera built for large meeting rooms, lecture halls, and houses of worship. Delivering 30x optical zoom and simultaneous 3G-SDI, HDMI, USB 3.0, and IP H.264 streaming, this Vaddio Elite Series HDBaseT PTZ camera system integrates cleanly into both soft-codec and broadcast AV workflows. The bundled OneLINK Bridge extends power, video, and control over a single Cat-5e cable up to 230 ft (70m), eliminating cable clutter and simplifying fixed AV installation.

Product Description

Built on Vaddio's Elite Series platform, the RoboSHOT 30E HDBT uses a 1/2.5-type Exmor R back-illuminated CMOS sensor to capture sharp 1080p/60 video in varied lighting conditions. The 30x optical zoom provides a horizontal field of view from 70.2° at wide angle to 4.1° at full telephoto—enough range to frame individual presenters or the full room from a rear or side-wall mount position.

The OneLINK Bridge serves as the room-side interface, converting the camera's HDBaseT signal to four simultaneous outputs: uncompressed HDMI for a local display or switcher, 3G-SDI for broadcast recording or signal routing, USB 3.0 for direct connection to a conferencing PC, and IP H.264 streaming for remote viewing or network recording. A configurable audio matrix with acoustic echo cancellation (AEC) is built in, reducing the need for a separate DSP in many standard conference deployments.

Remote IP management provides full web-based configuration from any networked device. The camera supports RS-232 and IR control for integration with Crestron, AMX, Extron, Biamp, and other room control systems. For comparable Vaddio PTZ systems, see the full Vaddio collection at Creation Networks.

Key Features

• 30x Optical Zoom - Horizontal field of view from 70.2° (wide) to 4.1° (tele); covers large rooms and auditoriums from any standard mount position.
• 1/2.5-Type Exmor R Back-Illuminated CMOS Sensor - Delivers clean 1080p imaging in both bright and low-light commercial environments.
• Simultaneous 3G-SDI, HDMI, USB 3.0, and IP H.264 Outputs - All active at the same time via the OneLINK Bridge, enabling broadcast, display, conferencing, and streaming in a single deployment.
• Single-Cable HDBaseT Extension - Power, video, and control travel over one Cat-5e cable up to 230 ft (70m), or Cat-6 up to 328 ft (100m), from camera to OneLINK Bridge.
• Configurable Audio Matrix with AEC - Built-in acoustic echo cancellation for clear two-way audio in conferencing applications without a separate DSP unit.
• Remote IP Management - Web-based configuration and camera control accessible from any device on the network; no software installation required.
• Pan ±150°, Tilt +90° to -30° - Full room coverage from ceiling, wall, or furniture mount positions.
• 1080p/60 Maximum Resolution - Supports 1080p/60, 1080p/30, 1080i/60, and 720p/60 for broadcast-quality output.
• PoE+ (IEEE 802.3at) Camera Power - Camera receives power through the OneLINK Bridge via the HDBaseT cable, reducing AC outlet requirements at the camera location.
• Vaddio Elite Series - Commercial-grade build quality designed for permanent installation in demanding AV environments.

Typical Applications

• Large conference rooms and boardrooms
• Lecture halls and university classrooms
• Houses of worship
• Government and judicial spaces
• Auditoriums and multi-purpose rooms
• Broadcast studios requiring USB and SDI simultaneously
• Training rooms with remote streaming or recording requirements

Technical Specifications

Frequently Asked Questions

What is included in the 999-99630-200W system?
The system includes the RoboSHOT 30E HDBT PTZ camera, OneLINK Bridge interface, Cat-5e cable, OneLINK Bridge power supply, IR remote, and quick-start guide.

What control systems is the RoboSHOT 30E compatible with?
The camera supports IP (web interface), RS-232, and IR control. It integrates with Crestron, AMX, Extron, Biamp, and other third-party control processors using standard serial or IP commands.

How far can the camera be from the OneLINK Bridge?
Up to 230 ft (70m) using a single Cat-5e cable, or up to 328 ft (100m) with Cat-6. Power, video, and control all travel over this single cable run.

Which conferencing platforms does the USB 3.0 output support?
The USB 3.0 output from the OneLINK Bridge presents as a standard UVC device, making it compatible with Microsoft Teams, Zoom, Webex, Google Meet, and any other UC platform that supports USB cameras.

Can I use 3G-SDI, HDMI, and USB 3.0 outputs simultaneously?
Yes. The OneLINK Bridge provides all four outputs—3G-SDI, HDMI, USB 3.0, and IP H.264 streaming—simultaneously, allowing a single camera to feed a recorder, display, conferencing PC, and streaming encoder at the same time.

What warranty coverage does this product carry?
Vaddio cameras carry a 3-year limited warranty covering parts and labor. Contact Creation Networks for warranty support and RMA assistance.

Is a black version available?
Yes. The black version is available as RoboSHOT 30E HDBT OneLINK Bridge System (Black) - 999-99630-200.
