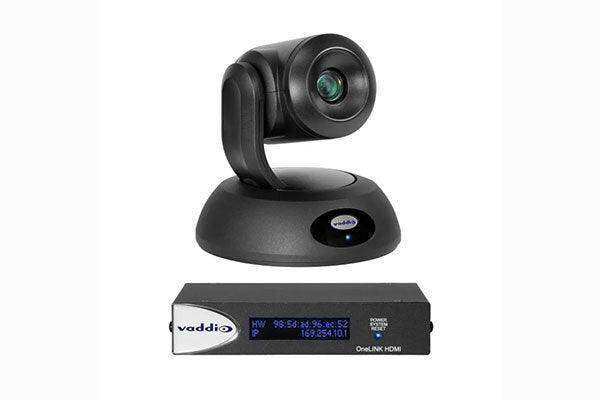

Vaddio RoboSHOT 30E HDBT OneLINK Bridge – HDBaseT PTZ Camera System

Product Overview

The Vaddio RoboSHOT 30E HDBT OneLINK Bridge is a commercial-grade HDBaseT PTZ camera system built for large conference rooms, lecture halls, and houses of worship. It pairs a 30x optical zoom PTZ camera with the OneLINK Bridge interface so a single Cat-5 run carries power, control, and video to the camera position. The result is a clean, integrator-friendly install that bridges a professional PTZ camera to USB 3.0 video conferencing platforms without a separate codec.

Product Description

RoboSHOT 30E delivers 1080p/60 video from a 1/2.5-type Exmor R CMOS sensor, with a 30x zoom range and a 70.2-degree wide horizontal field of view that covers wide rooms and distant subjects alike. Vaddio's tri-synchronous motion moves the pan, tilt, and zoom axes simultaneously for smooth, repeatable shots during live events and presentations. The included OneLINK Bridge transmits HDBaseT up to 328 feet over a single Cat-5 cable, consolidating power, RS-232 control, and IP onto one run to simplify rack-to-room cabling.

At the rack, the OneLINK Bridge breaks the signal out to HDMI, USB 3.0, and HD-SDI video outputs plus balanced audio inputs and outputs. The USB 3.0 stream connects the camera directly to soft-codec conferencing applications such as Zoom, Microsoft Teams, and Google Meet, while HDMI and HD-SDI feed displays, recorders, and streaming encoders. This makes the RoboSHOT 30E a flexible HDBaseT camera extension for AV system integration where both in-room display and remote collaboration are required. For comparable in-room PTZ options, see the RoboSHOT 12E HDBT OneLINK HDMI System, or browse the full Vaddio collection. The standalone OneLINK Bridge A-V interface receiver is available for existing HDBaseT camera deployments.

Key Features

• 30x Optical Zoom — Reaches distant subjects in large rooms and lecture halls without loss of detail.
• 1080p/60 HD Video — A 1/2.5-type Exmor R CMOS sensor produces clean high-definition images for streaming and conferencing.
• 70.2° Wide Field of View — Captures wide seating areas and presenters from a single camera position.
• Tri-Synchronous Motion — Pan, tilt, and zoom move together for smooth, accurate preset recall.
• HDBaseT Over Cat-5 — Sends video, power, and control up to 328 feet on one cable to cut installation cost.
• OneLINK Bridge Outputs — Provides HDMI, USB 3.0, and HD-SDI video plus balanced audio I/O at the rack.
• USB 3.0 Conferencing — Bridges the camera to Zoom, Microsoft Teams, and Google Meet without a dedicated codec.
• RS-232 and IP Control — Integrates with control systems and AV-over-IP workflows for centralized management.

Typical Applications

• Conference room
• Boardroom
• Auditorium
• Training room
• House of worship
• All-hands room

Technical Specifications

• Camera model: RoboSHOT 30E HDBT (999-99630-200)
• Image sensor: 1/2.5-type Exmor R CMOS
• Video resolution: 1080p/60
• Zoom: 30x optical
• Horizontal field of view: 70.2° (wide)
• Camera motion: Tri-synchronous pan / tilt / zoom
• Signal transmission: HDBaseT up to 328 ft (100 m) over Cat-5
• OneLINK Bridge outputs: HDMI, USB 3.0, HD-SDI; balanced audio in/out
• Control: RS-232, IP/Ethernet
• Color: Black

Specifications are drawn from the manufacturer (Legrand AV / Vaddio) and authorized distributor data. Confirm full electrical and mechanical specifications on the Vaddio datasheet before final system design.

Frequently Asked Questions

What conferencing platforms does the RoboSHOT 30E support? Through the OneLINK Bridge USB 3.0 output, the camera connects as a standard USB device to soft codecs including Zoom, Microsoft Teams, and Google Meet, as well as other UVC-compatible applications.

How far can the camera be placed from the rack? The OneLINK Bridge supports HDBaseT transmission up to 328 feet (100 m) over a single Cat-5 cable, carrying video, power, and control on that run.

Can it integrate with a control system? Yes. The system supports RS-232 and IP/Ethernet control, allowing integration with Crestron, Extron, AMX, and similar control platforms.

What video outputs are available for in-room displays and recording? The OneLINK Bridge provides HDMI and HD-SDI outputs alongside the USB 3.0 stream, so you can feed displays, recorders, or streaming encoders simultaneously.

Is audio supported through the system? The OneLINK Bridge includes balanced audio inputs and outputs, letting you embed room audio into the conferencing or recording signal path.

What warranty and support are available? Vaddio products are backed by the manufacturer's standard warranty; contact Creation Networks for current warranty terms, configuration guidance, and post-sale support.
