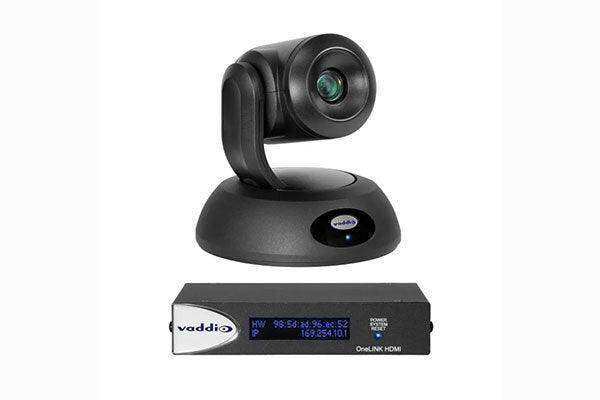

Vaddio RoboSHOT 12E HDBT - OneLINK HDMI PTZ Camera System (Black)

Product Overview

The Vaddio RoboSHOT 12E HDBT OneLINK HDMI System is a professional PTZ camera solution designed for conference rooms, training rooms, and classrooms requiring wide-angle coverage. This complete system pairs a 12x optical zoom PTZ camera with HDBaseT technology, enabling simplified single-cable installation over Cat-5e or Cat-6 cabling. Simultaneous HDBaseT, HDMI, and H.264 IP streaming outputs make it compatible with a broad range of AV systems and network streaming platforms. The included OneLINK HDMI Receiver extends video, Ethernet, RS-232, and power up to 328 ft (100 m) on a single cable run.

Product Description

The RoboSHOT 12E HDBT is part of Vaddio's Elite Series, built around a 1/2.5-type Exmor R CMOS sensor that delivers sharp 1080p/60 video even in low-light conditions. The 70.2° horizontal field of view makes this camera well-suited for smaller to medium-sized conference rooms and training spaces where wide coverage is a priority. Enhanced Wide Dynamic Range (WDR) compensates for uneven lighting environments such as rooms with windows or mixed light sources, ensuring consistent image quality across the frame.

Vaddio's Tri-Synchronous Motion drives all three camera axes simultaneously, producing smooth, natural pan, tilt, and zoom movement during presentations and meetings. IP streaming via RTSP or RTMP (H.264) allows live video distribution to platforms including YouTube, Livestream, and Zoom directly from the camera. The web-based management interface provides full camera control from any browser, supporting remote IT administration without requiring dedicated control hardware on-site.

The OneLINK HDMI Interface included in this bundle extends HD video, 100BaseT Ethernet, RS-232, and power over a single Cat-5e cable up to 230 ft (70 m) or Cat-6 up to 328 ft (100 m), dramatically reducing cabling complexity in new installations and AV system retrofits.

Key Features

• 12x Optical Zoom - Covers small to medium conference rooms and training spaces with sharp detail at full zoom range.
• 1/2.5-Type Exmor R CMOS Sensor - Delivers 1080p/60 video with improved low-light performance and high contrast.
• 70.2° Horizontal Field of View - Wide-angle coverage for full room capture without repositioning in smaller spaces.
• Simultaneous HDBaseT, HDMI, and IP Streaming - Outputs video to local displays and streams over the network concurrently, reducing integration complexity.
• Tri-Synchronous Motion - Pan, tilt, and zoom move simultaneously for smooth, broadcast-quality camera movement.
• Enhanced Wide Dynamic Range - Corrects for challenging lighting conditions including backlit windows and mixed-source environments.
• OneLINK HDMI Single-Cable Extension - Extends the camera up to 328 ft (100 m) over a single Cat-6 cable, eliminating separate power and signal runs.
• Web-Based IP Management - Full camera control and configuration via browser, compatible with remote management workflows.
• H.264 IP Streaming (RTSP/RTMP) - Supports streaming to major platforms for live event distribution from corporate, education, and house of worship environments.
• RS-232 and IP Control - VISCA and Pelco protocol support for integration with AMX, Crestron, Extron, and other third-party control systems.

Typical Applications

• Conference room video conferencing and AV integration
• Training room and corporate learning environments
• Classroom lecture capture and distance learning
• Government and municipal meeting spaces
• Multi-purpose rooms requiring flexible camera positioning
• House of worship live streaming deployments

Technical Specifications

Frequently Asked Questions

What control systems are compatible with the RoboSHOT 12E HDBT?
The camera supports RS-232 (VISCA protocol) and IP-based control, making it compatible with major control systems including AMX, Crestron, Extron, and Q-SYS.

How far can the OneLINK HDMI Receiver extend the camera signal?
The OneLINK HDMI Interface extends HD video, 100BaseT Ethernet, RS-232, and power up to 230 ft (70 m) over Cat-5e, or up to 328 ft (100 m) over Cat-6.

Can this camera stream to Zoom, YouTube, or Microsoft Teams?
Yes. The RoboSHOT 12E HDBT supports H.264 IP streaming via RTSP and RTMP, compatible with Zoom, YouTube, Livestream, and Facebook Live. For direct USB connectivity to Teams or Zoom, consider the Vaddio EasyIP or QUSB camera systems.

What is included in the OneLINK HDMI System bundle?
The system includes the RoboSHOT 12E HDBT camera, Thin Profile Wall Mount with hardware, Vaddio IR Remote Commander, OneLINK HDMI Interface, 48V power supply, EZCamera RS-232 Control Adapter, and Quick-Start Guides.

Is installation possible by a single technician?
Yes. The single-cable HDBaseT architecture simplifies installation significantly. Power, video, and control all travel over one Cat-5e/6 cable between the camera and the OneLINK HDMI Interface.

What warranty comes with this system?
Contact Creation Networks to confirm current Vaddio warranty terms. Vaddio products are supported by Legrand AV's manufacturer warranty program.
