Vaddio RoboSHOT 30E HDBT - 30x Bridge Express PTZ Camera System (Black)

Product Overview

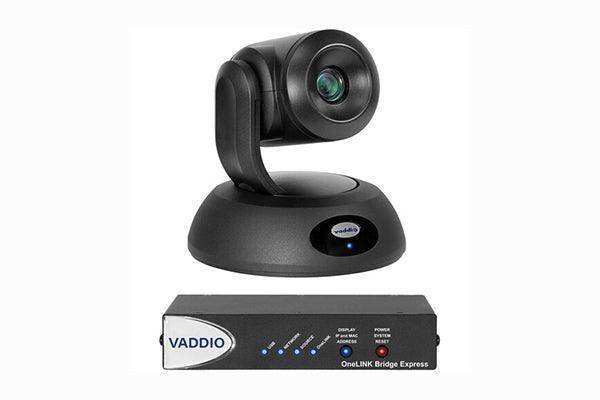

The Vaddio RoboSHOT 30E HDBT OneLINK Bridge Express PTZ Camera System (999-99630-270) delivers 30x optical zoom and simultaneous HDMI, USB 3.0, and IP H.264 streaming in a cost-effective HDBaseT PTZ camera bundle for large conference rooms, lecture halls, and houses of worship. Part of the Vaddio Elite Series, this system uses the OneLINK Bridge Express interface to extend power, video, and control over a single Cat-5e or Cat-6 cable, reducing installation complexity in permanent commercial AV deployments. Available in black to match darker room aesthetics and AV furniture.

Product Description

The RoboSHOT 30E HDBT camera uses a 1/2.5-type Exmor R back-illuminated CMOS sensor to capture 1080p/60 video across a horizontal field of view from 70.2° (wide) to 4.1° (tele). The 30x optical zoom gives integrators the flexibility to frame presenters, audiences, or whiteboards from any standard mount position in a large room.

The OneLINK Bridge Express provides simultaneous HDMI, USB 3.0, and IP H.264 streaming outputs. USB 3.0 connects directly to a conferencing PC as a standard UVC device, enabling plug-and-play use with Microsoft Teams, Zoom, Webex, and other UC platforms. IP H.264 streaming supports network recording and remote viewing. A configurable audio matrix with acoustic echo cancellation (AEC) is built in for standard conference audio management.

A single Cat-5e cable (up to 230 ft / 70m) or Cat-6 cable (up to 328 ft / 100m) carries power, video, and control between camera and Bridge Express. Remote IP management enables full configuration from any networked device. RS-232 control supports Crestron, AMX, Extron, and other room automation systems. For the version with 3G-SDI output, see the RoboSHOT 30E HDBT OneLINK Bridge System (Black).

Key Features

• 30x Optical Zoom - Horizontal field of view from 70.2° (wide) to 4.1° (tele); covers large conference rooms and auditoriums from any standard mount.
• 1/2.5-Type Exmor R Back-Illuminated CMOS Sensor - Clean 1080p/60 imaging in commercial lighting environments.
• Simultaneous HDMI, USB 3.0, and IP H.264 Outputs - All active via the OneLINK Bridge Express for display, conferencing PC connection, and network streaming.
• Single-Cable HDBaseT Extension - Power, video, and control over one Cat-5e cable up to 230 ft (70m) or Cat-6 up to 328 ft (100m).
• Configurable Audio Matrix with AEC - Built-in acoustic echo cancellation for clear conference audio without a separate DSP in most deployments.
• Remote IP Management - Web-based configuration and control from any networked device.
• Pan ±150°, Tilt +90° to -30° - Full room coverage from ceiling, wall, or furniture mount positions.
• 1080p/60 Maximum Resolution - Supports 1080p/60, 1080p/30, 1080i/60, and 720p/60.
• PoE+ Camera Power - Camera receives power through the HDBaseT cable via the OneLINK Bridge Express.
• Black Finish - Suited for installations requiring a low-profile or dark-colored camera to match room aesthetics.

Typical Applications

• Large conference rooms and boardrooms
• Lecture halls and university classrooms
• Houses of worship
• Government and institutional spaces
• Auditoriums and multi-purpose rooms
• Training rooms with USB conferencing and IP streaming

Technical Specifications

Frequently Asked Questions

What is included in the 999-99630-270 system?
The system includes the RoboSHOT 30E HDBT PTZ camera (black), OneLINK Bridge Express interface, Cat-5e cable, power supply, IR remote, and quick-start guide.

What is the difference between the Bridge Express and the full OneLINK Bridge?
The OneLINK Bridge Express provides HDMI, USB 3.0, and IP H.264 outputs. The full OneLINK Bridge additionally includes 3G-SDI output for broadcast and recording. If you need 3G-SDI, see the RoboSHOT 30E HDBT OneLINK Bridge System (Black).

What control systems is the RoboSHOT 30E compatible with?
The camera supports IP, RS-232, and IR control, integrating with Crestron, AMX, Extron, Biamp, and other room automation platforms.

How far can the camera be installed from the Bridge Express?
Up to 230 ft (70m) via Cat-5e, or up to 328 ft (100m) via Cat-6. Power, video, and control travel over a single cable run.

Which UC platforms does the USB 3.0 output support?
The USB 3.0 output presents as a standard UVC device, compatible with Microsoft Teams, Zoom, Webex, Google Meet, and any platform supporting USB cameras.

What warranty does this product carry?
Vaddio cameras carry a 3-year limited warranty on parts and labor. Contact Creation Networks for support and RMA coordination.
