Uniguest 796 IP Multi-Mux Gateway Blade

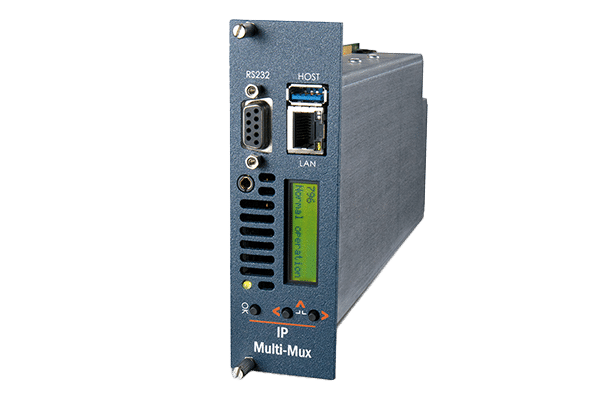

What is the Uniguest 796?
The Uniguest 796 is an IP Multi-Mux gateway blade for Uniguest MediaStar IPTV systems. It receives externally delivered IP TV channels and re-transmits them across the building network with AES encryption on up to 20 channels at once.
How does the Uniguest 796 work?
The 796 takes unicast or multicast UDP MPEG2 transport streams, such as channels from a cable or satellite provider delivered over IP, and redistributes them as encrypted unicast or multicast streams up to 600 Mbps. A browser-based GUI makes channel selection simple, and Media Manager integration keeps it managed with the rest of the headend. It is a hot-swappable blade that retains its settings. Pair it with LAN-Casters such as the 795 for RF sources. Creation Networks designs, installs and supports Uniguest IPTV systems nationwide; browse the full Uniguest lineup.
What are the key features of the Uniguest 796?
- Gateway for external IP-delivered TV
- Up to 600 Mbps in and out
- AES encryption on up to 20 channels
- MediaStar Media Manager integration
- Hot-swappable blade with retained settings
- Browser-based channel selection
Where is the Uniguest 796 typically used?
- Hotels
- Corporate campuses
- Government facilities
Technical Specifications
| Model | 796 |
| Part numbers | 796 |
| Input | Unicast or multicast UDP MPEG2 TS |
| Output | Unicast or multicast UDP MPEG2 TS, AES encrypted |
| Encryption | Up to 20 channels |
| Throughput | Up to 600 Mbps |
| Compatibility | Uniguest 780/782 players, MediaStar Portal Player 470/477 |
| Power | 17W |
| Dimensions | 4.1 x 12.9 x 22.5 cm |
| Weight | 0.5 kg (1.3 lb) |
| Datasheet | Download PDF |
Frequently Asked Questions
How do I get pricing on the Uniguest 796?
Uniguest headend hardware is quoted per project. Call (888) 230-3661 or email sales@creationnetworks.net.
Does the Uniguest 796 need a chassis?
Yes. It is a blade that installs in a Uniguest MediaStar rack chassis or single-blade housing.
Does Creation Networks install Uniguest IPTV?
Yes. We design, install and support Uniguest IPTV headends and players nationwide.
