Uniguest 795 ATSC/QAM Multi-Tuner LAN-Caster Gateway
What is the Uniguest 795?

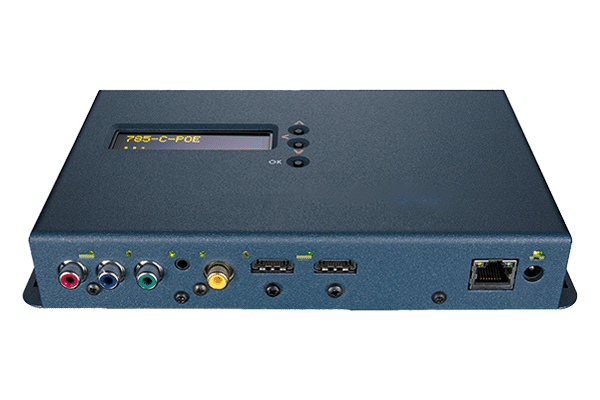

The Uniguest 795 is a multi-tuner ATSC and QAM LAN-Caster for Uniguest MediaStar IPTV systems. It is the North American headend gateway, streaming off-air ATSC and cable QAM channels from up to five RF multiplexes onto the IP network.
How does the Uniguest 795 work?
The 795 takes ATSC terrestrial or QAM cable RF on a 75-ohm F-type input and streams an unrestricted number of TV channels as IP from up to five multiplexes. Channels can be selected by multiplex or by name, original PIDs are kept, and streams can be encrypted and DSCP-tagged for QoS networks. Choose two to five tuner sections to match the channel lineup. For DVB markets, see the 793 LAN-Caster. Creation Networks designs, installs and supports Uniguest IPTV systems nationwide; browse the full Uniguest lineup.
What are the key features of the Uniguest 795?
- SD, HD and UHD (ATSC, QAM)
- Select channels by multiplex or name
- Up to 5 RF multiplexes
- Optional stream encryption
- DSCP tagged streams for QoS
- IP command pass-through and IR routing
Where is the Uniguest 795 typically used?
- Hotels
- Hospitals
- Corporate campuses
- Universities
Technical Specifications
| Model | 795 |
| Part numbers | 795-2-ATSC-QAM, 795-3-ATSC-QAM, 795-4-ATSC-QAM, 795-5-ATSC-QAM |
| RF input | 75 ohm F-type female, ATSC or QAM |
| Output | Unrestricted TV channel IP streams from up to 5 RF multiplexes |
| Encryption | Optional |
| QoS | DSCP tagging |
| Power | 17W |
| Dimensions | 129 x 41 x 225 mm |
| Weight | 0.5 kg (1.3 lb) |
| Datasheet | Download PDF |
Frequently Asked Questions
How do I get pricing on the Uniguest 795?
Uniguest headend hardware is quoted per project. Call (888) 230-3661 or email sales@creationnetworks.net.
Does the Uniguest 795 need a chassis?
Yes. It is a blade that installs in a Uniguest MediaStar rack chassis or single-blade housing.
Does Creation Networks install Uniguest IPTV?
Yes. We design, install and support Uniguest IPTV headends and players nationwide.
Browse the full Uniguest lineup, or call Creation Networks at (888) 230-3661 or email sales@creationnetworks.net.
