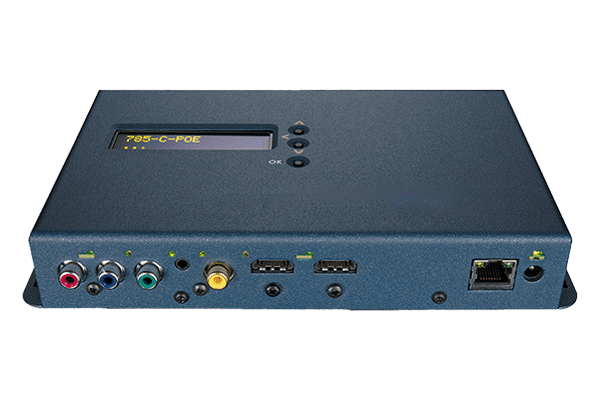

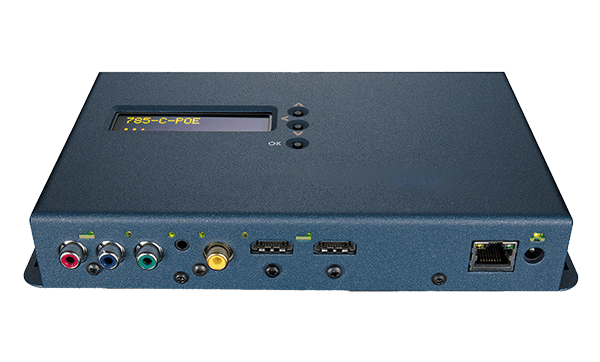

Uniguest 785 Standalone HD Encoder with SDI, HDMI & Component Inputs
Uniguest 785 Standalone HD Encoder with SDI, HDMI & Component Inputs - 785-C is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Uniguest 785 Standalone HD Encoder with SDI, HDMI & Component I...
What is the Uniguest 785?
The Uniguest 785 is a versatile standalone HD encoder that streams a video and audio signal in real time to an unlimited number of screens, PCs, tablets and smartphones across an IP network.
How does the Uniguest 785 work?
The 785 accepts composite, component, two HDMI and SDI inputs. It can lock to one input, scan and stream the first signal it finds, or act as an AV switch under third-party control. It encodes H.264 or MPEG-2 and streams multicast or unicast UDP transport streams, plus RTP for QuickTime. PoE models run from a single network cable; standard models use the included DC adapter. An OLED display and touch controls make local setup simple, and IP-to-RS232 pass-through and IR blasting let it control nearby source devices. For rack-mounted headends, see the 798 encoder blade. Creation Networks designs, installs and supports Uniguest IPTV systems nationwide; browse the full Uniguest lineup.
What are the key features of the Uniguest 785?
- Composite, component, 2 x HDMI and SDI inputs
- H.264 and MPEG-2 encoding
- 802.3af PoE on PoE models
- Auto input detection and programmable switching
- OLED display and touch controls
- IP to RS232 pass-through and IR blasting
- No moving parts
Where is the Uniguest 785 typically used?
- Corporate campuses
- Universities
- Government facilities
- Hospitals
Technical Specifications
| Model | 785 |
| Part numbers | 785-C, 785-C-PoE, 785-I, 785-I-PoE |
| Video inputs | CVBS, component RGB/YPbPr, 2 x HDMI 1.4 (up to 1080p60), SDI with loop-through |
| Audio | HDMI/SDI embedded PCM, analog 3.5 mm |
| Video encoding | H.264 MP@L4 1.5–12 Mbps; MPEG-2 MP@HL 1.5–15 Mbps |
| Audio encoding | MPEG-1 Layer 2, AAC LC |
| Streaming | Multicast/unicast UDP MPEG2-TS, multicast RTP |
| Network | RJ45 10/100, DSCP tagging, static or DHCP |
| Power | 7W via DC adapter, or 802.3af PoE Class 3 (PoE models) |
| Dimensions | 215 x 133 x 35 mm |
| Weight | 500 g (1.1 lb) |
| Datasheet | Download PDF |
Frequently Asked Questions
How do I get pricing on the Uniguest 785?
Uniguest IPTV hardware is quoted per project. Call (888) 230-3661 or email sales@creationnetworks.net.
Does Creation Networks install Uniguest IPTV?
Yes. We design, install and support Uniguest IPTV headends and players nationwide.
Browse the full Uniguest lineup, or call Creation Networks at (888) 230-3661 or email sales@creationnetworks.net.
