Barco 4K60 Tri-Combo Input Card HDMI 2.0/DP1.2/12G - R9004785B
Product Overview

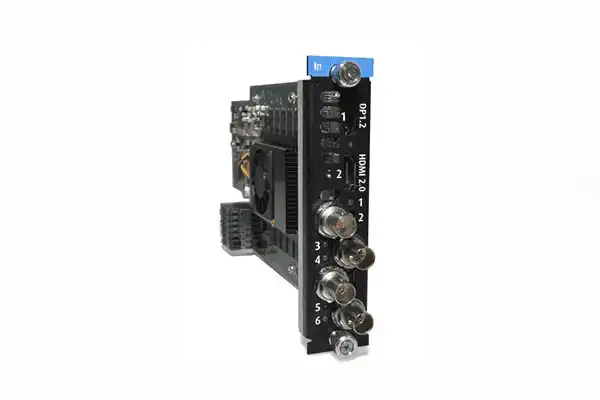

The Barco 4K60 Tri-Combo Input Card (R9004785B) provides mixed-format 4K ingest for Event Master processors through a single card carrying DisplayPort 1.2, HDMI 2.0, and 12G-SDI connectors. It supports single-cable 4K/UHD 60p input over any of the three interfaces, plus 4K/UHD 60p over 6G-SDI and 4x 3G-SDI for quad 4K/UHD or multiple HD SDI sources. The card is backward compatible with DisplayPort 1.1a and HDMI 1.4a. It installs in the I/O slots of Barco's E2, Ex, and S3 family processors.
Product Description
The 4K60 Tri-Combo Input Card R9004785B consolidates three connector types onto one Event Master input card: one DisplayPort 1.2, one HDMI 2.0, and four 12G-SDI (BNC) connectors. This lets a single card accept up to four HD, two Dual Link, or one 4K/UHD source, with single-cable 4K60p ingest across DisplayPort, HDMI, or 12G-SDI. Color depth covers 8-bit, 10-bit, and 12-bit (Dual Link or lower), with chroma sampling up to UHD 60p 4:4:4 8-bit on HDMI, UHD 60p 4:4:4 10-bit on DisplayPort, and UHD 60p 4:2:2 10-bit on 12G-SDI. EDID support and automatic input acquisition speed setup, and both HDMI and DisplayPort connections are HDCP compliant.
This card is an option for the S3-4K Jr, S3-4K, Ex, E2, and E2 Jr processors. It complements dedicated cards such as the HDMI 2.0 Quad Input Card (R9004791B) and the DisplayPort 1.2 Quad Input Card (R9004793B). Browse the full Barco collection for processors and I/O cards.
Key Features
- Tri-Format Input — One DisplayPort 1.2, one HDMI 2.0, and four 12G-SDI (BNC) connectors on a single card.
- Single-Cable 4K60p — Accepts 4K/UHD 60p over DisplayPort 1.2, HDMI 2.0, or 12G-SDI.
- Flexible SDI Modes — Supports 4K/UHD 60p over 6G-SDI and 4x 3G-SDI for quad 4K or multiple HD inputs.
- Per-Card Capacity — Up to 4x HD, 2x Dual Link, or 1x 4K/UHD per card.
- Deep Color Support — 8-bit, 10-bit, and 12-bit (Dual Link or lower) color depth.
- HDCP Compliant Inputs — HDCP 2.2 on HDMI and HDCP 1.x on DisplayPort.
- Backward Compatible — Works with DisplayPort 1.1a and HDMI 1.4a sources.
- Automatic Input Acquisition — EDID support for VESA, CEA, and custom timings with automatic configuration.
Typical Applications
- Live events and rental staging requiring mixed HDMI, DisplayPort, and SDI sources
- Single-card 4K60p ingest where slot count is limited
- Broadcast and control room production combining HD and 4K SDI feeds
- Productions standardizing inputs across the Barco Event Master platform
Technical Specifications
| Manufacturer | Barco |
| Manufacturer Part Number | R9004785B |
| Card Type | 4K60 Tri-Combo Input Card |
| Connectors | 1x DisplayPort 1.2; 1x HDMI 2.0; 4x 12G-SDI (BNC) |
| Resolution | Up to 2x 4096x2160 60p in 8L slot |
| Per-Card Capacity | 4x HD, 2x Dual Link, or 1x 4K/UHD |
| Color Depth | 8-bit, 10-bit, 12-bit (DL or lower) |
| Color Sampling | HDMI 2.0: UHD 60p 4:4:4 8-bit; DP1.2: UHD 60p 4:4:4 10-bit; 12G-SDI: UHD 60p 4:2:2 10-bit |
| HDCP | HDCP 2.2 on HDMI; HDCP 1.x on DisplayPort |
| Signal Capacity | HDMI 600 MHz; DisplayPort 660 MHz |
| Compatible Processors | S3-4K Jr, S3-4K, Ex, E2, E2 Jr |
Frequently Asked Questions
Which processors accept the R9004785B? The Barco S3-4K Jr, S3-4K, Ex, E2, and E2 Jr processors.
What input formats does it support? DisplayPort 1.2, HDMI 2.0, and 12G-SDI, with single-cable 4K/UHD 60p over any of the three.
How many sources can one card handle? Up to four HD, two Dual Link, or one 4K/UHD source per card.
Is it HDCP compliant? Yes, HDCP 2.2 on HDMI and HDCP 1.x on DisplayPort.
Is it backward compatible with older standards? Yes, with DisplayPort 1.1a and HDMI 1.4a sources.
