Barco DisplayPort 1.2 Quad Input Card for Select Barco Processors - R9004793B

Product Overview

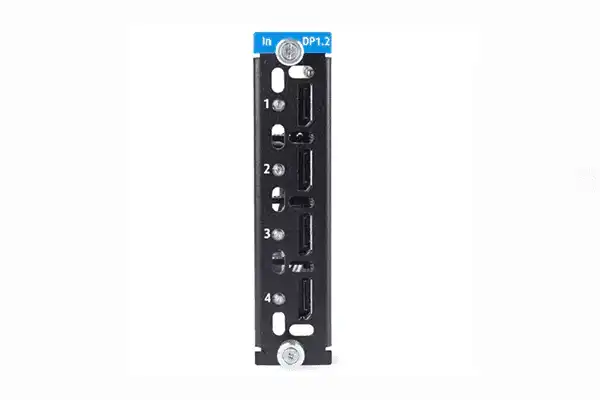

The Barco DisplayPort 1.2 Quad Input Card (R9004793B) adds four DisplayPort 1.2 connectors to compatible Event Master processors for high-resolution source ingest. The card supports two inputs at UHD 4K 60p, four inputs at 1200p 60 fps, or four inputs at UHD 4K 30 fps. It is HDCP 1.3 compliant and handles SMPTE, VESA, CEA, and custom resolutions. The card installs in the I/O slots of Barco's E2 and S3 family processors.

Product Description

The DisplayPort 1.2 Quad Input Card R9004793B accepts up to four DisplayPort sources into a Barco Event Master processor for scaling, switching, and compositing. Depending on the resolution required, the card ingests two DisplayPort inputs at UHD 4K 60p, four inputs at 1200p 60 fps, or four inputs at UHD 4K 30 fps. Support for SMPTE, VESA, CEA, and custom timings makes it suitable for mixed computer and media sources, and HDCP 1.3 compliance covers protected content.

This card is an accessory for Barco's E2, E2 Generation 2, E2 Jr, E2 Tri-Combo, Ex, Ex Tri-Combo, S3 Standalone, S3 Tri-Combo, S3-4K, and S3-4K Jr processors. It pairs with the matching DisplayPort 1.2 Quad Output Card (R9004765B) and the HDMI 2.0 Quad Input Card (R9004791B). Browse the full Barco collection for processors and I/O cards.

Key Features

• 4x DisplayPort 1.2 Connectors — Four DisplayPort inputs in a single Event Master card slot.
• UHD 4K 60p Input — Supports two inputs at UHD 4K 60p for high-resolution sources.
• Flexible Input Modes — Four inputs at 1200p 60 fps or four at UHD 4K 30 fps as alternatives.
• HDCP 1.3 Compliant — Accepts protected content from compliant sources.
• Broad Resolution Support — Handles SMPTE, VESA, CEA, and custom resolutions.
• Wide Processor Compatibility — Works across the E2, Ex, and S3 Event Master families.

Typical Applications

• Live events and rental staging built on Barco Event Master processors
• Computer and media source ingest for general sessions and keynotes
• Broadcast and control room production requiring DisplayPort input
• Mixed-resolution productions needing SMPTE, VESA, and custom timings

Technical Specifications

Frequently Asked Questions

Which processors accept the R9004793B? Barco's E2, E2 Generation 2, E2 Jr, E2 Tri-Combo, Ex, Ex Tri-Combo, S3 Standalone, S3 Tri-Combo, S3-4K, and S3-4K Jr processors.

How many inputs does it provide? Four DisplayPort 1.2 connectors, configurable as two UHD 4K 60p inputs, four 1200p 60 fps inputs, or four UHD 4K 30 fps inputs.

Is it HDCP compliant? Yes, the card is HDCP 1.3 compliant.

What resolutions are supported? SMPTE, VESA, CEA, and custom resolutions.

Is there a matching output card? Yes, the DisplayPort 1.2 Quad Output Card (R9004765B).
