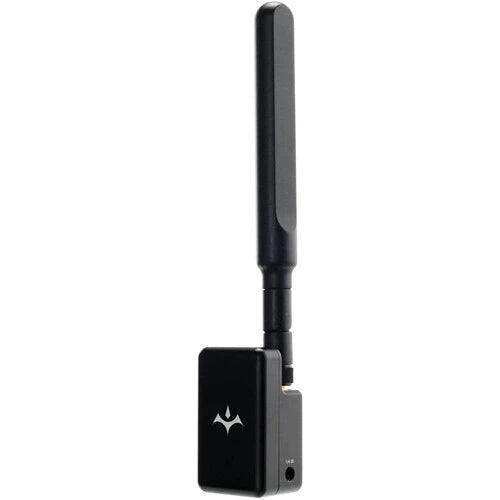

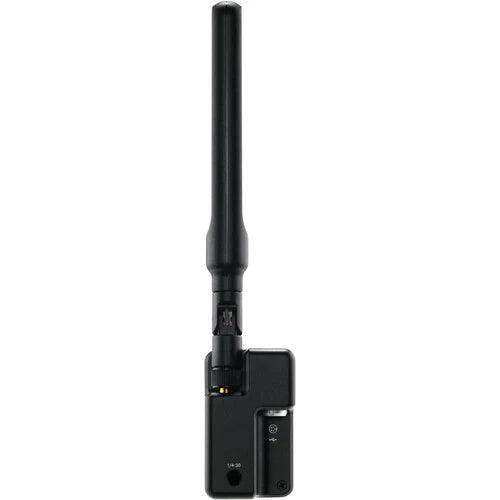

Teradek Node II LTE/4G/3G Multi-Mode Modem Module (USB Type-A Cable)

Product Overview

The Teradek Node II LTE/4G/3G Multi-Mode Modem Module (USB Type-A) is a professional cellular modem module that adds LTE, 4G, and 3G connectivity to compatible Teradek bonding encoders and streaming hardware. Connecting via USB Type-A to supported devices including the Bond series backpack encoders, the Node II expands cellular bonding capacity for increased uplink bandwidth and connection redundancy during live streaming deployments.

Product Description

The Node II USB-A modem module plugs into compatible Teradek hardware USB Type-A ports and provides an additional LTE/4G/3G cellular connection for bonded streaming. Multiple Node II modules can be added to supported devices to increase the number of bonded cellular connections, aggregating bandwidth from multiple carriers simultaneously. The module is managed through Teradek Core and the device’s built-in bonding engine, appearing as an additional network interface.

Node II modules accept standard nano-SIM cards (sold separately) from any compatible carrier, supporting LTE, 4G, and 3G networks for broad coverage. For compatible Teradek hardware, SIM card guidance, and Databucket cellular data plans, visit creationnetworks.net.

Key Features

• LTE / 4G / 3G Multi-Mode — Supports current and legacy cellular networks for broad geographic coverage.
• USB Type-A Connection — Connects to compatible Teradek hardware USB-A ports.
• Expands Bonded Cellular Capacity — Additional cellular connection for increased bandwidth and redundancy.
• Nano-SIM Compatible — Standard nano-SIM cards from any compatible carrier (SIM not included).
• Teradek Core Managed — Monitored and managed through Teradek Core cloud platform.
• Multiple Modules Supported — Add multiple Node II modules to supported devices for higher bonded bandwidth.

Typical Applications

• Expanding cellular bonding capacity on Bond series backpack encoders
• Adding additional LTE connections to Prism Mobile 857 encoders
• Live news and ENG field contribution with higher bonded uplink
• Live event streaming from locations without fixed internet infrastructure

Technical Specifications

Frequently Asked Questions

What is the difference between the USB Type-A and USB Type-C Node II modules?

The two versions differ only in the USB connector type — USB-A or USB-C — to match the port type on the compatible Teradek hardware. The cellular performance and feature set are identical. Check your Teradek hardware documentation to confirm which port type is required.

What Teradek hardware is compatible with the Node II USB-A module?

Compatible with Teradek hardware that has USB Type-A Node II ports, including the Bond series backpack encoders and Prism Mobile 857 devices with USB-A Node II slots. Browse compatible hardware at creationnetworks.net.

How many Node II modules can be added to one device?

The maximum depends on the hardware model. Refer to the specific device documentation or contact Creation Networks for guidance.

Are SIM cards included?

No. Nano-SIM cards from your preferred carrier must be sourced separately.

Can Teradek Databucket data plans be used with this module?

Yes. Teradek Databucket cellular data plans are compatible with Node II-equipped devices. Browse Databucket plans at creationnetworks.net.

What warranty applies?

Teradek standard limited warranty. Contact Creation Networks for registration and support.

Key Specifications

Published specifications for the Teradek Node II modem module, part number 10-0028 (USB Type-A cable version).

Cellular Bands, Carriers & US vs International Use

The Node II ships in a global-band configuration rather than separate US and international hardware, and Teradek states it has been tested with over 100 carriers. In the United States it works on Verizon, AT&T and T-Mobile, and it is Verizon-certified for US business accounts. It is also compatible with the Teradek Data eSIM.

For US crews: B2, B4, B5, B12, B13, B14, B25, B26, B30 and B66 cover the main Verizon, AT&T and T-Mobile LTE deployments, including Band 14 FirstNet spectrum. Band 41 covers T-Mobile's TDD capacity layer.

Taking the module abroad? Teradek documents four things to plan for: the SIM needs a data or mobile-hotspot plan (voice-only plans will not work); some countries require the modem's IMEI to be registered on a carrier allowlist first, and carriers in Chile and other South American markets will let an unregistered device run for roughly 30 days before cutting service; the APN may have to be entered manually through the encoder web UI where auto-detection is unsupported; and where a carrier hands out IPv6 only, you enable xlat464 in the Generic MBN profile so the encoder sees an IPv4 connection.

Cable Versions & Part Numbers

The Node II hardware is the same across versions - only the cable that connects it to the host changes, so buy the version matching the port on your encoder.

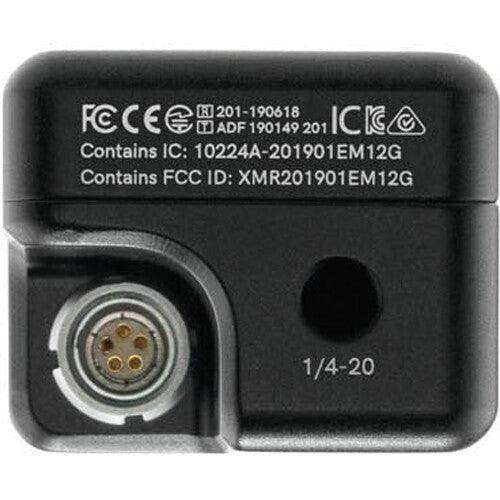

Teradek also offers a 5-pin locking cable option for hosts that use a 5-pin Lemo-style connector instead of USB. If you are unsure which cable your encoder needs, contact Creation Networks with the model and we will confirm before shipping. The USB Type-C version is available here: Teradek Node II LTE/4G/3G Multi-Mode Modem Module (USB Type-C Cable).

Compatible Teradek Hosts

Teradek lists the Node II as compatible with the following hardware. Confirm the physical port type on your unit before ordering, since that determines whether you need the USB Type-A, USB Type-C or 5-pin cable version.

• VidiU Go and VidiU X - compact bonding streaming encoders
• Bond 600 and 700 Series - backpack bonding encoders, including Bond 659 AVC and Bond 759 HEVC
• Cube 600 and 700 Series - camera-mount encoders and decoders
• Prism Mobile - uses the USB Type-A port, so this 10-0028 version is the match
• Prism Flex and Prism Flex Mk II - portable HEVC/AVC encoders
• Serv and Serv 4K - on-set monitoring streaming
• Wave - live streaming encoder
• Link AX - wireless networking
• Windows and Linux computers - as a standalone modem

How Bonding Works & How Many Modules You Need

Bonding aggregates several independent internet paths into one logical uplink, so a single stream is split across every connected modem and reassembled at the receiving end. Adding Node II modules does two things at once: it raises total available uplink bandwidth, and it removes single points of failure, because losing one carrier degrades the stream instead of dropping it.

• Use different carriers. Two SIMs on the same network share the same congested tower and the same outage. Mixing Verizon, AT&T and T-Mobile SIMs across modules is what actually buys resilience at a crowded venue.
• Module count is set by the host. Bond 700 Series backpacks are commonly configured with four Node II modules; smaller encoders take fewer. Check your encoder's documentation or ask us for the supported count on your exact model.
• Bandwidth headroom. Because bonded throughput fluctuates with cell conditions, field practice is to configure the encoder bitrate well below the sum of the measured uplink speeds, then let the bonding engine absorb the variation.
• SIMs are not included. Source data-capable SIMs separately, or use the Teradek Data eSIM.

What's in the Box

• 1x Teradek Node II modem module
• 1x USB Type-A modem cable
• 2x antennas (wide band whip tilt and wide band penta straight)
• Nano SIM adapter
• Micro SIM adapter
• 1-year limited warranty

Documentation & Resources

• Teradek Node II compatibility - full band list, APN and carrier requirements
• Teradek Node II Quick Start Guide
• MBN Profile Support for Node II (including xlat464 for IPv6-only carriers)
• Teradek Node Modems User Guide (complete manual)
• Teradek Node II product page
• Teradek downloads and firmware

More Frequently Asked Questions

Do I need the USB Type-A or the USB Type-C version?
Match the port on your encoder. This item, part number 10-0028, is the USB Type-A version and is the correct choice for hosts such as Prism Mobile, which uses a USB Type-A port. If your host has USB Type-C, order part number 10-0028-C instead. The modem itself is identical.

Does the Node II work on Verizon, AT&T and T-Mobile?
Yes. All three US networks are supported, and the Node II is Verizon-certified for US business accounts. Its band list covers B2, B4, B5, B12, B13, B14, B25, B26, B30, B41 and B66, which spans the main US LTE deployments including FirstNet Band 14.

Is there a separate US version and international version?
No. The Node II is a single global-band modem tested with over 100 carriers worldwide, so the same hardware travels. What changes abroad is the paperwork: some countries require IMEI registration, some carriers need a manual APN, and IPv6-only carriers need xlat464 enabled.

Does it come with a SIM card?
No SIM is included. You supply a data-capable SIM, or use the Teradek Data eSIM. Nano and micro SIM adapters are in the box, and the module has two SIM slots with one active at a time.

How fast is it?
It is a Cat. 12 LTE modem rated up to 480 Mbps download and 150 Mbps upload, with up to 3x carrier aggregation. Real-world throughput depends on the carrier, tower load and location - for live streaming, the upload figure is the one that matters.

How many Node II modules can I add to my encoder?
That is set by the host device, not the module. Bond 700 Series backpacks are frequently supplied with four Node II modules; smaller encoders such as VidiU Go take fewer. Send us your model and we will confirm the supported count.

Should all my SIMs be from the same carrier?
No - deliberately mix them. Bonding only protects you against congestion and outages if the modules sit on different networks, so a Verizon, AT&T and T-Mobile spread outperforms three SIMs from one carrier at a packed venue.

Can I use the Node II with a laptop instead of an encoder?
Yes. Teradek lists Windows and Linux computers among supported hosts, so the module can serve as a standalone high-performance cellular modem.
