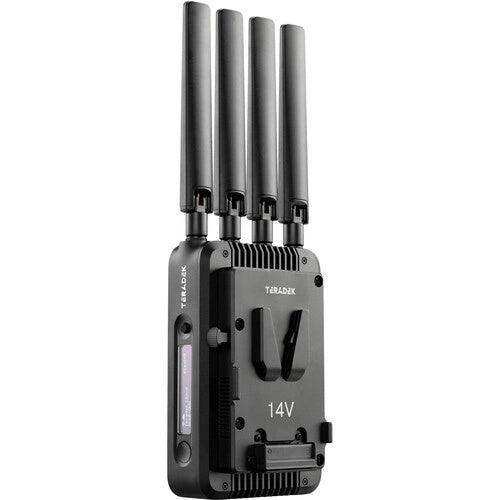

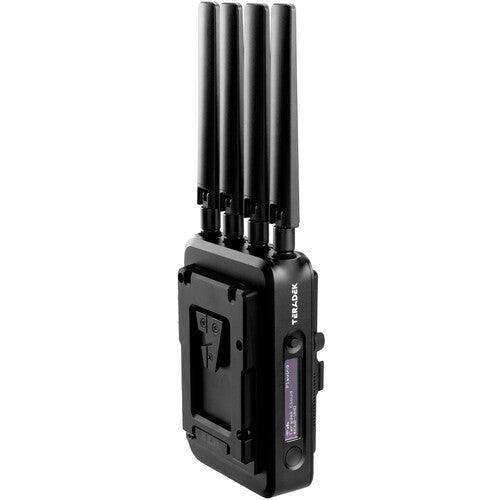

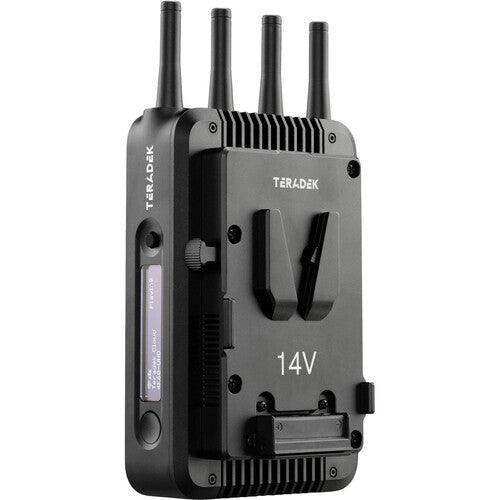

Teradek Prism Mobile 857 HEVC/AVC Video Encoder with Dual 4G LTE (V-Mount)
Teradek Prism Mobile 857 HEVC/AVC Video Encoder with Dual 4G LTE (V-Mount) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek Prism Mobile 857 HEVC/AVC Video Encoder with Dual 4G LTE (V...
Product Overview
The Teradek Prism Mobile 857 HEVC/AVC Video Encoder with Dual 4G LTE (V-Mount) is a professional portable video encoder designed for live streaming and broadcast contribution over bonded cellular networks. Supporting both H.265 HEVC and H.264 AVC encoding up to 4K, with dual integrated 4G LTE modems for bonded cellular streaming, and a V-Mount battery plate for extended field operation, the Prism Mobile 857 is purpose-built for ENG, live news, sports broadcasting, and remote contribution workflows where fixed internet infrastructure is unavailable.
Product Description
The Prism Mobile 857 V-Mount accepts 12G-SDI and HDMI 2.0 inputs and encodes video using H.265 HEVC or H.264 AVC at bitrates suitable for broadcast-quality streaming. The dual integrated 4G LTE modems bond two cellular connections simultaneously — maximizing available uplink bandwidth and providing failover redundancy when one carrier experiences congestion or signal loss. A 12G-SDI loop output passes signal through to local monitoring equipment while the encoder streams upstream.
The V-Mount battery plate enables hours of untethered field operation on standard professional V-mount batteries. Teradek Core cloud management provides remote monitoring, stream management, and encoder configuration from broadcast control rooms. The unit supports SRT, RTMP, and BGAN streaming protocols, integrating with a wide range of CDN and broadcast contribution platforms. For compatible SIM cards, modem accessories, and production hardware, visit creationnetworks.net.
Key Features
- H.265 HEVC and H.264 AVC Encoding — Dual-codec support for broadcast-quality streaming at efficient bitrates.
- Dual Integrated 4G LTE Modems — Bonds two cellular connections for maximum uplink bandwidth and reliability.
- 4K Video Support — Encodes up to 4K resolution for future-proof broadcast contribution.
- 12G-SDI and HDMI 2.0 Inputs — Accepts camera and production sources directly.
- 12G-SDI Loop Output — Pass-through for local monitoring while streaming.
- V-Mount Battery Plate — Integrated for extended battery-powered field deployment.
- Teradek Core Management — Remote monitoring and configuration from broadcast control rooms.
- SRT and RTMP Streaming — Compatible with CDN and broadcast contribution platforms.
Typical Applications
- Live news and ENG field contribution
- Sports broadcasting from remote venues
- Live event streaming without fixed internet infrastructure
- Government and public safety live video reporting
- Corporate communications remote streaming
- House of worship outdoor event streaming
Technical Specifications
| Specification | Value |
|---|---|
| Model | Prism Mobile 857 V-Mount |
| Video Codecs | H.265 HEVC, H.264 AVC |
| Max Encoding Resolution | Up to 4K |
| Video Inputs | 12G-SDI, HDMI 2.0 |
| Loop Output | 12G-SDI |
| LTE Modems | Dual integrated 4G LTE |
| Network Interfaces | Dual 4G LTE, Wi-Fi, Ethernet |
| Streaming Protocols | SRT, RTMP, BGAN |
| Battery Mount | V-Mount |
| Management | Teradek Core cloud platform |
Frequently Asked Questions
- How many cellular connections does the Prism Mobile 857 bond?
- The Prism Mobile 857 includes dual integrated 4G LTE modems that bond two cellular connections simultaneously. Additional Node II modem modules can be added for increased bonding capacity on compatible configurations.
- Does the Prism Mobile 857 require a Teradek Core subscription?
- Teradek Core is required for remote management and monitoring. Core subscriptions are available at creationnetworks.net.
- What SIM cards are compatible?
- Standard 4G LTE nano-SIM cards from major carriers. SIM cards are not included and must be sourced separately.
- Does the encoder support HDR streaming?
- The Prism Mobile 857 accepts HDR signals from cameras. Verify HDR end-to-end streaming support with your delivery platform and decoder configuration.
- What is the warranty on the Prism Mobile 857?
- Teradek provides a standard limited warranty. Contact Creation Networks for warranty registration and extended service options.
