ViewSonic TD2210 – 22-Inch 10-Point IR Touch Monitor - Discontinued

Product Overview

The ViewSonic TD2210 is a 22-inch (21.5" viewable) Full HD single-point resistive touch monitor suited to retail POS counters, industrial control stations, and any commercial environment where touch must respond to non-conductive inputs. Its TN panel delivers a 5ms response time and 60Hz refresh rate for responsive UI interaction, while the pressure-based resistive touch surface works with bare fingers, gloved hands, or a standard stylus. VGA and DVI-I inputs provide broad compatibility with legacy and current-generation POS computers and thin clients.

Product Description

The TD2210 is a purpose-built commercial resistive touch monitor for environments where PCAP touch is impractical due to gloves, debris, or stylus requirements. The sealed resistive surface provides resistance to dust and minor liquid exposure, which is a practical advantage in food service, retail stockrooms, and light industrial settings. The TN panel produces a 1,000:1 static contrast ratio and 20M:1 dynamic contrast ratio. With 170° horizontal and 160° vertical viewing angles, it maintains acceptable image quality for straight-on and near-straight-on viewing typical of cashier and POS counter deployments. One USB-A port and one USB-B uplink port support peripheral connectivity. The tilt stand adjusts from 5° to 20°. ENERGY STAR and EPEAT certified. Backed by a three-year limited warranty. macOS users can add touch support via ViewSonic's vTouch driver.

Key Features

• 22" Single-Point Resistive Touch Monitor — Pressure-based touch technology works with gloved hands, styluses, and any pointed object.
• 5ms Response Time — Fast panel response for cashier terminals and interactive POS interfaces requiring crisp UI transitions.
• Dust and Water Resistant Surface — Sealed resistive layer suitable for retail, food service, and light industrial environments.

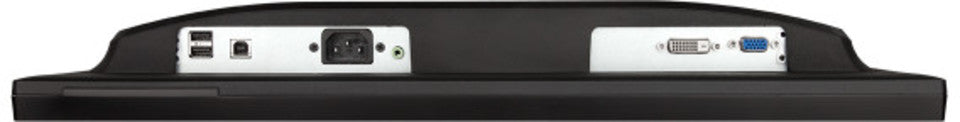

• VGA and DVI-I Inputs — Compatible with the broadest range of commercial POS hardware, including legacy systems that do not provide HDMI output.
• 1× USB-A and 1× USB-B Ports — Connects a peripheral such as a barcode scanner or signature pad to the display hub.

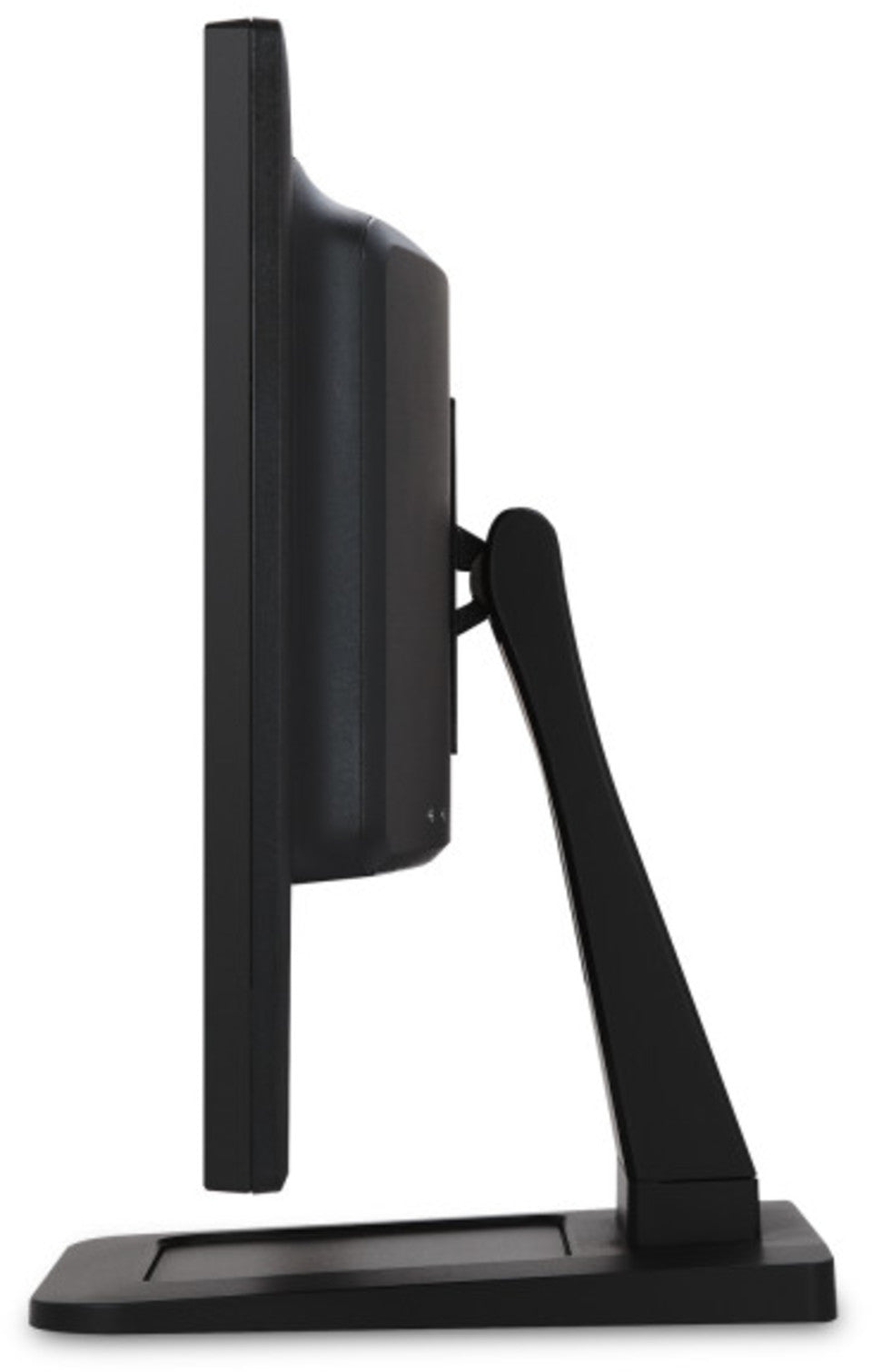

• Compact Tilt Stand — 5° to 20° tilt range, appropriate for upright counter-mounted POS use.
• VESA 100×100 Mount — Supports pole mounts and wall brackets for POS counter installations.
• ENERGY STAR / EPEAT Certified — Meets commercial procurement environmental requirements.

Typical Applications

• Retail point-of-sale and cashier terminals
• Food service order entry stations
• Light industrial and manufacturing control interfaces
• Healthcare clinical workstations requiring gloved-hand input
• Government facility self-service kiosks

Technical Specifications

Frequently Asked Questions

Q: Does the TD2210 support HDMI input?
A: No. The TD2210 provides VGA and DVI-I inputs only. For HDMI connectivity, consider the TD2211, which adds HDMI 1.4 alongside DVI-D and VGA.

Q: What is the difference between the TD2210 and TD2211?
A: The TD2211 adds HDMI 1.4 connectivity and uses an MVA panel with higher contrast (3,000:1 vs 1,000:1) and wider viewing angles. The TD2210 uses a TN panel with faster 5ms response time and is suited to environments with legacy VGA/DVI-only source hardware.

Q: Can this display be used with a USB barcode scanner?
A: Yes. The USB-A port on the display hub supports USB peripherals such as barcode scanners, signature pads, or customer-facing displays.

Q: Is the TD2210 single-touch only?
A: Yes. The resistive touch layer registers one contact point at a time. Multi-touch gestures are not supported.

Q: Does it work with macOS?
A: Touch support on macOS is available via ViewSonic's vTouch driver. iOS and iPadOS are not supported.

Q: What cables are included?
A: Power cable, VGA cable, DVI cable, USB 2.0 cable, and audio cable.

Q: Is the TD2210 suitable for outdoor or semi-outdoor kiosk enclosures?
A: No. The TD2210 is rated for indoor commercial environments only (0°C to 40°C operating temperature). For outdoor or semi-outdoor use, specify a display with an appropriate IP-rated enclosure.

Replacement Product: TD2211
