ViewSonic TD2211 – 22-Inch Single Touch FHD IPS Display

Product Overview

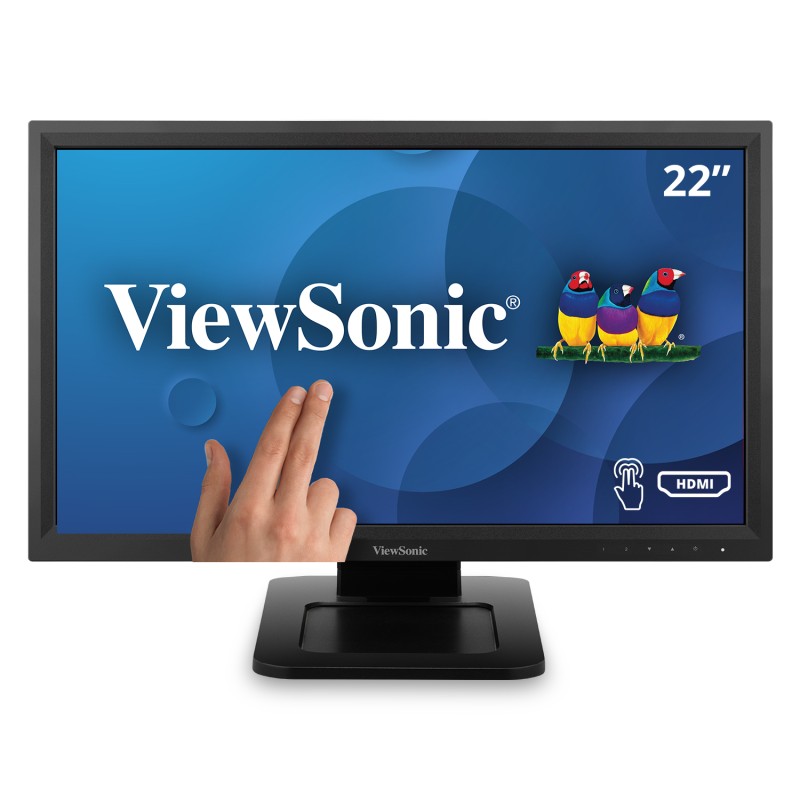

The ViewSonic TD2211 is a 22-inch (21.5" viewable) single-point resistive touch monitor built for commercial POS, retail, and industrial environments where touch input must function regardless of the type of contact — bare finger, gloved hand, or stylus. Resistive touch technology is pressure-based rather than conductance-based, making it effective in environments where PCAP or IR touch would be impractical. The MVA panel delivers a 20M:1 dynamic contrast ratio and 75Hz refresh rate, with HDMI, DVI-D, and VGA connectivity covering a wide range of commercial source equipment.

Product Description

The TD2211 is a single-point resistive touch monitor designed for settings where gloves, styluses, or non-conductive inputs are common — including retail cashier stations, food service environments, manufacturing floors, and medical carts. The pressure-sensing resistive layer activates with any physical pressure, not electrical conductance, so it works equally well with latex gloves, a pen, or a bare fingernail. The MVA SuperClear panel provides consistent image quality at wide angles (178° horizontal and vertical) and a 3,000:1 static contrast ratio. At 75Hz, the display provides smooth rendering of dynamic UI elements and video content in interactive kiosk applications. Connectivity includes HDMI 1.4, DVI-D, VGA, 2× USB-A, and 1× USB-B uplink, along with 3.5mm audio in and out. The included tilt stand adjusts from 5° to 20°. ENERGY STAR and EPEAT Silver certified. Three-year limited warranty on parts, labor, and backlight. macOS touch support is available via ViewSonic's vTouch driver.

Key Features

• 22" Single-Point Resistive Touch Monitor — Pressure-based touch works with any input: bare fingers, gloved hands, styluses, or any pointed object.
• MVA SuperClear Panel — 178° horizontal and vertical viewing angles with 3,000:1 static contrast and 20M:1 dynamic contrast.
• 75Hz Refresh Rate — Smoother display rendering compared to standard 60Hz touch monitors in this category.

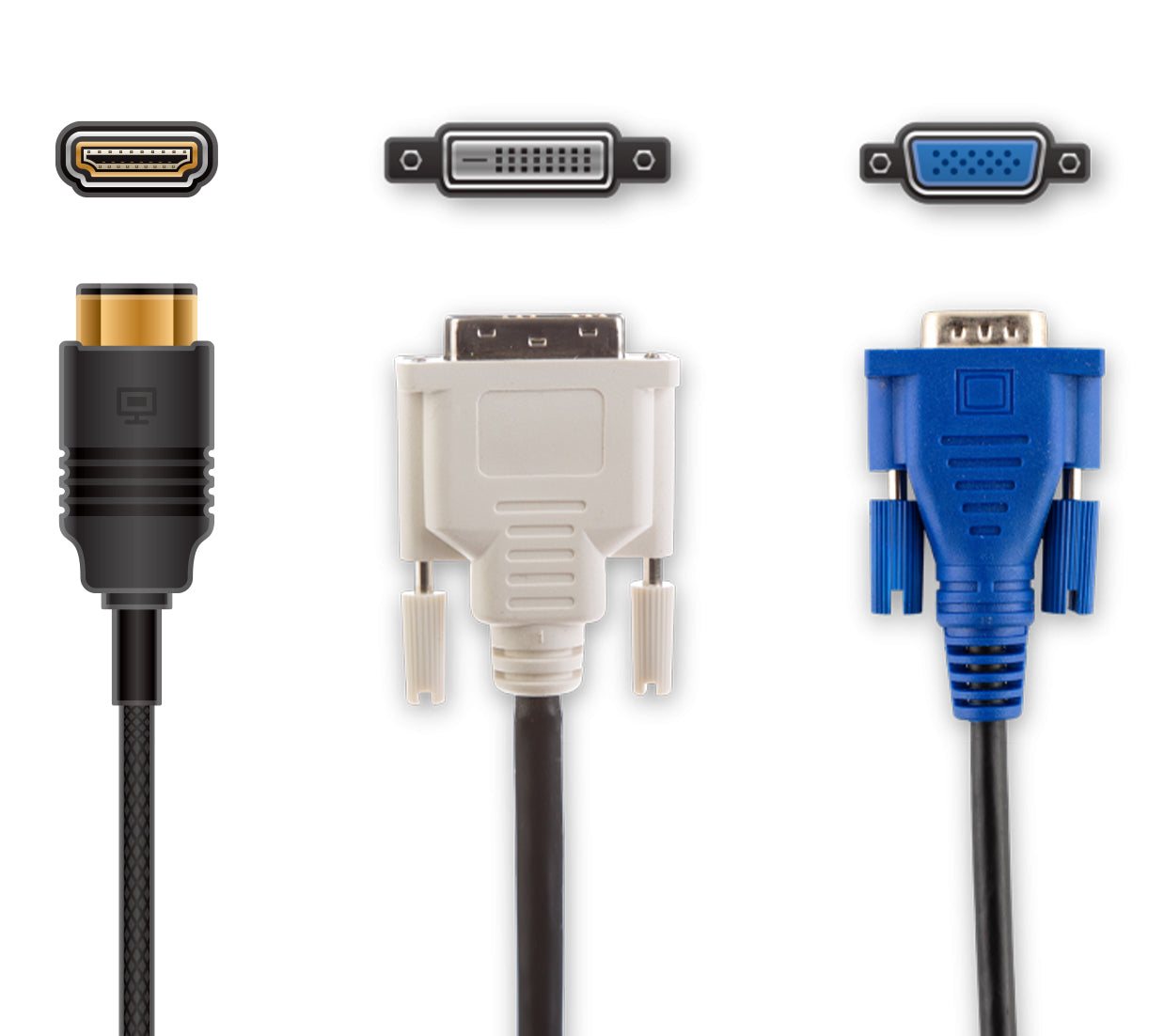

• HDMI, DVI-D, and VGA Inputs — Compatible with modern and legacy commercial POS hardware and thin clients.
• Dust and Water Resistant Touch Surface — Resistive layer is sealed against dust and water ingress, suitable for food service and light industrial use.
• USB Hub (2× USB-A, 1× USB-B) — Connects peripherals such as barcode scanners, receipt printers, or customer-facing displays.
• VESA 100×100 Mount — Supports wall mounting and pole-mount configurations for POS counters.
• EPEAT Silver / ENERGY STAR Certified — Meets commercial and government procurement sustainability requirements.

Typical Applications

• Retail point-of-sale terminals
• Food service order entry and cashier stations
• Manufacturing and light industrial control interfaces
• Healthcare clinical workstations and medication carts
• Government facility self-service terminals

Technical Specifications

Frequently Asked Questions

Q: What is resistive touch and when should I specify it over PCAP or IR?
A: Resistive touch uses two conductive layers pressed together by physical pressure. It activates with any object that applies force — fingers, gloved hands, styluses, pens, or any pointed item. Specify resistive when users wear non-conductive gloves, when the environment is dusty or wet, or when a passive stylus is required for precise input. PCAP offers better multi-touch but requires conductive input.

Q: Is the TD2211 limited to a single touch point?
A: Yes. The resistive touch layer on the TD2211 registers one touch point at a time. For multi-touch applications, consider a PCAP or IR touch model.

Q: Does the TD2211 work with macOS?
A: Touch functionality is available on macOS via ViewSonic's vTouch driver (Intel and M1 processors, macOS Monterey compatible). iOS and iPadOS are not supported.

Q: What is the difference between the TD2211 and TD2210?
A: Both are 22-inch single-point resistive monitors. The TD2211 adds HDMI connectivity and uses an MVA panel with higher contrast; the TD2210 uses a TN panel with VGA and DVI-I only.

Q: Can the TD2211 be pole-mounted for a POS counter installation?
A: Yes. The 100×100mm VESA pattern supports standard POS pole mounts and monitor arms when the display is removed from its tilt stand.

Q: Is the touch surface easy to clean?
A: The resistive surface is sealed against dust and minor liquid exposure. Wipe with a soft, lightly dampened cloth. Avoid harsh solvents that may damage the touch coating.

Q: What cables are included in the box?
A: Power cable, HDMI cable, USB Type A/B cable, and audio cable.
