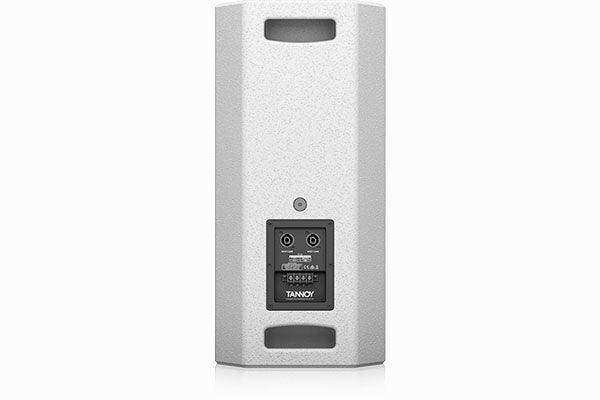

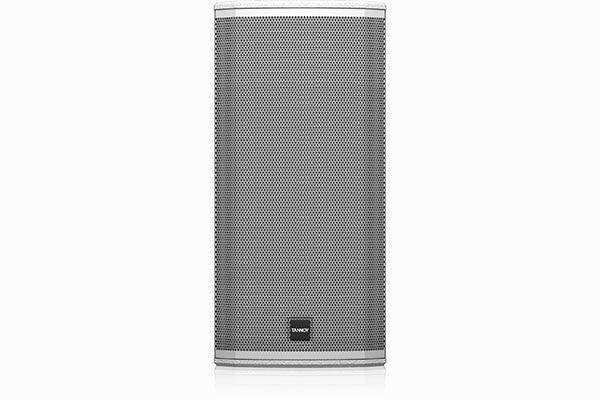

Tannoy VX 8.2-WH Dual Concentric Full Range Loudspeaker (White) - TA-VX8.2-WH
Tannoy VX 8.2-WH Dual Concentric Full Range Loudspeaker (White) - TA-VX8.2-WH is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*
Free Ground Shipping over $250.00
Tannoy VX 8.2-WH Dual Concentric Full Range Loudspeaker (White) - T...
VX 8.2-WH
The VX 8.2-WH is a new concept for this type of device, adding new capabilities to the range with its exceptional acoustic clarity, definition and all round acoustical performance. Boasting an exceptional performance-to-size ratio, VX 8.2 provides a compact, yet punchy and sonically articulate solution for medium scale performance sound reinforcement as well as high performance speech reproduction where clarity and vocal character are paramount. The versatile twin driver design and mounting options also make the VX 8.2-WH, due to acoustic matching with the wider range of VX Series models, perfectly capable components within much larger installations.
Features
-
Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
-
200 Watts continuous, 800 Watts peak power
-
8" Dual Concentric full range driver for point source phase coherence
-
8" low frequency driver for extended bass response
-
Precise 90° dispersion for optimum coverage and forward projection
-
Ideal for FOH, floor monitor and side fill applications
-
Vented and internally braced plywood enclosure
-
Finished with hard wearing semi matt white paint
-
Rugged powder coated perforated steel mesh grille
-
Blanking plate for optional VTH pole mount
-
Optional horizontal mounting yoke (available separately)
-
Integrip handles ergonomically integrated into top and bottom of cabinet
-
Neutrik* speakON NL4 and barrier strip connectors for input and link output
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
Performance
| Frequency Response (-3 dB) 1) |
80 Hz Ð 35 Hz |
| Frequency Range (-10 dB) 1 |
60 Hz Ð 45 kHz |
| System Sensitivity (1 W @1 m) 2) |
93 dB (1 W = 2.83 V for 8 ohms) |
| Dispersion (degrees conical) |
90 degrees conical |
| Driver Complement |
1 x 200 mm (8.00Ó) constant directivity Dual Concentric 1 x 200mm (8.00Ó) bass driver |
| Crossover |
Passive 360 Hz and 1.5 kHz with dynamic HF protection |
| Directivity Factor (Q) |
8.1 (averaged 1 kHz to 8 kHz) |
| Directivity Index (DI) |
9.2 (averaged 1 kHz to 8 kHz) |
| Rated Maximum SPL (2) |
Average: 116 dB Peak: 122 dB |
| Power Handling |
Average: 200 W Programme: 400 W Peak: 800 W |
| Recommended Amplifier Power |
400 W @ 8 ohms |
| Nominal Impedance |
8 ohms |
Distortion
| 10% Full Power (10.2 V) |
2nd Harmonic |
| 250 Hz |
0.58% |
| 1 kHz |
0.34% |
| 10 kHz |
1.73% |
Distortion
| 10% Full Power (10.2 V) |
2nd Harmonic |
| 250 Hz |
0.15% |
| 1 kHz |
0.11% |
| 10 kHz |
0.74% |
Distortion
| 10% Full Power (10.2 V) |
3rd Harmonic |
| 250 Hz |
0.34% |
| 1 kHz |
0.69% |
| 10 kHz |
0.15% |
Distortion
| 10% Full Power (10.2 V) |
3rd Harmonic |
| 250 Hz |
0.15% |
| 1 kHz |
0.37% |
| 10 kHz |
0.22% |
| Construction | |
| Packed Quantity |
1 |
