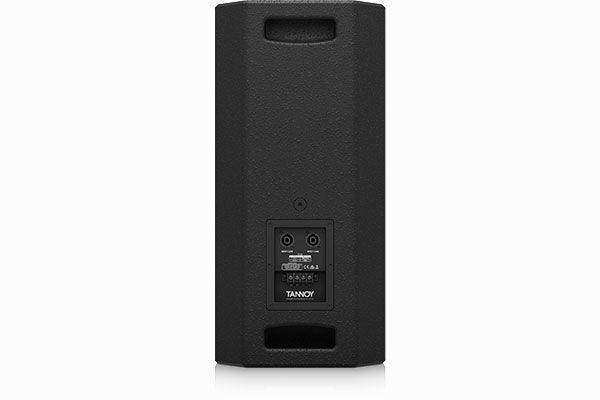

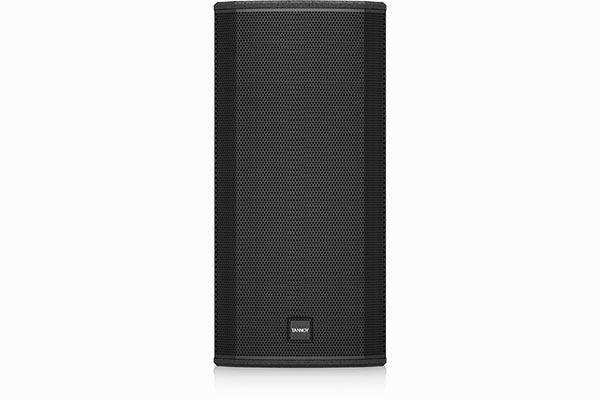

Tannoy VX 8.2 Dual Concentric Full Range Loudspeaker (Black) - TA-VX8.2-BK

Availability: Call for Availability
Availability: Direct Ship
Tannoy SKU: TA-VX8.2-BK
No reviews
Price:
$859.00

Description

The VX 8.2 is a new concept for this type of device, adding new capabilities to the range with its exceptional acoustic clarity, definition and all round acoustical performance. Boasting an exceptional performance-to-size ratio, VX 8.2 provides a compact, yet punchy and sonically articulate solution for medium scale performance sound reinforcement as well as high performance speech reproduction where clarity and vocal character are paramount. The versatile twin driver design and mounting options also make the VX 8.2, due to acoustic matching with the wider range of VX Series models, perfectly capable components within much larger installations.



Features

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications

  • 200 Watts continuous, 800 Watts peak power

  • 8" Dual Concentric full range driver for point source phase coherence

  • 8" low frequency driver for extended bass response

  • Precise 90° dispersion for optimum coverage and forward projection

  • Ideal for FOH, floor monitor and side fill applications

  • Vented and internally braced plywood enclosure

  • Finished with hard wearing semi matt black paint

  • Rugged powder coated perforated steel mesh grille

  • Blanking plate for optional VTH pole mount

  • Optional horizontal mounting yoke (available separately)

  • Integrip handles ergonomically integrated into top and bottom of cabinet

  • Neutrik* speakON NL4 and barrier strip connectors for input and link output

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.
Performance
Frequency Response (-3 dB) 1)

80 Hz Ð 35 Hz
Frequency Range (-10 dB) 1

60 Hz Ð 45 kHz
System Sensitivity (1 W @1 m) 2)

93 dB (1 W = 2.83 V for 8 ohms)
Dispersion (degrees conical)

90 degrees conical
Driver Complement

1 x 200 mm (8.00Ó) constant directivity Dual Concentric 1 x 200mm (8.00Ó) bass driver
Crossover

Passive 360 Hz and 1.5 kHz with dynamic HF protection
Directivity Factor (Q)

8.1 (averaged 1 kHz to 8 kHz)
Directivity Index (DI)

9.2 (averaged 1 kHz to 8 kHz)
Rated Maximum SPL (2)

Average: 116 dB Peak: 122 dB
Power Handling

Average: 200 W Programme: 400 W Peak: 800 W
Recommended Amplifier Power

400 W @ 8 ohms
Nominal Impedance

8 ohms
Distortion
10% Full Power (10.2 V)

2nd Harmonic
250 Hz

0.58%
1 kHz

0.34%
10 kHz

1.73%
Distortion
10% Full Power (10.2 V)

2nd Harmonic
250 Hz

0.15%
1 kHz

0.11%
10 kHz

0.74%
Distortion
10% Full Power (10.2 V)

3rd Harmonic
250 Hz

0.34%
1 kHz

0.69%
10 kHz

0.15%
Distortion
10% Full Power (10.2 V)

3rd Harmonic
250 Hz

0.15%
1 kHz

0.37%
10 kHz

0.22%
Construction
Packed Quantity

1
