Tannoy VX 6-WH Dual Concentric Full Range Loudspeaker (Pair,White) - TA-VX6-WH

Product Overview

The Tannoy VX 6-WH is a compact 6-inch dual concentric full-range loudspeaker built for small-scale sound reinforcement, high-intelligibility speech, and quality background music. Sold as a pair in white, this point-source install speaker delivers an exceptional performance-to-size ratio with a precise 90-degree conical dispersion. Passive/bi-amp switchable operation and flexible mounting make it well suited to fixed installations, portable PA, and fill or delay duty alongside larger Tannoy systems.

Product Description

One of the smaller dual concentric models in the VX range, the VX 6-WH produces a punchy, articulate sound suited to clarity-critical speech and natural vocal reproduction. A single 6" constant-directivity PowerDual driver places the high-frequency unit at the acoustic center of the cone for phase-coherent point-source projection across a controlled 90-degree pattern. The crossover is switchable between passive and bi-amp modes, giving integrators flexibility in how they drive and tune the system in a fixed install.

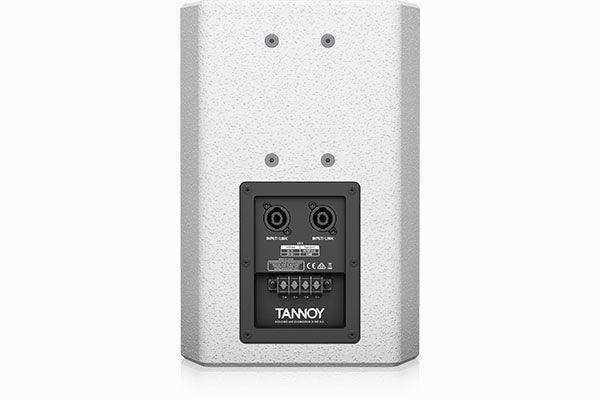

Rated at 100 W continuous and 400 W peak with 91 dB sensitivity, the VX 6-WH reaches 111 dB continuous SPL from an 8-ohm load. The vented, internally braced plywood enclosure carries a hard-wearing semi-matte white finish with a powder-coated perforated steel grille. Two Neutrik speakON NL4 connectors plus a barrier strip provide input and link-through wiring, while M6 yoke inserts, additional M6 inserts compatible with industry-standard brackets, and a blanking plate for an optional VTH pole mount support wall, ceiling, and portable mounting. The VX 6-WH is ideal for FOH, floor monitor, delay, and stage front-fill roles. Browse the full Tannoy collection at Creation Networks, or compare the black finish, the VX 6, for darker interiors.

Key Features

• 6" Dual Concentric PowerDual driver — The point-source design delivers phase-coherent coverage and accurate imaging for clear speech and music.
• 90° conical dispersion — The controlled pattern provides even coverage and strong forward projection for fill and monitor roles.
• Passive / bi-amp switchable crossover — Selectable operating modes give integrators flexibility in driving and tuning the loudspeaker.
• 100 W continuous / 400 W peak — The power handling and 111 dB continuous SPL suit demanding small-format reinforcement.
• Neutrik speakON NL4 and barrier strip — Dual connectors with input and link output simplify daisy-chained wiring in fixed installations.
• Flexible mounting — M6 yoke inserts, industry-standard bracket compatibility, and a VTH pole-mount blanking plate cover wall, ceiling, and portable use.
• Semi-matte white finish — The vented braced plywood cabinet with white paint and steel grille blends into light-colored interiors.
• 10-year warranty program — Designed and engineered in the U.K. and backed by Tannoy's extended warranty.

Typical Applications

• Conference room
• Multi-purpose room
• House of worship
• Training room
• Auditorium

Technical Specifications

Frequently Asked Questions

Can the VX 6-WH be bi-amped?
Yes. The crossover is switchable between passive and bi-amp modes, so it can run from a single amplifier channel or be actively bi-amped.

Can it be used as a stage monitor or front fill?
Yes. The controlled 90-degree conical dispersion and compact cabinet make it well suited to FOH, floor monitor, delay, and stage front-fill roles.

How does it mount in a fixed installation?
It has M6 yoke inserts and additional M6 inserts compatible with industry-standard brackets, plus a blanking plate for an optional VTH pole mount.

How are the speakers wired together?
Two Neutrik speakON NL4 connectors and a barrier strip provide input and link-through wiring for clean daisy-chaining between cabinets.

Is this sold as a single speaker or a pair?
This listing is for a pair. Contact our AV team for system design help and a project quote.
