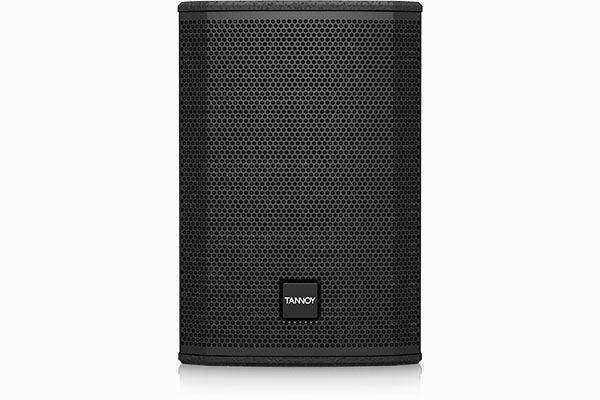

Tannoy VX 6 Dual Concentric Full Range Loudspeaker (Pair,Black) - TA-VX6-BK

TannoySKU: TA-VX6-BK
No reviews

Price:
Sale price$678.00

Description

Sold as a pair, The VX 6 may be one of the smaller Dual Concentric full range loudspeakers in the VX range, but it boasts an exceptional performance-to-size ratio. VX 6 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. The VX 6 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.


  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications

  • 100 Watts continuous, 400 Watts peak power

  • 6" Dual Concentric full range driver for point source phase coherence

  • Precise 90° dispersion for optimum coverage and forward projection

  • Ideal for FOH, floor monitor, delay and stage front fill applications

  • Vented and internally braced plywood enclosure

  • Finished with hard wearing semi matt black paint

  • Rugged powder coated perforated steel mesh grille

  • Blanking plate for optional VTH pole mount

  • Optional horizontal mounting yoke (available separately)

  • Neutrik speakON* NL4 and barrier strip connectors for input and link output

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

System
Frequency response (Full range mode)

92 Hz - 35 kHz ±3 dB
80 Hz - 45 kHz -10 dB

Nominal dispersion

90° conical @ -6 dB point

Directivity factor (Q)

5.6

Directivity index (DI)

7

Power handling (IEC)
Passive

100 W continuous, 400 W

Bi-amp

-

Sensitivity

91 dB (1 W @ 1 m))

Maximum SPL
Passive

111 dB continuous, 117 dB peak

Bi-amp

-

Impedance
Passive

8 Ω

Bi-amp

-

Crossover Type

Passive / Bi-amp switchable

Components

1 x 6" (150 mm) constant directivity PowerDual

Enclosure

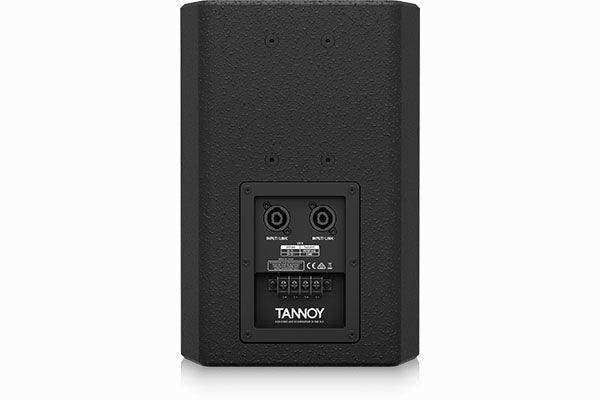

Connectors

2x Neutrik speakON* NL4
1 x barrier strip terminals

Wiring
Passive

Pins 1+ / 1- Input, Pins 2+ / 2- Link

Bi-Amp

-

Dimensions H x W x D

334 x 226  x 216 mm
(13.1  x 8.9 x 8.5")

Net weight

5.0 kg (11.0 lbs)

Construction

12 mm (1/2") plywood, vented and internally braced

Finish

Semi matt black paint (white optional)

Grille

Powder coated perforated steel

Flying hardware

M6 x 2 yoke bracket insert (4 mm allen key)
M6 x 4 inserts
Compatible with industry standard brackets
Blanking plate for optional VTH pole mount

Accessories
Multi Angle Wall Mount<br/>Multi Angle Wall Mount-WH<br/>Yoke Horizontal VX 5.2/VX 6<br/>Yoke Horizontal VX 5.2/VX 6 - WH<br/>VTH Top Hat
