Tannoy VX 5.2 Dual Concentric Full Range Loudspeaker (Pair,Black) - TA-VX5.2-BK

Product Overview

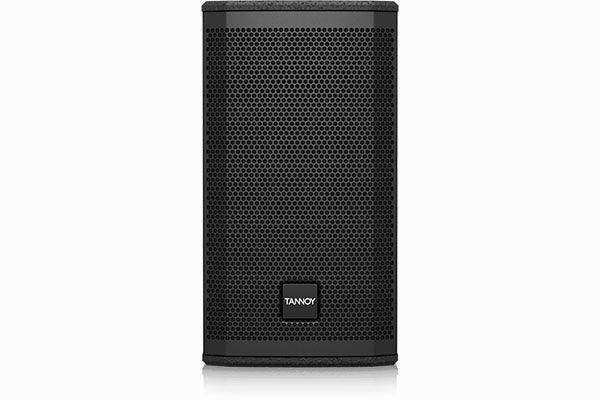

The Tannoy VX 5.2 is a compact 5-inch dual concentric full-range loudspeaker built for small-scale sound reinforcement, high-intelligibility speech, and quality background music. Sold as a pair in black, this point-source install speaker delivers an exceptional performance-to-size ratio with a precise 120-degree by 90-degree dispersion pattern. Its flexible mounting options suit both fixed installations and portable PA, and it works well as front fill, delay, or floor monitor alongside larger Tannoy systems.

Product Description

Although the VX 5.2 is the smallest dual concentric model in the VX range, it produces a punchy, articulate sound well suited to clarity-critical speech and natural vocal reproduction. The dual concentric driver places the high-frequency unit at the acoustic center of the 5" cone for phase-coherent point-source projection, while a second 5" low-frequency driver extends bass response. A passive crossover with dynamic HF protection keeps the system reliable under sustained commercial use. The vented, internally braced 12 mm plywood enclosure is finished in hard-wearing semi-matte black with a powder-coated perforated steel grille.

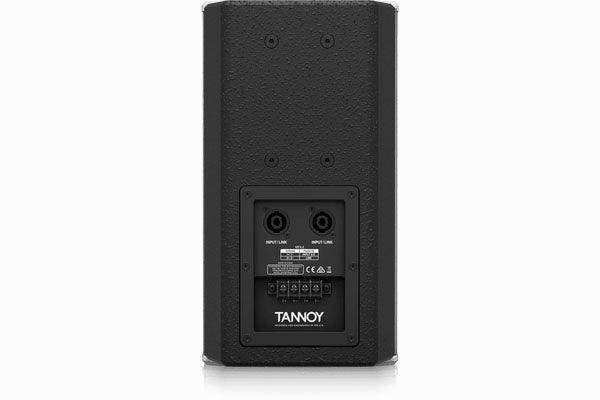

Rated at 130 W continuous and 520 W peak with 90 dB sensitivity, the VX 5.2 reaches 111 dB continuous SPL from an 8-ohm load. Connection is handled by two Neutrik speakON NL4 connectors plus a barrier strip for input and link-through, simplifying daisy-chained wiring in fixed installs. An M6 pole-mount socket supports small-scale portable PA, and M6 inserts accept an optional horizontal yoke and industry-standard brackets for wall or ceiling mounting. The VX 5.2 is ideal for FOH, floor monitor, delay, and stage front-fill duty in performance and meeting spaces. Browse the full Tannoy collection at Creation Networks, or compare the white finish, the VX 5.2-WH, for lighter interiors.

Key Features

• 5" Dual Concentric driver — The point-source design delivers phase-coherent coverage and accurate imaging for clear speech and music.
• Dedicated 5" LF driver — A second low-frequency driver extends bass response beyond what the compact cabinet size would normally allow.
• 120° H x 90° V dispersion — The controlled pattern provides even coverage and strong forward projection for fill and monitor roles.
• 130 W continuous / 520 W peak — The power handling and 111 dB continuous SPL suit demanding small-format reinforcement.
• Neutrik speakON NL4 and barrier strip — Dual connectors with input and link output simplify daisy-chained wiring in fixed installations.
• Flexible mounting — An M6 pole socket plus M6 yoke inserts support portable PA and industry-standard wall or ceiling brackets.
• Vented braced plywood enclosure — The 12 mm plywood cabinet with semi-matte black finish and steel grille is built for sustained commercial duty.
• 10-year warranty program — Designed and engineered in the U.K. and backed by Tannoy's extended warranty.

Typical Applications

• Conference room
• Multi-purpose room
• House of worship
• Training room
• Auditorium

Technical Specifications

Frequently Asked Questions

Is the VX 5.2 a passive or powered loudspeaker?
It is a passive 8-ohm loudspeaker with a built-in crossover and dynamic HF protection, driven by an external amplifier.

Can it be used as a stage monitor or front fill?
Yes. The controlled 120 x 90 degree dispersion and compact cabinet make it well suited to FOH, floor monitor, delay, and stage front-fill roles.

How does it mount in a fixed installation?
It has M6 yoke inserts and additional M6 inserts compatible with industry-standard brackets, plus an M6 pole socket for portable use.

How are the speakers wired together?
Two Neutrik speakON NL4 connectors and a barrier strip provide input and link-through wiring for clean daisy-chaining between cabinets.

Is this sold as a single speaker or a pair?
This listing is for a pair. Contact our AV team for system design help and a project quote.
