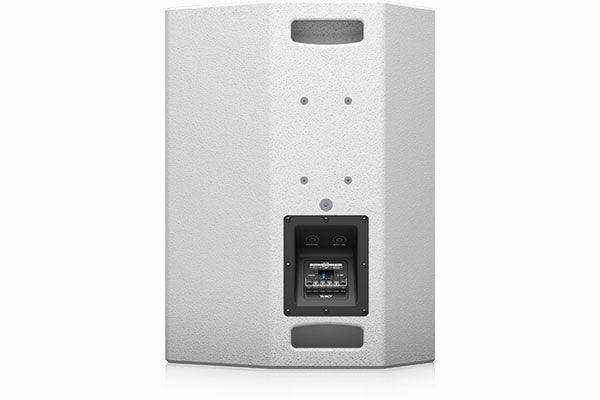

The VX 15Q-WH is a new class of device that delivers high SPL, low distortion audio coverage in a complete high performance loudspeaker cabinet. It provides a high impact solution for medium-to-large scale sound reinforcement in high-SPL applications such as bars and clubs, as well as being well suited for mid-scale portable/live PA applications. Thanks to its twin driver design for extended low frequency reproduction and flexible mounting options, the VX 15Q is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications. The VX 15Q-WH can also be configured for bi-amp operation.
Features
-
Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
-
400 Watts continuous, 1,600 Watts peak power
-
15" PowerDual full range driver for point source phase coherence
-
Q-Centric waveguide for tighter vertical or horizontal pattern control
-
Precise 75º H x 40º V dispersion for optimum coverage and forward projection
-
Ideal for FOH, floor monitor and side fill applications
-
Configurable for bi-amp operation
-
Vented and internally braced plywood enclosure
-
Finished with hard wearing semi matt white paint
-
Rugged powder coated perforated steel mesh grille
-
Blanking plate for optional VTH pole mount
-
Optional horizontal and vertical mounting yokes (available separately)
-
Integrip handles ergonomically integrated into top and bottom of cabinet
-
Neutrik* speakON NL4 and barrier strip connectors for input and link output
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
System
| Frequency response (Full range mode) |
70 Hz - 25 kHz ±3 dB
58 Hz - 30 kHz -10 dB
|
| Nominal dispersion |
75° H x 40° V @ -6 dB points
|
| Directivity factor (Q) |
12
|
| Directivity index (DI) |
10.8
|
| Power handling (IEC) |
|
| Passive |
400 W continuous, 1,600 W
|
| Bi-amp |
LF: 400 W continuous, 1,600 W
HF: 80 W continuous, 320 W peak
|
| Sensitivity |
99 dB (1 W @ 1 m))
|
| Maximum SPL |
|
| Passive |
125 dB continuous, 131 dB peak
|
| Bi-amp |
LF: 126 dB continuous, 132 dB peak
HF: 127 dB continuous, 132 dB peak
|
| Impedance |
|
| Passive |
8 Ω
|
| Bi-amp |
8 Ω
8 Ω
|
| Crossover Type |
Passive / Bi-amp switchable
|
| Components |
1 x 15" (380 mm) constant directivity PowerDual
|
Enclosure
| Connectors |
2x Neutrik speakON* NL4
1 x barrier strip terminals
|
| Wiring |
|
| Passive |
Pins 1+ / 1- Input, Pins 2+ / 2- Link
|
| Bi-Amp |
Pins 1+ / 1- LF, Pins 2+ / 2- HF
|
| Dimensions H x W x D |
591 x 451 x 421 mm
(23.3 x 17.8 x 16.6")
|
| Net weight |
25.4 kg (55.9 lbs)
|
| Construction |
18 mm (3/4") enclosure / 18 mm (3/4") front,
plywood, vented and internally braced
|
| Finish |
Semi matt black paint (white optional)
|
| Grille |
Powder coated perforated steel
|
| Flying hardware |
M10 x 8 flying inserts
(portrait or landscape mounting)
M10 x 8 yoke bracket inserts
2 x Intergrip carrying handles
Blanking plate for optional VTH pole mount
Compatible with industry standard brackets
M6 x 4 inserts
|
