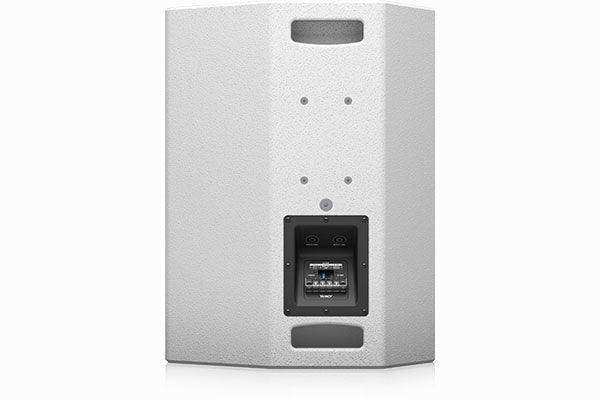

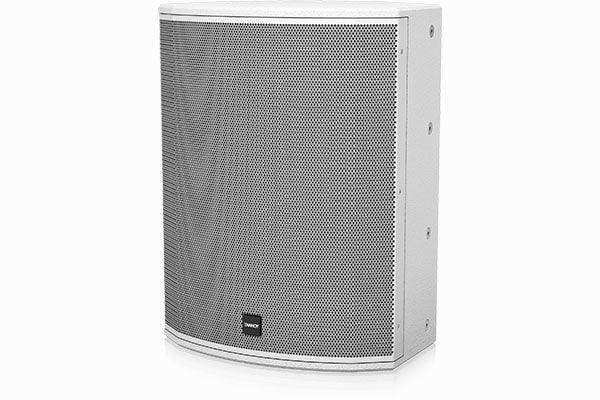

Tannoy VX 15HP-WH PowerDual Full Range Loudspeaker (White) - TA-VX15HP-WH

TannoySKU: TA-VX15HP-WH
No reviews

Price:
Sale price$1,299.00

Description

The VX 15HP-WH is built around a single 380 mm (15") PowerDual driver mounted within a compact, rugged plywood cabinet, and renowned for its exceptional performance and versatility. The latest high powerhandling version of TANNOY’s exclusive point source, constant directivity PowerDual technology ensures high power output with high sensitivity and exceptional efficiency. The point source driver technology allows this unique configuration to deliver exceptionally smooth beam-width characteristics resulting in an even coverage pattern aiding predictable system design. Symmetrical dispersion characteristics enhance speaker placement flexibility, allowing vertical or horizontal mounting of single or multi-cabinet arrays without any compromise in sound quality. The VX 15HP-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications. The VX 15HP-WH can also be configured for bi-amp operation.


  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications

  • 400 Watts continuous, 1,600 Watts peak power

  • 15" PowerDual full range driver for point source phase coherence

  • Precise 75° dispersion for optimum coverage and forward projection

  • Ideal for FOH, floor monitor and side fill applications

  • Configurable for bi-amp operation

  • Vented and internally braced plywood enclosure

  • Finished with hard wearing semi matt white paint

  • Rugged powder coated perforated steel mesh grille

  • Blanking plate for optional VTH pole mount

  • Optional horizontal and vertical mounting yokes (available separately)

  • Integrip handles ergonomically integrated into top and bottom of cabinet

  • Neutrik speakON* NL4 and barrier strip connectors for input and link output

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

Frequency response

70 Hz - 25 kHz ±3 dB
58 Hz - 30 kHz -10 dB

Nominal dispersion

75° conical @ -6 dB points

Directivity factor (Q)

9.7

Directivity index (DI)

9.9

Power handling (IEC)
Passive

400 W continuous, 1,600 W peak

Bi-amp

LF: 400 W continuous, 1,600 W peak
HF: 80 W continuous, 320 W peak

Sensitivity

99 dB (1 W @ 1 m)

Maximum SPL
Passive

125 dB continuous, 131 dB peak

Bi-amp

LF: 126 dB continuous, 132 dB peak
HF: 125 dB continuous, 131 dB peak

Impedance
Passive

8 Ω

Bi-amp

8 Ω
8 Ω

Crossover Type

Passive / Bi-amp switchable

Components

1 x 15" (380 mm) constant directivityPowerDual

Enclosure
Connectors

2x Neutrik speakON* NL4
1 x barrier strip terminals

Wiring
Passive

Pins 1+ / 1- Input, Pins 2+ / 2- Link

Bi-Amp

Pins 1+ / 1- LF, Pins 2+ / 2- HF

Dimensions H x W x D

591 x 451  x 421 mm
(23.3  x 17.8 x 16.6")

Net weight

25.5 kg (56.2 lbs)

Construction

18 mm (3/4") enclosure / 18 mm (3/4") front,plywood, vented and internally braced

Finish

Semi matt black paint (white optional)

Grille

Powder coated perforated steel

Flying hardware

M10 x 8 flying inserts
(portrait or landscape mounting)M10 x 8 yoke bracket inserts2 x Intergrip carrying handles
Blanking plate for optional VTH pole mount
Compatible with industry standard brackets
M6 x 4 inserts
