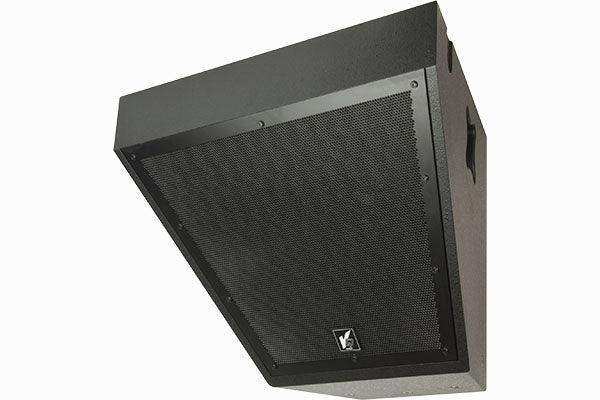

Tannoy VQ 85DF 2 Way Down-Firing Dual Concentric Mid-High Loudspeaker (Black) - TA-VQ85 DF-BK

TannoySKU: TA-VQ85 DF-BK
No reviews

Price:
Sale price$3,099.00

Description

The VQ 85DF (Down Firing) Mid/High loudspeaker is designed to seamlessly integrate with the VQ full range and VQ MB loudspeakers and match their exact footprint. The down firing configuration allows the VQ 85DF to be tight packed without the need for any complex fly-ware. With a coverage pattern of 80 x 50 degrees, the VQ 85DF will provide even coverage to the areas immediately below the main flown loudspeakers. For full range use the VQ 85DF can also be used along with the VQ MB. The VQ 85DF can be configured for use in Single or Bi-Amp mode, in conjunction with a suitable digital signal processor (DSP). The modular design approach allows the sound system designer to create seamless and predictable arrays, or they can be used singly as part of large distributed systems. The VQ 85DF addresses the requirement for compact dimensions without compromising performance in any way. VQ MH elements, which are available in various patterns, will integrate seamlessly with the VQ 85DF enclosures to facilitate tight packed arrays; the compound angles on the enclosure avoid unsightly spaces between separate cabinets when arrayed horizontally. VQ MB or VS 15DR elements can be added to extend bandwidth and pattern control to lower frequencies. The VQ 85DF incorporates a unique driver technology to radiate a coherent single point source for superior dispersion control when coupled to a PSW™ (Point Source Waveguide). This advanced design aligns the acoustical centres of the transducers providing a single coherent wavefront emanating from the throat. The PSW™ waveguide achieves an optimum balance of extremely well controlled coverage, smooth frequency response, and natural sound character. For outdoor applications, weather resistant enclosures which incorporate stainless steel hardware are available.





  • 2 way down-firing mid-high loudspeaker for high performance installation applications

  • 200 Watts continuous, 800 Watts peak power

  • Dual Concentric 3.5" and 1.75" diaphragm compression drivers for mid and high frequency reproduction

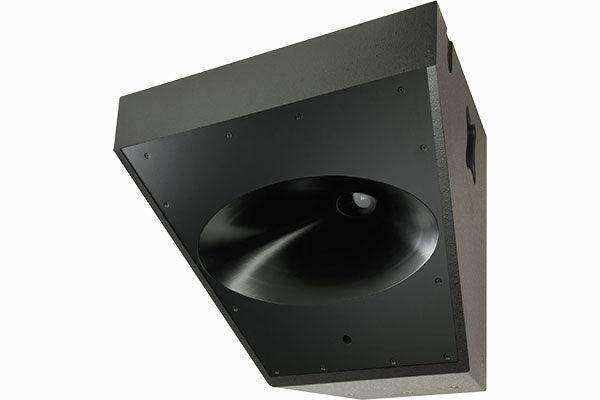

  • Patented PSW waveguide technology provides acoustic centre alignment for coherent wavefront horn throat

  • Phase coherent point source provides exceptional transient response and dispersion control

  • Provides even coverage to areas immediately below main flown loudspeakers

  • 80° x 50° dispersion allows installation of tightly packed point-source clusters

  • Precise time alignment eliminates interference from multiple driver sources

  • User configurable for passive and bi-amp operation

  • Extremely high efficiency design provides high SPL for modest power input

  • Modular design for versatile and compact cluster configurations

  • Internally braced birch plywood enclosure

  • Finished with hard wearing semi matt black paint

  • Rugged powder coated perforated steel mesh grille

  • Integral M10 rigging points for ease of installation

  • 2 handles ergonomically integrated into cabinet

  • Optional vertical flyware with 10:1 safety ratio (available separately)

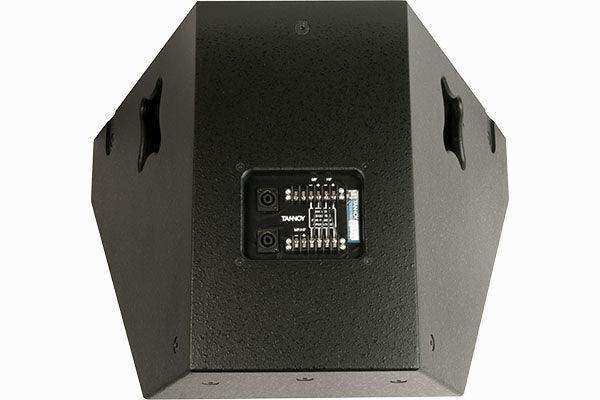

  • speakON NL4 and barrier strip connectors for input and link output



Performance
System Type

2-Way Mid/High - Point Source

Frequency Response (-3 dB) (1)

400 Hz - 23 kHz

Frequency Range (-10 dB) (1)

350 Hz - 27 kHz

Operating Modes

Single Amplified
Bi-Amp (MF,HF)
User Configurable

Dispersion (-6 dB)

80 x 50 degrees

Directivity Factor (Q)

13.3 averaged 1 kHz to 10 kHz

Directivity Index (DI)

11.2 averaged 1 kHz to 10 kHz

System Sensitivity & Operating Freq. (1 W @ 1 m) <sup>2</sup>
Single Amplified - Passive Mid/High Frequency (450 Hz - 23 kHz)

111 dB (2.83 V @ 8 Ohms)

Bi-Amp - MF (450 Hz - 7 kHz)

110 dB (2.83 V @ 8 Ohms)

Bi-Amp - HF (7 kHz - 23 kHz)

111 dB (2.83 V @ 8 Ohms)

Driver Complement
Driver Complement Mid/High Frequency

Dual Concentric

Crossover

Single Amplified - 7 kHz (passive)
Bi-Amp 7 kHz (active)
Recommended High Pass Filter @ 400 Hz

Rated Maximum Spl <sup>2</sup>
Mid Frequency

Average: 134 dB
Peak: 140 dB

High Frequency

Average: 133 dB
Peak: 139 dB

Passive Mid/High Frequency

Average: 134 dB
Peak: 140 dB

Distortion
110 dB SPL

2nd Harmonic 500 Hz: 2.165%, 2 kHz: 1.507%, 5 kHz: 1.308%
3rd Harmonic 500 Hz: 0.773%, 2 kHz: 0.123%, 5 kHz: 0.161%

115 dB SPL

2nd Harmonic 500 Hz: 3.487%, 2 kHz: 2.553%, 5 kHz: 2.252%
3rd Harmonic 500 Hz: 0.997%, 2 kHz: 0.212%, 5 kHz: 0.326%

120 dB SPL

2nd Harmonic 500 Hz: 5.895%, 2 kHz: 4.400%, 5 kHz: 3.882%
3rd Harmonic 500 Hz: 1.558%, 2 kHz: 0.374%, 5 kHz: 0.789%

125 dB SPL

2nd Harmonic 500 Hz: 11.482%, 2 kHz: 7.516%, 5 kHz: 6.871%
3rd Harmonic 500 Hz: 5.364%, 2 kHz: 0.897%, 5 kHz: 2.972%

Recommended Amplifier Power <sup>3</sup>
Mid Frequency

400 W into 8 Ohms

High Frequency

200 W into 8 Ohms

Passive Mid/High Frequency

400 W into 8 Ohms

Power Handling 3
Mid Frequency @ 8 Ohms

Average: 200 W (40 V)
Programme : 400 W

High Frequency @ 8 Ohms

Average: 90 W (27 V)
Programme : 180 W

Passive Mid/High Frequency @ 8 Ohms

Average: 200 W (40 V)
Programme : 400 W

Nominal Impedance
Mid Frequency

8 Ohms (6.5 Ohms minimum)

High Frequency

8 Ohms (8.5 Ohms minimum)

Construction
Enclosure

18 mm (0.71") birch plywood, internally steel braced

Grille

Powder coated perforated steel grille

Finish

Textured black or white paint (custom colours on request)

Connectors

Barrier strip and Neutrik NL4

Fittings

2 x Recessed carrying handles
11 x M10 flying inserts

Dimensions (H x W x D)

500 x 694 x 515 mm (19.69 x 27.32 x 20.28")

Net Weight (ea)

27.0 kg (59.4 lbs)
