Tannoy TA-CVS 401-BK 4" Coaxial Ceiling Loudspeaker (Black,Pair) - TA-CVS 401-BK

Product Overview

The Tannoy CVS 401-BK is a 4-inch coaxial ceiling loudspeaker built for background and foreground music in commercial audio installations. Sold as a pair, it delivers the power handling, wide frequency response and low distortion that integrators expect for distributed 70V/100V line systems. With EN 54-24 and UL certification, this commercial-grade ceiling speaker suits restaurants, hotels, retail, and life-safety voice-evacuation applications. It supports both constant-voltage line operation and 8-ohm direct connection.

Product Description

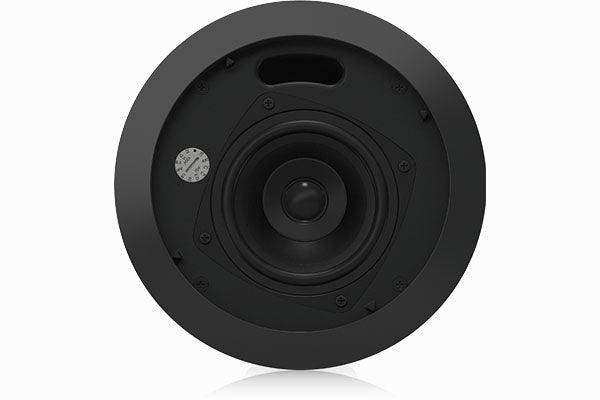

The CVS 401-BK pairs a 4-inch polypropylene driver with a 0.75-inch ferrofluid-cooled soft-dome high-frequency driver in a coaxial layout, giving even, on-axis coverage from a single point source. Wide constant-directivity dispersion lets installers space speakers efficiently for consistent intelligibility across a room. Multiple transformer taps support 70V and 100V distributed audio as well as 8-ohm direct input, so the same speaker fits both small zoned systems and larger multi-zone designs. The 30 watt continuous, 120 watt peak rating provides headroom for clear program audio and paging.

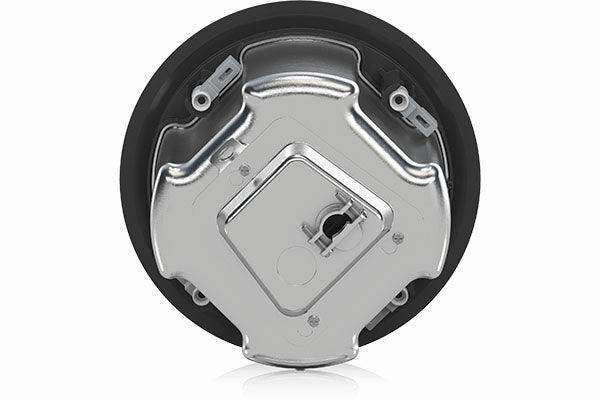

A UV and weather-resistant ABS front with a plated-steel fire-can enclosure and powder-coated aluminum mesh grille make the speaker durable in demanding interior environments. EN 54-24 Type A certification, UL 1480 certification for fire-protected signalling, and UL 2043 certification for air-handling (plenum) spaces make it appropriate for projects where fire and life-safety compliance is required. A mounting C-ring and ceiling tile rails are included for fast installation, and the strain-relief clamping mechanism accepts fire-rated cable. Explore the full Tannoy collection or compare the smaller CVS 301-BK ceiling loudspeaker for lower-output zones.

Key Features

• Coaxial Full-Range Design — A 4-inch polypropylene driver and 0.75-inch soft-dome tweeter share a single axis for even coverage and natural tonal balance.
• 70V/100V and 8-Ohm Operation — Multiple transformer taps with an accessible 25W tapping switch let the speaker work in distributed line systems or as a direct 8-ohm load.
• Life-Safety Certified — EN 54-24:2008 Type A, UL 1480 and UL 2043 certifications support fire-detection, signalling, and plenum air-handling installations.
• Durable Fire-Can Construction — A plated-steel fire can with UL 94-V0 and 94-5VB ABS front protects the driver and meets fire-rating requirements.
• Power Handling — 30 watts continuous and 120 watts peak deliver clear headroom for music and paging.
• Fast Installation — Included mounting C-ring, ceiling tile rails, and a fire-rated-cable strain-relief clamp speed up commercial installs.

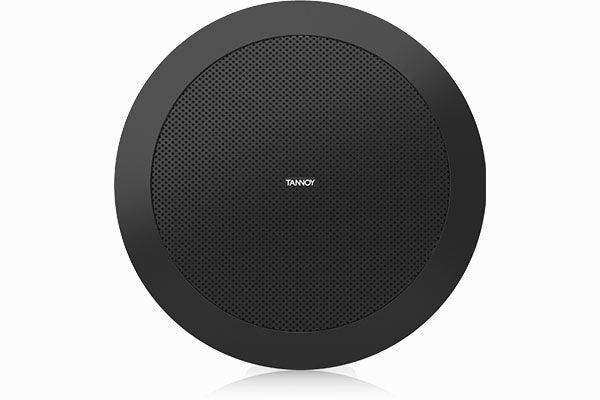

• Discreet Finish — A semi-matte black finish with weather-resistant aluminum mesh grille blends into ceilings.
• 10-Year Warranty — Backed by Tannoy's 10-Year Warranty Program and engineered in the U.K.
