Tannoy PCI 6DC LP Premium Low Profile 6" Dual Concentric Ceiling Loudspeaker - TA-PCI 6DC LP-WH

Product Overview

The Tannoy PCI 6DC LP is a premium low-profile 6-inch dual concentric ceiling loudspeaker for high-fidelity music and film playback in space-constrained installations. Its shallow chassis fits where deeper ceiling speakers cannot, while the Dual Concentric driver delivers point-source clarity across the listening area. With switchable high-frequency level and both round and square baffles supplied, this dual concentric ceiling loudspeaker adapts to a wide range of architectural ceilings.

Product Description

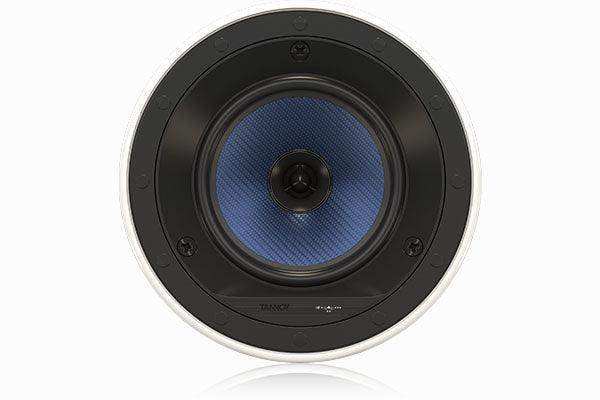

The PCI 6DC LP centers on a 6-inch Dual Concentric driver with Tannoy Omnimagnet technology and a Torus Ogive waveguide, producing coherent point-source sound with wide directivity and high clarity for music and film. A blue Kevlar cone with a high-excursion rubber surround supports strong power handling, rated at 70 watts continuous and 280 watts peak, while a three-way variable high-frequency level switch lets installers tailor the tonal balance to the room. The low-profile chassis and extremely thin bezel suit tight ceiling cavities and discreet architectural integration, and both round and square baffles ship in the box for flexible aesthetics. Integrated single-unit construction with a self-aligning clamp mounting system speeds installation, and the removable grilles can be custom painted to match the ceiling. Operating at 8 ohms with Phoenix Contact terminal-block connectors, the PCI 6DC LP integrates into low-impedance amplifier systems; an optional steel back can and 6-inch plaster mounting kit are available for plenum or drywall installations. This loudspeaker is part of the wider Tannoy commercial loudspeaker collection; for a distributed-line ceiling option with 70V/100V taps, compare the Tannoy CMS 503DC PI.

Key Features

• 6" Dual Concentric Driver — Tannoy Omnimagnet technology and a Torus Ogive waveguide deliver coherent point-source audio with improved directivity.
• Low-Profile Chassis — A shallow 106 mm mounting depth and thin bezel allow installation in tight ceiling cavities where deeper speakers will not fit.
• Blue Kevlar Cone — A high-excursion Kevlar cone with rubber surround supports 70 watts continuous and 280 watts peak power handling.
• Variable HF Level Switch — A three-way high-frequency level control lets installers tune treble balance to room acoustics and listener preference.
• Round and Square Baffles Included — Both baffle shapes and matching grilles ship in the box for flexible architectural fit.

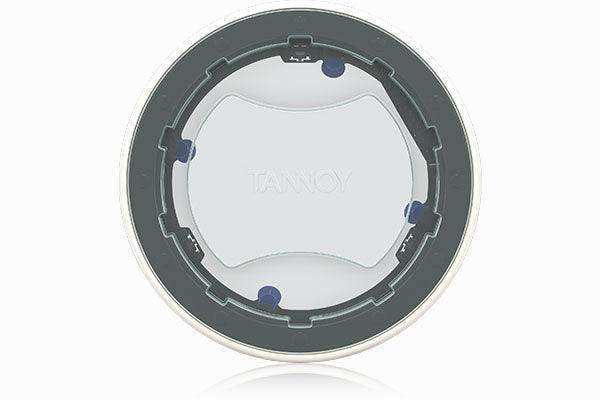

• Self-Aligning Clamp Mount — Integrated single-unit construction with a self-aligning clamp system enables fast, accurate installation.

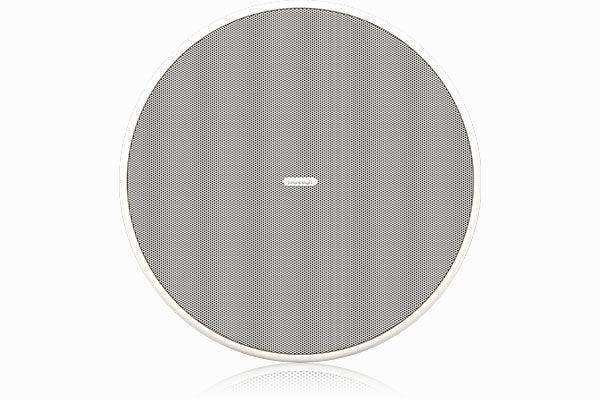

• Paintable Removable Grilles — The grilles detach for custom painting to blend with the surrounding ceiling.
• Low-Impedance Operation — 8-ohm operation with Phoenix Contact terminal blocks integrates into low-impedance amplifier systems.
• Optional Back Can and Plaster Kit — An optional steel back can and 6-inch PMK plaster mounting kit support plenum and drywall installations.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• Multi-purpose room
• Broadcast studio

Technical Specifications

Frequently Asked Questions

How shallow is the PCI 6DC LP?
It has a low-profile design with a 106 mm (4.2") mounting depth, making it suitable for ceiling cavities that cannot accommodate deeper loudspeakers.

Does it run on 70V/100V lines or low impedance?
The PCI 6DC LP is an 8-ohm low-impedance loudspeaker with Phoenix Contact terminal blocks; it is intended for low-impedance amplifier systems rather than distributed 70V/100V lines.

Can the sound be tuned to the room?
Yes. A three-way variable high-frequency level switch lets installers adjust treble balance to suit room acoustics and program material.

What mounting options are available?
Both round and square baffles and grilles are included, and an optional steel back can and 6-inch plaster mounting kit are available for plenum or drywall installs.

What support is available for specification?
Contact Creation Networks for project pricing, accessory selection, and AV system design assistance for the PCI 6DC LP.
