Tannoy CMS 503DC PI 5" Full Range Ceiling Loudspeaker with Dual Concentric Driver (Pre-Install,Pair) - TA-CMS503DC-PI

Product Overview

The Tannoy CMS 503DC PI is a pre-install 5-inch dual concentric ceiling loudspeaker for high-intelligibility speech and program audio in commercial interiors. Sold as a pair without a back can for first-fix wiring, it uses Tannoy's third-generation CMS 3.0 point-source driver to deliver wide, consistent directivity from a discreet ceiling footprint. UL 2043 certification for air-handling spaces and 70V/100V transformer taps make this dual concentric ceiling speaker well suited to plenum and distributed-audio installations.

Product Description

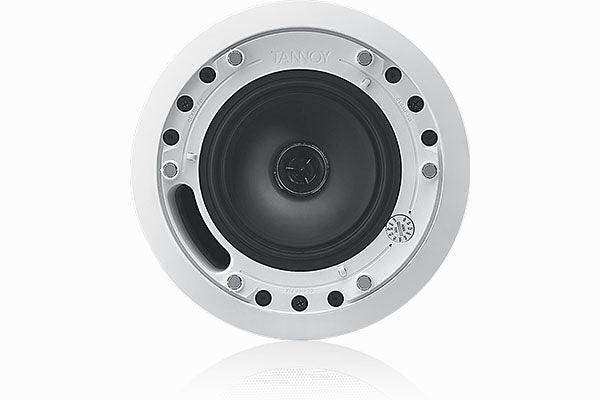

The CMS 503DC PI is a full-bandwidth, high-sensitivity loudspeaker built around a 5-inch Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive waveguide, delivering wide, even broadband directivity with the linear, accurate response Tannoy is known for. It handles 60 watts continuous and 240 watts peak, suiting distributed speech and background-music systems where intelligibility is critical. As the pre-install (PI) version, it ships without a back can, allowing first-fix mounting and cabling ahead of final fit-out; a back can is available separately. The system is UL 1480 certified for general signalling systems and UL 2043 certified for air-handling (plenum) spaces, supporting code-compliant installation in commercial ceilings. Multiple 70V and 100V transformer taps support distributed line operation, a 16-ohm direct input is available for low-impedance use, and the speaker is optimised for Lab Gruppen LUCIA amplifiers running up to eight CMS-series loudspeakers per channel. A self-aligning three-way clamp system with included C-ring and tile rails speeds installation, and the removable magnetic grille can be custom painted; optional ARCO designer grilles are available for minimal architectural impact. This ceiling loudspeaker is part of the wider Tannoy commercial loudspeaker collection; for a larger full-range ceiling option, compare the Tannoy CMS 1201DC.

Key Features

• 5" Dual Concentric Driver — A next-generation point-source driver with Omnimagnet technology delivers coherent, wide-directivity audio with enhanced intelligibility.
• Torus Ogive Waveguide — The waveguide improves high-frequency response and maintains consistent broadband directivity across the coverage area.

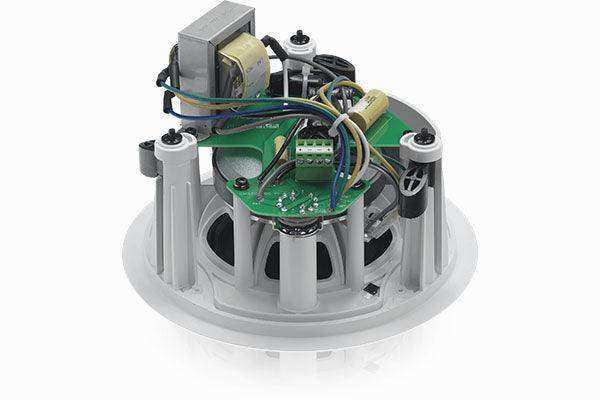

• Pre-Install Configuration — Supplied without a back can for first-fix wiring and mounting, with a back can available separately.
• UL 2043 Plenum Rating — Certified for air-handling spaces and UL 1480 certified for general signalling systems for code-compliant ceiling installs.
• 70V / 100V Distributed Line Operation — Multiple transformer taps and a 16-ohm direct input provide flexibility on constant-voltage or low-impedance systems.
• Lab Gruppen LUCIA Optimised — Tuned for low-impedance LUCIA amplifiers with up to eight CMS-series loudspeakers per channel.
• Self-Aligning Clamp System — A three-way clamp mount with included C-ring and ceiling tile rails enables fast, accurate fitting.

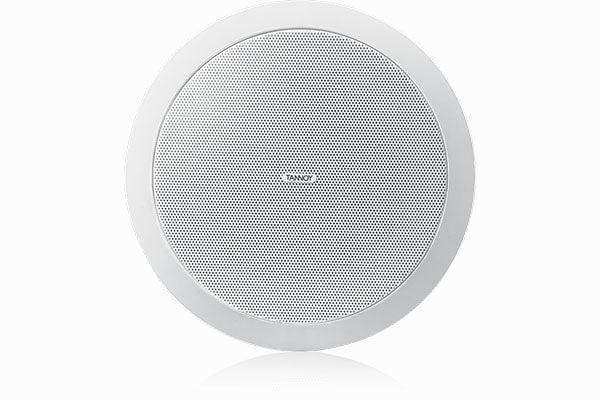

• Paintable Magnetic Grille — The removable magnetic grille can be custom painted, with optional ARCO designer grilles for minimal architectural impact.
• 10-Year Warranty Program — Backed by Tannoy's 10-year warranty program and engineered in the U.K. for long-term reliability.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• House of worship
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

What does the PI (Pre-Install) version include?
The pre-install version ships without a back can so contractors can complete first-fix wiring and mounting; a compatible back can is available separately for final fit-out.

Is it rated for plenum / air-handling spaces?
Yes. It is UL 2043 certified for air-handling spaces and UL 1480 certified for general signalling systems, supporting code-compliant ceiling installations.

Does it support 70V and 100V distributed audio?
It offers multiple 70V and 100V transformer taps plus a 16-ohm direct input for low-impedance amplifier connections.

Which amplifiers is it optimised for?
It is optimised for Lab Gruppen LUCIA amplifiers, supporting up to eight CMS-series loudspeakers per channel for efficient multi-zone integration.

What warranty and support are included?
The CMS 503DC PI is covered by Tannoy's 10-Year Warranty Program and is engineered in the U.K. Contact Creation Networks for project pricing and system design assistance.
