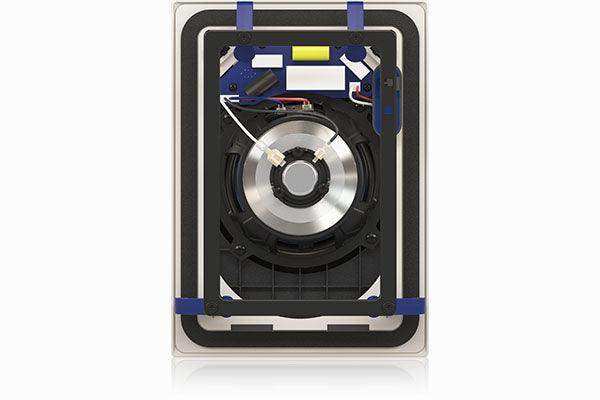

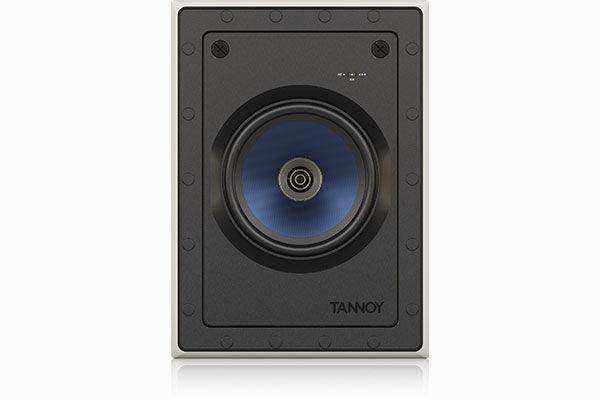

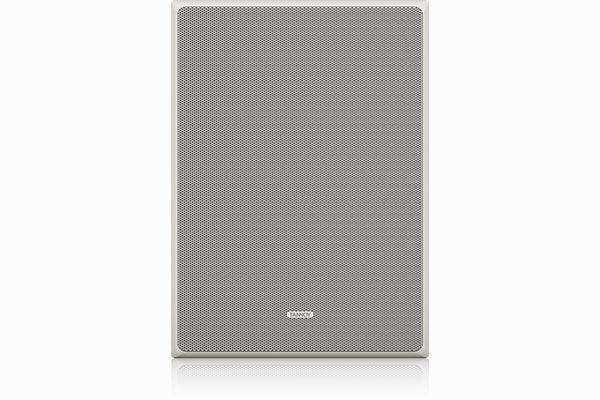

Tannoy PCI 5DC IW Premium 5" Dual Concentric In-Wall Loudspeaker - TA-PCI 5DC IW

Tannoy SKU: TA-PCI 5DC IW
No reviews
Price:
$289.00

Description

Designed to fit seamlessly into your world, the new Tannoy PCI series is the perfect premium loudspeaker for modern living. Discover a beautiful blend of innovative technology combined with sophisticated good looks that will match any décor. State of the art driver materials and Tannoy’s Unique Dual Concentric driver technology combine to deliver music and film that is breathtakingly realistic and with phenomenal clarity.



  • Premium, high-definition loudspeaker for in-wall installation applications

  • 5" Dual Concentric driver featuring TANNOY point-source constant directivity

  • Tulip Waveguide for a smooth, uniform frequency response over a wide area of coverage unachievable with discrete, two-way designs

  • Blue Kevlar* cone with high-excursion, rubber surround for high power handling

  • 3-way variable high-frequency level switch for customised performance preferences

  • 60 Watts continuous, 240 Watts peak power

  • Extremely thin bezel for discreet installation

  • Rigid diecast chassis for improved bass performance and durable application

  • Integrated single unit construction for easy installation

  • Semi matt white finish fits unobtrusively in any environment

  • Powder coated UV resistant perforated steel mesh grille with dust protection

  • Removable grille for custom painting

  • Self-aligning clamp mounting system

  • Removable TANNOY grille badge

  • Tannoy - Over 90 years of British sound heritage and innovation

Performance
Frequencyresponse(±3dB)

50 Hz – 20kHz
Frequencyresponse(-10dB)

30 Hz – 20kHz
Sensitivity(1W @ 1m)

85dB
Directivityfactor (Q)

4.2averaged1kHz to10kHz
Directivity index (DI)

6.2averaged1kHz to10kHz
Power handling (IEC)
Average

60W
Programme

120W
Peak

240W
Recommended amplifier power

180W @ 8 Ω
Nominal Impedance (Lo Z)

8 Ω
Rated maximum SPL(1 m,Lo Z

106 dB
Average

103dB
Peak

109dB
Crossover point

1.6kHz
Coverage angles
500 Hz

180° horizontal,161° vertical
1kHz

156° horizontal,164° vertical
2kHz

131° horizontal,143° vertical
4kHz

107° horizontal,89° vertical
Transducers
Low frequency diameter/material/type

128 mm (5")
High frequency diameter/material/type

20.4 mm (0.8”)
Physical
Back can

Option 1: BACK CAN IW:Steel,powder coating
Baffle

Reflex loaded UL94 V-0rated ABS
Grille

Steel, with weather resistant coating
Safety features

N/A
Clamping design

Security toggle clamp
Connectors

PhoenixContact terminal block
Dimensions (HxWxD)

264x191x102 mm (10.4x 7.5x4.0")
Bezel dimensions

Square:264.2x190.5 mm (10.4x 7.5")
Mounting depth

91.7 mm (3.6")
Hole cutout dimensions

248x173 mm (9.8x6.8")
Net weight

1.7 kg(3.7 lbs)
Packed quantity

1
Included accessories

Grille,paint mask, cutout template
Optional accessories

Option 1: BACK CAN IW

Option 2:PMK 5 IW
