Tannoy PCI 6DC IW Premium 6" Dual Concentric In-Wall Loudspeaker - TA-PCI 6DC IW

Availability: Call for Availability
Availability: Direct Ship
Tannoy SKU: TA-PCI 6DC IW
No reviews
Price:
$309.00

Description

Designed to fit seamlessly into your world, the new Tannoy PCI series is the perfect premium loudspeaker for modern living. Discover a beautiful blend of innovative technology combined with sophisticated good looks that will match any décor. State of the art driver materials and Tannoy’s Unique Dual Concentric driver technology combine to deliver music and film that is breathtakingly realistic and with phenomenal clarity.



  • Premium, high-definition loudspeaker for in-wall installation applications

  • 6" Dual Concentric driver featuring TANNOY point-source constant directivity

  • Tulip Waveguide for a smooth, uniform frequency response over a wide area of coverage unachievable with discrete, two-way designs

  • Blue Kevlar* cone with high-excursion, rubber surround for high power handling

  • 3-way variable high-frequency level switch for customised performance preferences

  • 70 Watts continuous, 280 Watts peak power

  • Extremely thin bezel for discreet installation

  • Rigid diecast chassis for improved bass performance and durable application

  • Integrated single unit construction for easy installation

  • Semi matt white finish fits unobtrusively in any environment

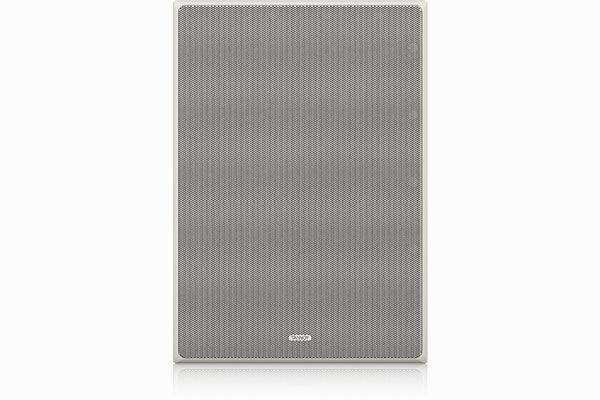

  • Powder coated UV resistant perforated steel mesh grille with dust protection

  • Removable grille for custom painting

  • Self-aligning clamp mounting system

  • Removable TANNOY grille badge

  • Tannoy - Over 90 years of British sound heritage and innovation

Performance
Frequencyresponse(±3dB)

50 Hz – 20kHz
Frequencyresponse(-10dB)

30 Hz – 20kHz
Sensitivity(1W @ 1m)

85dB
Directivityfactor (Q)

4.8averaged1kHz to10kHz
Directivity index (DI)

6.8averaged1kHz to10kHz
Power handling (IEC)
Average

70W
Programme

140W
Peak

280W
Recommended amplifier power

210W @ 8 Ω
Nominal Impedance (Lo Z)

8 Ω
Rated maximum SPL(1 m,Lo Z

107 dB
Average

104dB
Peak

110dB
Crossover point

1.6kHz
Coverage angles
500 Hz

180° horizontal,160° vertical
1kHz

141° horizontal,144° vertical
2kHz

119° horizontal,134° vertica
4kHz

92° horizontal,87° vertical
Transducers
Low frequency diameter/material/type

165.5 mm (6")
High frequency diameter/material/type

25.4 mm (1)
Physical
Back can

Option 1: BACK CAN IW:Steel,powder coating
Baffle

Reflex loaded UL94 V-0rated ABS
Grille

Steel, with weather resistant coating
Safety features

N/A
Clamping design

Security toggle clamp
Connectors

PhoenixContact terminal block
Dimensions (HxWxD)

315x221x105 mm (12.4x8.7 x4.1")
Bezel dimensions

Square:315x221 mm (12.4x8.7")
Mounting depth

91.7 mm (3.6")
Hole cutout dimensions

299x203 mm (11.8x8")
Net weight

2.9kg(6.4 lbs)
Packed quantity

1
Included accessories

Grille,paint mask, cutout template
Optional accessories

Option 1: BACK CAN IW

Option 2:PMK 6 IW
