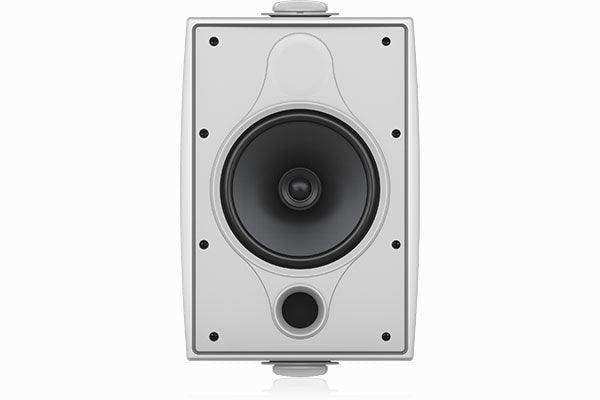

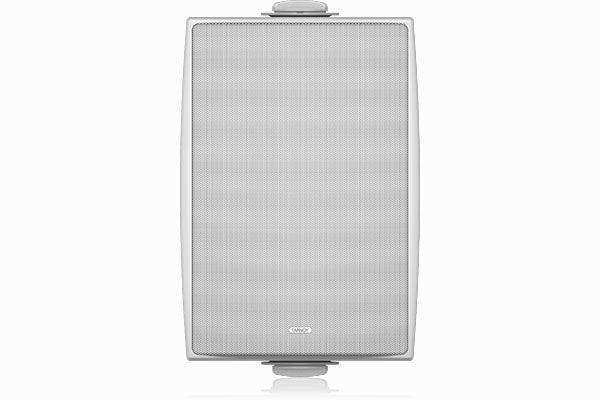

Tannoy DVS 6T-WH 6" Coaxial Surface-Mount Loudspeaker with Transformer (White,Pair) - TA-DVS6T-WH

Product Overview

The Tannoy DVS 6T-WH is an ultra-compact 6-inch surface-mount loudspeaker with transformer for stereo or mono background and foreground music in commercial spaces. Sold as a pair and finished in semi matt white, it integrates cleanly into hospitality, retail, and corporate AV systems where unobtrusive coverage matters. Built-in 70V and 100V transformer taps make this surface-mount loudspeaker straightforward to deploy on distributed audio lines, and its IP64-rated enclosure supports covered outdoor use.

Product Description

Each DVS 6T-WH pairs a 6-inch mineral-loaded polypropylene woofer with a 0.75-inch ferrofluid-cooled soft-dome neodymium tweeter in a coaxial arrangement, delivering 90-degree constant-directivity coverage for even fill across a room. The full-range system handles 60 watts continuous and 240 watts peak, reproducing clear program audio and paging in theme parks, hotels, restaurants and bars, retail stores, corporate AV rooms, residential developments, and houses of worship. The integral low-insertion-loss 60 W transformer offers multiple 70V and 100V taps with an accessible tapping switch, so integrators can balance levels across a distributed zone, and a 6-ohm direct connection is available where low-impedance amplification is preferred. The UV- and weather-resistant UL 94 V-0 ABS enclosure is rated to IP64 and is UL 1480 certified for general signalling systems, and Phoenix-style input and link-output connectors simplify daisy-chaining. The included yoke bracket allows fast aiming during installation. The DVS 6T-WH is part of the wider Tannoy commercial loudspeaker collection; for a dual-concentric surface-mount alternative, compare the Tannoy AMS 5DC-WH.

Key Features

• Coaxial Full-Range Design — A 6-inch mineral-loaded polypropylene woofer and 0.75-inch soft-dome tweeter deliver coherent point-source audio for music and paging.
• 240 W Peak Power Handling — Rated at 60 watts continuous and 240 watts peak, the DVS 6T-WH provides headroom for foreground music levels.
• 70V / 100V Transformer Taps — The integral 60 W transformer offers multiple distributed-line taps plus a 6-ohm direct input for low-impedance use.
• 90-Degree Constant Directivity — Consistent dispersion provides even coverage and reduces hot spots across the listening area.
• IP64 Weather Resistance — The UV- and weather-resistant ABS enclosure is rated to IP64 for covered outdoor and high-moisture indoor environments.
• UL 1480 Certified — Certification for general signalling systems supports use in commercial paging and notification applications.
• Phoenix Input and Link Output — Connectorized input and link output simplify daisy-chaining multiple speakers across a zone.

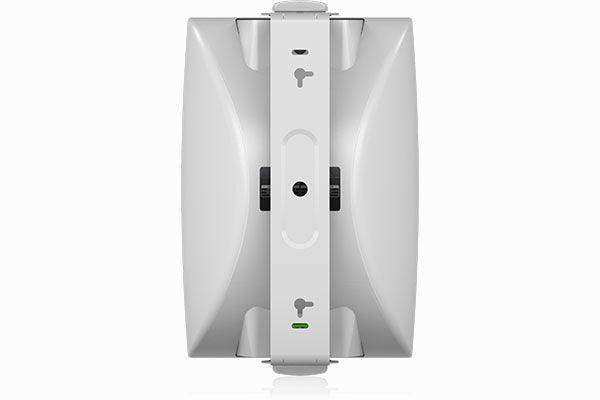

• Included Yoke Bracket — The supplied yoke bracket allows quick mounting and precise aiming on walls or ceilings.
• 10-Year Warranty Program — Backed by Tannoy's 10-year warranty program and engineered in the U.K. for long-term reliability.

Typical Applications

• Conference room
• Commercial meeting space
• Multi-purpose room
• House of worship
• Training room

Technical Specifications

Frequently Asked Questions

Is the DVS 6T-WH sold individually or as a pair?
It is sold as a pair, with two loudspeakers and two yoke brackets per package.

Does it work on 70V and 100V distributed audio systems?
Yes. The integral 60 W transformer provides multiple 70V and 100V taps, and a 6-ohm direct input is available for low-impedance amplifier connections.

Can it be installed outdoors?
The UV- and weather-resistant ABS enclosure is rated to IP64, suiting covered outdoor areas and high-moisture indoor spaces. It is not intended for fully exposed installations.

How do I connect multiple units in a zone?
Phoenix-style input and link-output connectors let you daisy-chain speakers along a distributed line, simplifying wiring across a coverage zone.

What warranty and support are included?
The DVS 6T-WH is covered by Tannoy's 10-Year Warranty Program and is engineered in the U.K. Contact Creation Networks for project pricing and AV system design assistance.
