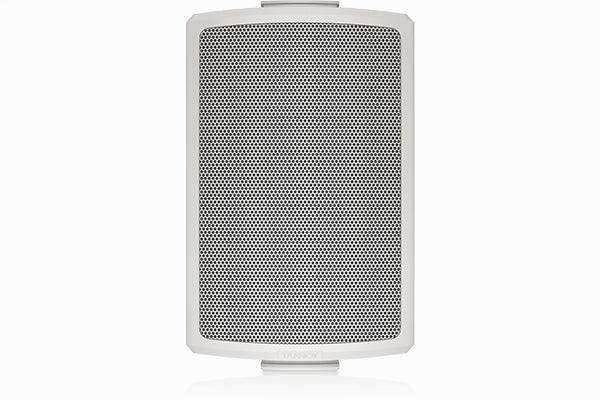

Tannoy AMS 5DC-WH 5" Dual Concentric Surface-Mount Loudspeaker (Pair, White) - TA-AMS5DC-WH

Product Overview

The Tannoy AMS 5DC-WH is a white 5-inch dual concentric surface-mount loudspeaker for background and foreground music in commercial and architectural spaces. Sold as a pair, it pairs a point-source dual concentric driver with an IP65-rated enclosure, making this surface-mount loudspeaker equally at home in dry interiors and wet or dusty environments. Built-in 70V/100V transformer taps and Lab Gruppen LUCIA optimisation let integrators deploy it efficiently across multi-zone distributed audio systems.

Product Description

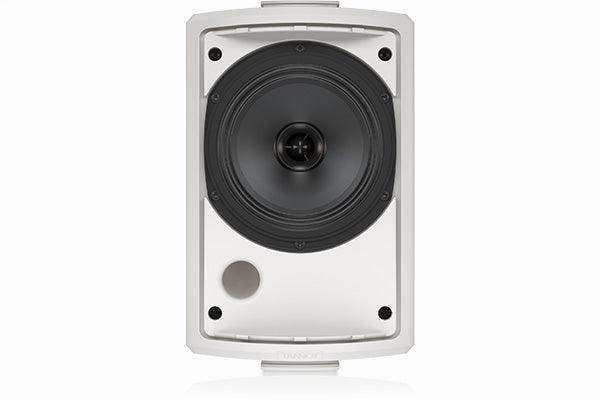

The AMS 5DC-WH is a full-bandwidth, high-sensitivity loudspeaker built around a proprietary 5-inch Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive waveguide, delivering wide, consistent broadband directivity with the linear response of Tannoy's studio monitors. It handles 60 watts continuous and 240 watts peak, suiting stereo or mono music and paging in theme parks, hotels, restaurants and bars, retail stores, corporate AV rooms, residential developments, and houses of worship. Because the AMS 5DC-WH shares a sonic signature with Tannoy ceiling loudspeakers, it integrates cleanly into multi-zone designs that mix wall- and ceiling-mounted units. The semi matt white moulded enclosure achieves an IP65 rating, making it suitable for indoor swimming pools, saunas, high-dust work areas, and covered outdoor applications in moderate weather. An integral low-insertion-loss 30 W transformer provides 70V and 100V taps via a front rotary switch, with low-impedance 16-ohm operation also available. Installation is quick using the included colour-matched yoke bracket, and an optional VARIBALL multi-angle bracket is available separately. This surface-mount loudspeaker is part of the wider Tannoy commercial loudspeaker collection; for the same model in a darker finish, compare the Tannoy AMS 5DC in black.

Key Features

• 5" Dual Concentric Driver — A point-source driver with Omnimagnet technology delivers coherent, wide-directivity audio with enhanced intelligibility.
• IP65 Weather Resistance — The moulded enclosure is rated IP65 for pools, saunas, high-dust areas, and covered outdoor installations in moderate weather.
• 240 W Peak Power Handling — Rated at 60 watts continuous and 240 watts peak for foreground music headroom.
• 70V / 100V Transformer Taps — An integral 30 W transformer with a front rotary switch supports distributed lines plus 16-ohm low-impedance operation.
• Lab Gruppen LUCIA Optimised — Tuned for LUCIA amplifiers with up to eight AMS-series loudspeakers per channel for efficient multi-zone systems.
• Multi-Zone Sonic Match — Shares a tonal signature with Tannoy ceiling loudspeakers for consistent coverage across wall- and ceiling-mounted zones.
• Weatherproof Connectivity — An included cable gland protects the Phoenix input and link-output connectors for daisy-chaining.
• Fast Yoke Mounting — A colour-matched yoke bracket is included, with an optional VARIBALL multi-angle bracket available separately.
• Studio-Derived Linearity — Linear response inherited from Tannoy studio monitors supports accurate program reproduction.

Typical Applications

• Conference room
• Commercial meeting space
• Multi-purpose room
• House of worship
• Training room

Technical Specifications

Frequently Asked Questions

Is the AMS 5DC-WH sold as a pair?
Yes, it is supplied as a pair, with two loudspeakers and two colour-matched yoke brackets.

Can it be installed in wet or outdoor areas?
Its IP65-rated enclosure suits indoor pools, saunas, high-dust work areas, and covered outdoor applications in moderate weather conditions.

Does it work on 70V and 100V distributed systems?
Yes. The integral 30 W transformer provides multiple 70V and 100V taps via a front rotary switch, with 16-ohm low-impedance operation also available.

Which amplifiers is it optimised for?
It is optimised for Lab Gruppen LUCIA amplifiers, supporting up to eight AMS-series loudspeakers per channel for efficient multi-zone integration.

What warranty and support are included?
The AMS 5DC-WH is backed by Tannoy and engineered in the U.K. Contact Creation Networks for project pricing, AV system design assistance, and warranty support.
