Tannoy DVS 6T 6" Coaxial Surface-Mount Loudspeaker with Transformer (Black,Pair) - TA-DVS6T-BK

Product Overview

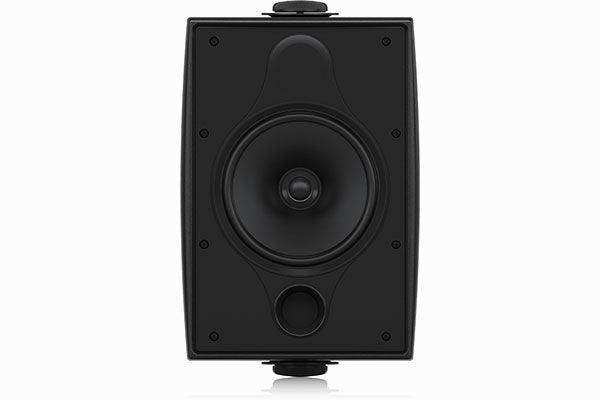

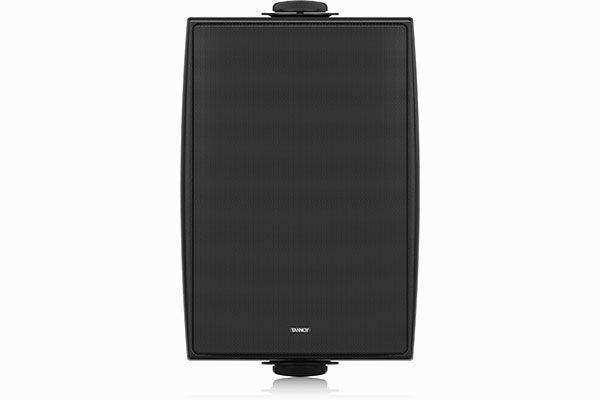

The Tannoy DVS 6T is an ultra-compact 6-inch coaxial surface-mount loudspeaker with a built-in transformer for indoor and outdoor commercial sound reinforcement. Sold as a pair in a black finish, this surface-mount speaker supports 70V/100V distributed line operation and carries an IP64 weather rating, making it well suited to covered exterior areas, hospitality, retail, and corporate AV. Its coaxial driver and included yoke bracket deliver even coverage with quick, aimable installation.

Product Description

The DVS 6T is a full-range 240-Watt surface-mount loudspeaker engineered for a wide variety of sound reinforcement applications, offering strong value and consistent acoustic performance. It suits stereo or mono background and foreground music in theme parks, hotels, restaurants and bars, retail stores, corporate AV, residential developments, and houses of worship. The coaxial design uses a mineral-loaded polypropylene low-frequency driver with a nitrile rubber surround for durability, plus a 0.75-inch ferrofluid-cooled soft-dome neodymium high-frequency driver for clarity, delivering 90-degree constant-directivity coverage. The transformer (T) version provides multiple taps for 70V and 100V distributed line systems with a low-insertion-loss 60 W line transformer and accessible tapping switch. All components are weather resistant to IP64 for outdoor use, housed in a UV- and weather-resistant UL 94 V-0 ABS enclosure with a painted perforated aluminium grille. The unit is UL 1480 certified for general signalling systems, ships with a yoke bracket for fast aimable mounting, and uses Phoenix connectors for input and link output. This model is part of the wider Tannoy collection at Creation Networks; for an in-ceiling alternative with a similar coaxial driver, compare the CVS 6.

Key Features

• Coaxial surface-mount design — A mineral-loaded polypropylene driver with nitrile rubber surround and a 0.75-inch ferrofluid-cooled neodymium tweeter deliver durable full-range output.
• Built-in 70V/100V transformer — The transformer version provides multiple taps for 70V and 100V distributed line systems with a 60 W low-insertion-loss line transformer.
• IP64 weather rating — All components are weather resistant to IP64, supporting use in covered outdoor and indoor environments.
• 90-degree constant directivity — The coaxial layout provides even 90-degree conical coverage for consistent sound across the area.
• 240 W peak power handling — Rated at 60 W continuous and 240 W peak for background and foreground music headroom.
• Durable ABS enclosure — A UV- and weather-resistant UL 94 V-0 ABS enclosure in semi-matt black with a painted aluminium grille withstands demanding environments.

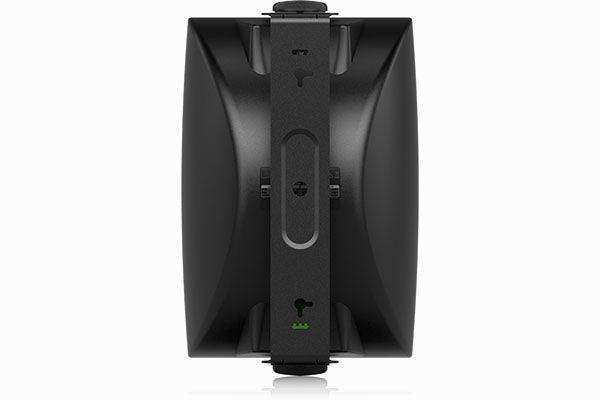

• Included yoke bracket — A yoke bracket ships in the box for fast, aimable surface mounting on walls or ceilings.
• Loop-through wiring — Phoenix connectors for input and link output simplify daisy-chained connections.
• 10-year warranty — Backed by Tannoy's 10-Year Warranty Program for long-term commercial reliability.

Typical Applications

• House of worship
• Conference room
• Commercial meeting space
• Multi-purpose room
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Can the DVS 6T run on a 70V or 100V distributed line system?
Yes. This is the transformer (T) version, which provides multiple taps for both 70V and 100V distributed line systems through an accessible tapping switch.

Can it be installed outdoors?
All components are weather resistant to IP64, and the UL 94 V-0 ABS enclosure is UV and weather resistant, supporting use in covered outdoor and exposed indoor locations.

How is it mounted and aimed?
A yoke bracket ships in the box, allowing the loudspeaker to be surface mounted on a wall or ceiling and angled toward the listening area.

Does it support daisy-chained wiring?
Yes. Euroblock-type removable locking connectors provide input and link output with a loop-through facility for chaining multiple units.

What warranty and support are included?
The loudspeaker is covered by Tannoy's 10-Year Warranty Program. Contact Creation Networks for specification support and a project quote.
