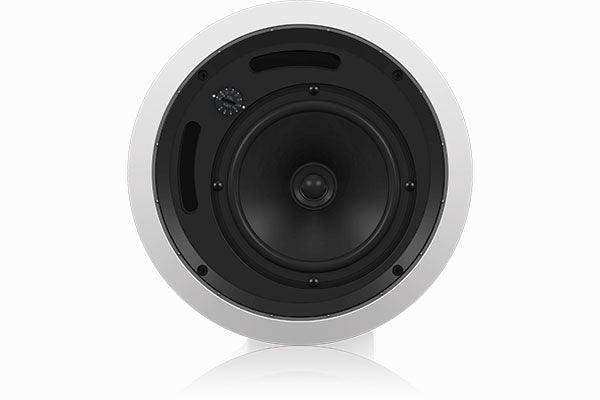

Tannoy CVS 6 6" Coaxial In-Ceiling Loudspeaker (Pair) - TA-CVS6

TannoySKU: TA-CVS6
No reviews

Price:
Sale price$498.00

Description

(Sold as a pair)

The CVS 6 is a compact 240-Watt ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 6 offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding.



  • Coaxial full range ceiling loudspeaker for installation applications

  • 60 Watts continuous, 240 Watts peak power

  • 6" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability

  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver

  • Wide constant directivity dispersion for optimum coverage

  • UL 1480 certified for fire-protected signalling systems

  • UL 2043 certified for air-handling spaces

  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure

  • Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input

  • Low insertion loss 60 W line transformer with easily accessible tapping switch

  • Semi matt white finish fits unobtrusively in any environment

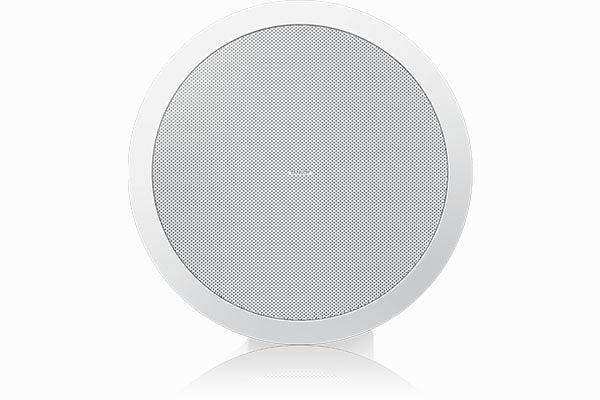

  • Powder coated perforated steel mesh grille with dust protection

  • Mounting C-ring and ceiling tile rails included

  • Phoenix* connector with steel cover and strain relief clamping mechanism for fire rated cable

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

Performance
Frequency Response (-3 dB) (1)

79 Hz - 21 kHz

Frequency Range (-10 dB) (1)

60 Hz - 24 kHz

System Sensitivity (1 W @ 1 m) (2)

91 dB (1 W = 2.45 V for 6 Ohms)

Nominal Coverage Angle

90 degrees conical

Coverage Angle (1 kHz to 6 kHz)

93 degrees conical

Directivity Factor (Q)

7.7 averaged 1 kHz to 6 kHz

Directivity Index (DI)

8 averaged 1 kHz to 6 kHz

Rated Maximum SPL (2)

Average: 109 dB
Peak: 115 dB

Power Handling (3)

Average: 60 W
Programme: 120 W
Peak: 240 W

Recommended Amplifier Power

120 W @ 6 Ohms

Nominal Impedance

6 Ohms

Transformer Taps (via front rotary switch)

70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation
100 V: 60 W / 30 W / 15 W / OFF & low impedance operation

TRANSDUCERS
Low Frequency

150 mm (6.00") mineral loaded polypropylene ICT™

High Frequency

19 mm (0.75")

PHYSICAL
Enclosure

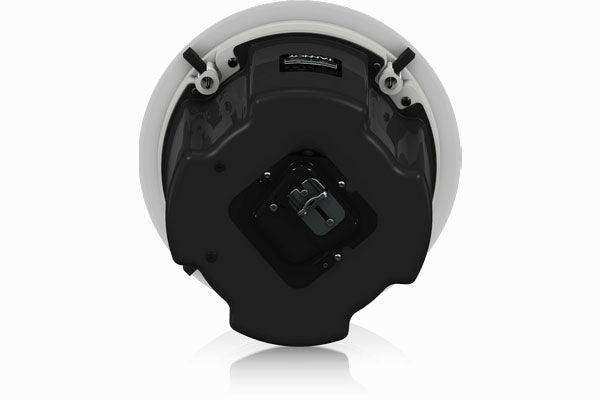

Back Can: Zinc plated steel
Baffle: Reflex loaded UL 94 V-0 rated ABS
Grille: Steel, with weather resistant coating

Safety Features

Safety ring located at rear of enclosure for load bearing safety bond

Clamping Design

Security toggle clamp


Back Can Options
Cable Entry Options

Cable clamp & squeeze connector for conduit up to 22 mm

Connectors

Removable locking connector with screw terminals with “loop through” facility

Safety Agency Ratings

UL-1480, UL-2043, CE

Hole Cutout Diameter

250 mm (9.84")

Dimensions Bezel diameter

279.5 mm (11.01")

Front of ceiling to rear of back can

246.5 mm (9.70")

Front of ceiling to top of safety loop

258.5 mm (10.18")

Net Weight (ea)

5.7 kg (12.6 lbs)

Included Accessories

C Ring, tile bridge, paint mask, cutout template, grille

Optional Accessories

Plaster (mud) ring
