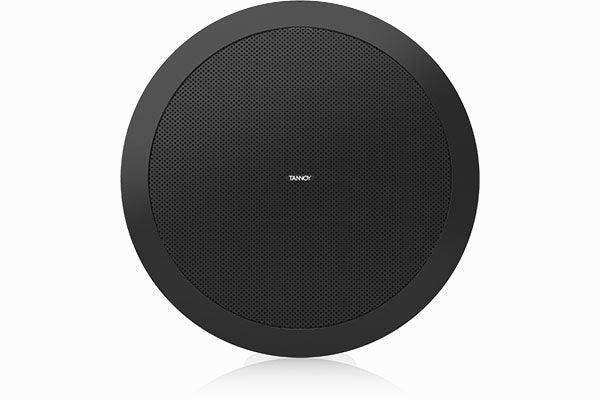

Tannoy CVS 601-BK 6.5" Coaxial Ceiling Loudspeaker (Black, Pair) - TA-CVS 601-BK

Product Overview

The Tannoy CVS 601-BK 6.5-inch coaxial ceiling loudspeaker (sold as a pair) is a black-finish 200-watt speaker engineered for background and foreground music in commercial sound systems. Its coaxial driver delivers wide constant-directivity coverage with low distortion, and EN 54-24 certification makes it suitable for voice-alarm and life-safety applications. Multiple 70V/100V transformer taps and UL 2043 plenum certification make it ideal for conference rooms, meeting spaces, and air-handling ceilings where safety is a priority.

Product Description

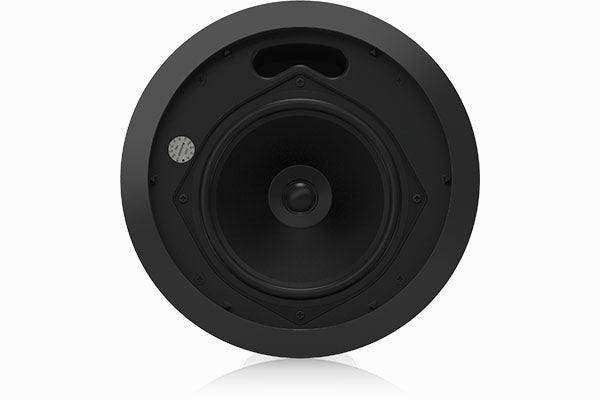

The CVS 601-BK combines a 6.5" polypropylene woofer with a butyl rubber surround and a 0.75" ferrofluid-cooled soft-dome high-frequency driver for durable, long-term reliability. The coaxial layout produces a single point source with wide constant-directivity dispersion, delivering the power handling, wide frequency response, and low distortion typically found in more expensive products. EN 54-24:2008 Type A certification for fire detection and fire alarm systems makes the CVS 601-BK the right choice where safety is a top priority.

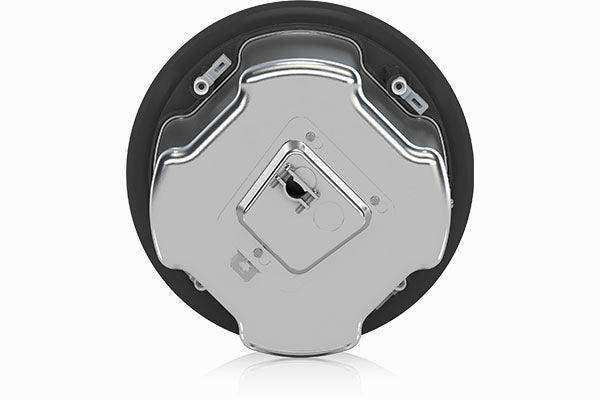

The speaker is UL 1480 certified for fire-protected signalling systems and UL 2043 certified for air-handling spaces. Multiple transformer taps support 70V and 100V distributed-line systems, or an 8-ohm direct input for low-impedance operation, served by a low-insertion-loss 30 W line transformer with an accessible tapping switch. The plated-steel fire-can enclosure with UL 94 V-0 and 94-5VB ABS front, semi-matt black finish, and powder-coated aluminium grille keep the speaker discreet, while an included C-ring, ceiling-tile rails, and steel cable-clamp cover speed installation with fire-rated cable. Explore the full Tannoy collection at Creation Networks, or compare the smaller Tannoy CVS 4 in-ceiling loudspeaker.

Key Features

• 6.5" Coaxial Point-Source Driver — A polypropylene woofer with butyl surround and 0.75" tweeter share a single axis for wide, even coverage.
• EN 54-24 Type A Certified — Approved for fire detection and fire alarm systems, suiting voice-alarm and life-safety installations.
• 70V/100V and 8Ω Operation — Multiple transformer taps support distributed-line systems or direct low-impedance use via a 30 W line transformer.
• UL 2043 Plenum Rated — Certified for air-handling spaces, supporting code-compliant installation above suspended ceilings.
• UL 1480 Certified — Approved for fire-protected signalling systems.
• 200 W Peak Power — 50 W continuous handling with low distortion delivers clear background and foreground audio.
• Fire-Rated Cable Support — Steel cover and strain-relief clamping mechanism accommodate fire-rated cabling.
• 10-Year Warranty Program — Backed by Tannoy's extended warranty and UK engineering.

Typical Applications

• Conference room
• Commercial meeting space
• House of worship
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

Is the CVS 601-BK suitable for voice-alarm systems?
Yes. It carries EN 54-24:2008 Type A certification for fire detection and fire alarm systems, making it appropriate for life-safety installations.

Does it support 70V and 100V systems?
Yes. Multiple transformer taps support 70V and 100V distributed-line systems, or an 8-ohm direct input for low-impedance operation.

Is it safe to install in a plenum ceiling?
Yes. The speaker is UL 2043 certified for air-handling spaces and UL 1480 certified for fire-protected signalling systems.

Can it be wired with fire-rated cable?
Yes. A steel cover and strain-relief clamping mechanism accommodate fire-rated cable installations.

What warranty applies?
The CVS 601-BK is covered by Tannoy's 10-Year Warranty Program. Contact our team for AV system design and integration support.
