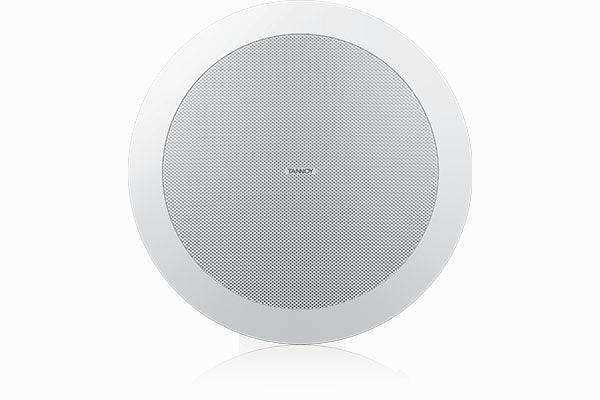

Tannoy CVS 4 4" Coaxial In-Ceiling Loudspeaker (Pair) - TA-CVS4

Availability: Call for Availability
Availability: Direct Ship
Tannoy SKU: TA-CVS4
No reviews
Price:
$258.00

Description

(Sold as a pair)

The CVS 4 is a compact 160-Watt ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 4 offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding.



  • Coaxial full range ceiling loudspeaker for installation applications

  • 40 Watts continuous, 160 Watts peak power

  • 4" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability

  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver

  • Wide constant directivity dispersion for optimum coverage

  • UL 1480 certified for fire-protected signalling systems

  • UL 2043 certified for air-handling spaces

  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure

  • Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input

  • Low insertion loss 30 W line transformer with easily accessible tapping switch

  • Semi matt white finish fits unobtrusively in any environment

  • Powder coated perforated steel mesh grille with dust protection

  • Mounting C-ring and ceiling tile rails included

  • Phoenix* connector with steel cover and strain relief clamping mechanism for fire rated cable

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

System
Frequency response (-3 dB)1

85 Hz - 19 kHz
Frequency response (-10 dB)1

77 Hz - 22 kHz
System Sensitivity (1 W @ 1 m)2

87 dB (1 W = 2.45 V for 6 Ohms)
Nominal Coverage Angle

90 degrees conical
Coverage Angle (1 kHz to 6 kHz)

102 degrees
Directivity Factor (Q)

5.6 averaged 1 kHz to 6 kHz
Directivity Index (DI)

7.1 averaged 1 kHz to 6 kHz
Rated Maximum SPL

103 dB (average)
109 dB (peak)
Power Handling3

Average: 40 W

Programme: 80 W

Peak: 160 W
Recommended Amplifier Power

80 W @ 6 Ohms
Nominal Impedance

6 Ohms
Transformer Taps (via front rotary switch)

70 V: 30 W / 15 W / 7.5 W / 3.75 W / OFF & low impedance operation

100 V: 30 W / 15 W / 7.5 W / OFF & low impedance operation

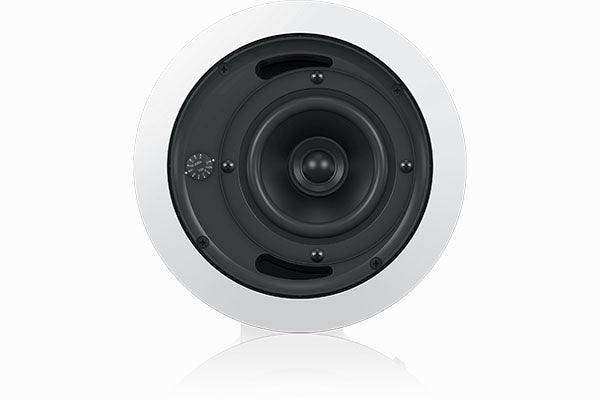

Transducers
Low Frequency

100 mm (4.00")
mineral loaded cone material
High Frequency

19 mm (0.75")
Physical

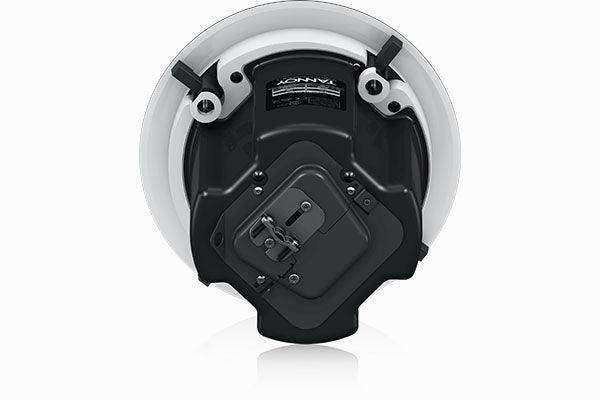

Enclosure

Back can: Zinc plated steel | Painted steel

Baffle: Reflex loaded UL 94V-0 rated ABS

Grille: Steel, with weather resistant coating
Safety Features

Safety ring located at rear of enclosure for
load bearing safety bond
Clamping Design

Security toggle clamp
Back Can Options
Cable Entry Options

Cable clamp & squeeze connector for
conduit up to 22 mm
Connectors

Removable locking connector with screw
terminals with “loop through” facility
Safety Agency Ratings

UL-1480, UL-2043, CE
Hole Cutout Diameter

180 mm (7.08")
Dimensions Bezel diameter

213.0 mm (8.39")
Front of ceiling to rear of back can

98.3 mm (3.87")
Front of ceiling to top of safety loop

46.5mm (1.83")
Net Weight (ea)

3.6 kg (7.9 lbs)
Included Accessories

C Ring, tile bridge, paint mask,
cutout template, grille
Optional Accessories

Plaster (mud) ring
