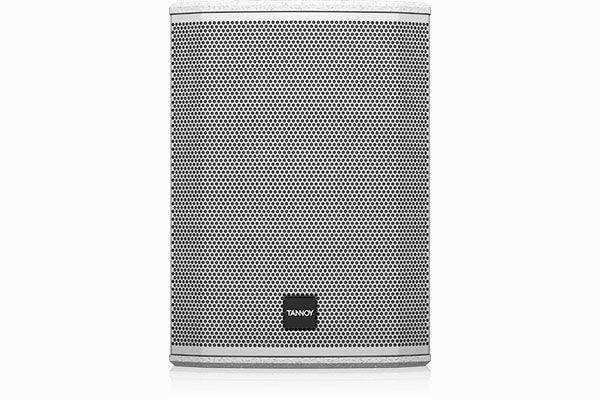

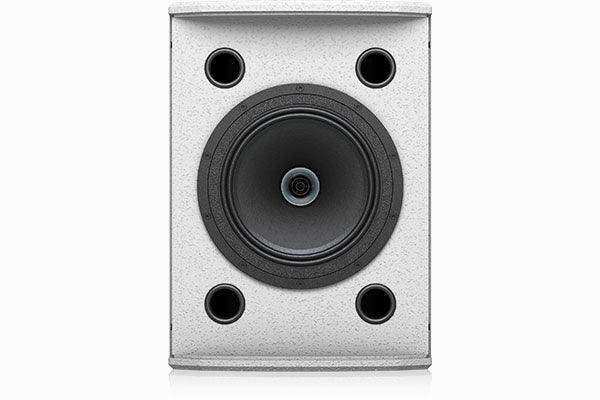

Tannoy VXP 8-WH-UL 8" Dual Concentric Powered Sound Reinforcement Loudspeaker (Pair,White) - TA-VXP8-WH
Tannoy VXP 8-WH-UL 8" Dual Concentric Powered Sound Reinforcement Loudspeaker (Pair,White) - TA-VXP8-WH is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Tannoy VXP 8-WH-UL 8" Dual Concentric Powered Sound Reinforcem...
VXP 8-WH
Sold as a pair, The VXP 8-WH may be one of the smaller Dual Concentric full range loudspeakers in the VXP range, but it boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 8-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 8-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Features
-
Full range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications
-
1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification
-
8" Dual Concentric full range driver for point source phase coherence
-
Tightly controlled 90º dispersion for optimum coverage and forward projection
-
Ideal for FOH, floor monitor, delay and stage front fill applications
-
Switchable full range or high pass filter operation
-
Vented and internally braced plywood enclosure
-
Finished with hard wearing semi matt white paint
-
Rugged powder coated perforated steel mesh grille
-
Blanking plate for optional VTH pole mount
-
Versatile mounting via optional custom designed hardware
-
Fully balanced input and link output on Neutrik* XLR connectors
-
Neutrik powerCON* for a secure locking mains power connection
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
System
| Frequency response (Full range mode) |
80 Hz - 35 kHz ±3 dB |
| Frequency response (Hi-pass mode) |
120 Hz - 35 kHz ±3 dB |
| Nominal dispersion |
90° conical @ -6 dB point |
| Directivity factor (Q) |
6.8 |
| Directivity index (DI) |
7.9 |
| Dynamic range |
106 dB |
| Maximum SPL |
125 dB peak |
| Crossover type |
Passive 1.7 kHz with dynamic HF protection |
| Transducers |
200 mm (1 x 8") constant directivity Dual Concentric™ |
| Amplifier | |
| Maximum output power* |
1600 W |
| Type |
Class-D |
| Protection |
Output current limiter, clip limiter, brownout protection and recovery, thermal |
| Connectors | |
| Input |
1 x XLR, balanced |
| Input impedance |
10 kΩ unbalanced, |
| Maximum input level for clip |
+4.5 dBu (hard clip at +14.5 dBu input signal) |
| Link |
1 x XLR |
| Mains Supply |
Neutrik powerCON 20A† |
| Controls | |
| Level |
Recessed potentiometer |
| Filter |
Hi-pass (HPF)/ full range (FR), switchable |
| Power mode |
Manual (MAN)/ auto (AUTO), switchable |
| Power Supply | |
| Type |
Switch-mode autorange power supply |
| Mains voltage |
100-240 V~, 50/60 Hz |
| Power consumption |
75 W @ 1⁄8 max power |
| Enclosure | |
| Dimensions (HWD) |
389 x 281 x 276 mm (15.3 x 11.1 x 10.9") |
| Net weight |
10.1 kg (22.2 lbs) |
| Construction |
15 mm (5⁄8") plywood, vented and internally braced |
| Finish |
Semi matt black paint (white optional) |
| Grille |
Powder coated perforated steel |
| Flying hardware |
2 x M10 fl ying inserts 2 x M10 yoke bracket |
| Accessories | |
| Yoke Horizontal VX8<br/>Yoke Horizontal VX8 - WH<br/>Yoke Vertical VX8/VX8.2<br/>Yoke Vertical VX8/VX8.2 - WH<br/>VTH Top Hat |
