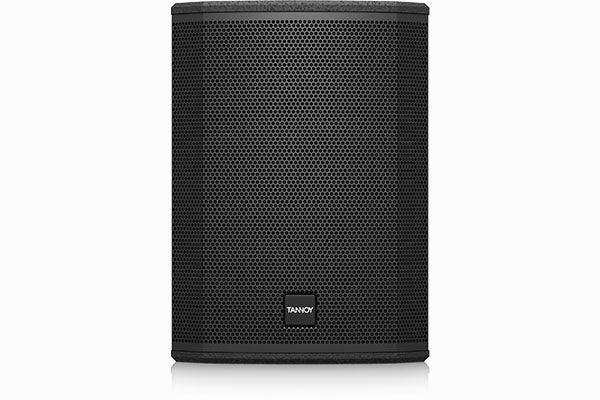

Sold as a pair, The VXP 8 may be one of the smaller Dual Concentric full range loudspeakers in the VXP range, but it boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 8 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. The VXP 8 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Features
-
Full range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications
-
1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification
-
8" Dual Concentric full range driver for point source phase coherence
-
Tightly controlled 90º dispersion for optimum coverage and forward projection
-
Ideal for FOH, floor monitor, delay and stage front fill applications
-
Switchable full range or high pass filter operation
-
Vented and internally braced plywood enclosure
-
Finished with hard wearing semi matt black paint
-
Rugged powder coated perforated steel mesh grille
-
Blanking plate for optional VTH pole mount
-
Versatile mounting via optional custom designed hardware
-
Fully balanced input and link output on Neutrik* XLR connectors
-
Neutrik powerCON* for a secure locking mains power connection
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
Data Sheet
System
| Frequency response (Full range mode) |
80 Hz - 35 kHz ±3 dB
67 Hz - 45 kHz -10 dB
|
| Frequency response (Hi-pass mode) |
120 Hz - 35 kHz ±3 dB
100 Hz - 45 kHz -10 dB
|
| Nominal dispersion |
90° conical @ -6 dB point
|
| Directivity factor (Q) |
6.8
|
| Directivity index (DI) |
7.9
|
| Dynamic range |
106 dB
|
| Maximum SPL |
125 dB peak
|
| Crossover type |
Passive 1.7 kHz with dynamic HF protection
|
| Transducers |
200 mm (1 x 8") constant directivity Dual Concentric™
|
| Amplifier |
|
| Maximum output power* |
1600 W
|
| Type |
Class-D
|
| Protection |
Output current limiter, clip limiter, brownout protection and recovery, thermal
|

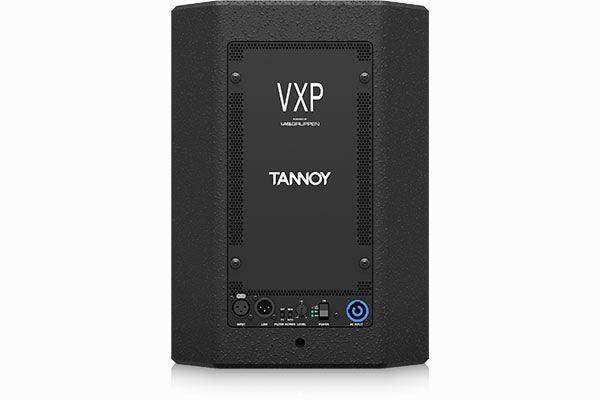

| Connectors |
|
| Input |
1 x XLR, balanced
|
| Input impedance |
10 kΩ unbalanced,
20 kΩ balanced
|
| Maximum input level for clip |
+4.5 dBu (hard clip at +14.5 dBu input signal)
|
| Link |
1 x XLR
|
| Mains Supply |
Neutrik powerCON 20A†
|
| Controls |
|
| Level |
Recessed potentiometer
|
| Filter |
Hi-pass (HPF)/ full range (FR), switchable
|
| Power mode |
Manual (MAN)/ auto (AUTO), switchable
|
| Power Supply |
|
| Type |
Switch-mode autorange power supply
|
| Mains voltage |
100-240 V~, 50/60 Hz
|
| Power consumption |
75 W @ 1⁄8 max power
|
| Enclosure |
|
| Dimensions (HWD) |
389 x 281 x 276 mm (15.3 x 11.1 x 10.9")
|
| Net weight |
10.1 kg (22.2 lbs)
|
| Construction |
15 mm (5⁄8") plywood, vented and internally braced
|
| Finish |
Semi matt black paint (white optional)
|
| Grille |
Powder coated perforated steel
|
| Flying hardware |
2 x M10 fl ying inserts 2 x M10 yoke bracket
inserts (6 mm allen key)
Blanking plate for optional VTH pole mount
|
| Accessories |
|
| Yoke Horizontal VX8<br/>Yoke Horizontal VX8 - WH<br/>Yoke Vertical VX8/VX8.2<br/>Yoke Vertical VX8/VX8.2 - WH<br/>VTH Top Hat |
|
