Tannoy CMS 803DC PI 8" Full Range Ceiling Loudspeaker with Dual Concentric Driver (Pre-Install,Pair) - TA-CMS803DC-PI

Product Overview

The Tannoy CMS 803DC PI is an 8-inch dual concentric ceiling loudspeaker built for full-bandwidth speech and music reinforcement in commercial AV installations. Sold as a pre-install pair, this ceiling speaker pairs an 8" Dual Concentric point-source driver with Omnimagnet technology and a Torus Ogive waveguide to deliver wide, consistent broadband directivity and high intelligibility. As the pre-install (PI) version it ships without a back can for rough-in during construction, and it supports 70V/100V line operation or 16-ohm direct input. UL 1480 and UL 2043 certification suit plenum and air-handling ceiling spaces.

Product Description

The CMS 803DC PI uses Tannoy's third-generation Ceiling Monitor System (CMS 3.0) technology to provide accurate, linear response with high sensitivity. The point-source dual concentric driver places the high-frequency unit at the acoustic center of the low-frequency cone, producing phase-coherent coverage that simplifies speaker spacing in conference rooms, lobbies, and open commercial spaces. Rated at 90 W continuous and 360 W peak, the system delivers the output needed for demanding background music and paging duty.

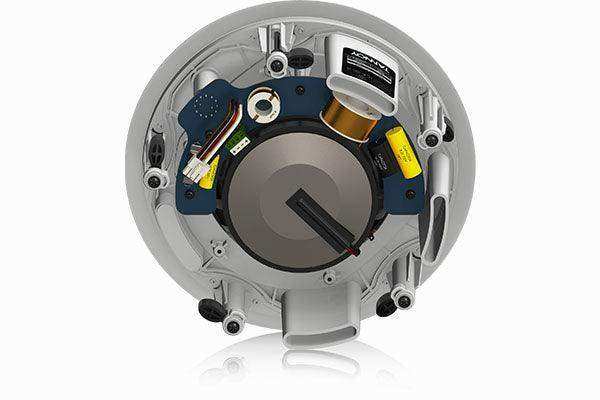

As the pre-install (PI) model, the CMS 803DC PI ships without a back can so integrators can rough-in the cutout during new construction and add the back can later; the optional CMS 603 PI back can houses a low-insertion-loss 60 W line transformer with an accessible front tap switch, enabling 70V/100V operation or 16-ohm direct input. The speaker is optimized for Lab Gruppen LUCIA amplifiers, supporting up to eight CMS-series loudspeakers per channel in low-impedance mode. A self-aligning 5-way clamp system, included C-ring, and ceiling tile rails support fast, secure mounting, and a removable magnetic grille is paintable and accepts optional ARCO designer grilles. Browse the full Tannoy collection at Creation Networks, or compare the blind-mount variant, the CMS 803DC BM, for retrofit installs.

Key Features

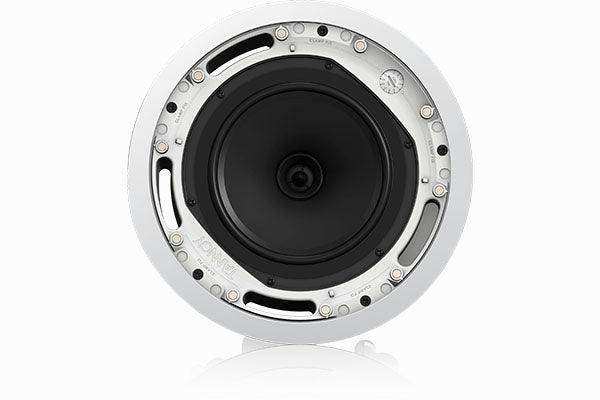

• 8" Dual Concentric point-source driver — The Omnimagnet driver places the HF unit at the cone's acoustic center for phase-coherent, intelligible coverage.
• Torus Ogive waveguide — A purpose-designed waveguide improves high-frequency response and controls directivity.
• Pre-install design — Shipping without a back can lets integrators rough-in the cutout during construction and add the optional CMS 603 PI back can later.
• 70V/100V and 16-ohm operation — With the optional back can, multiple transformer taps support distributed line systems or direct low-impedance connection.
• UL 1480 and UL 2043 certified — The speaker is rated for general signalling systems and for installation in air-handling plenum spaces.
• LUCIA amplifier optimization — Up to eight CMS-series loudspeakers can run per channel in low-impedance mode with Lab Gruppen LUCIA amplifiers.
• Self-aligning 5-way clamp system — Included C-ring and ceiling tile rails secure the speaker quickly in tile or drywall ceilings.

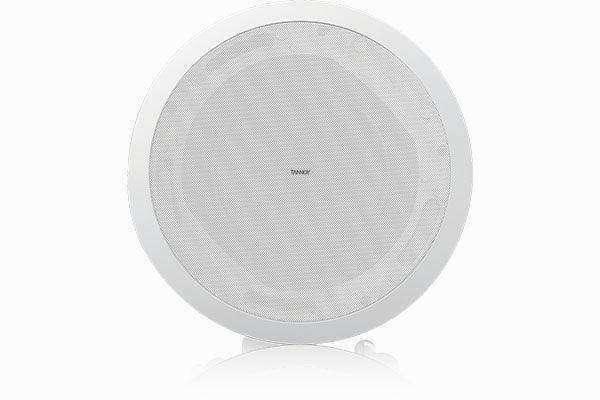

• Removable paintable grille — The UV-resistant perforated steel grille is paintable and accepts optional ARCO designer grilles for low architectural impact.

Typical Applications

• Conference room
• Commercial meeting space
• Boardroom
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

What is the difference between the PI and BM versions?
The pre-install (PI) model ships without a back can for rough-in during new construction, while the blind-mount (BM) model ships as a single unit with a fixed back can for fast installation.

Does it run on 70V/100V distributed systems?
Yes. When fitted with the optional CMS 603 PI back can, it offers multiple 70V and 100V transformer taps and can also run at 16 ohms low impedance.

Is it safe to install in a plenum ceiling space?
Yes. The speaker is UL 2043 certified for air-handling spaces and UL 1480 certified for general signalling systems.

How many speakers can run per amplifier channel?
In low-impedance mode with Lab Gruppen LUCIA amplifiers, up to eight CMS-series loudspeakers can be driven per channel.

Is it sold individually or as a pair?
This listing is for a pair. Our AV team can scope the right quantity and back-can option for your project and provide a quote.
