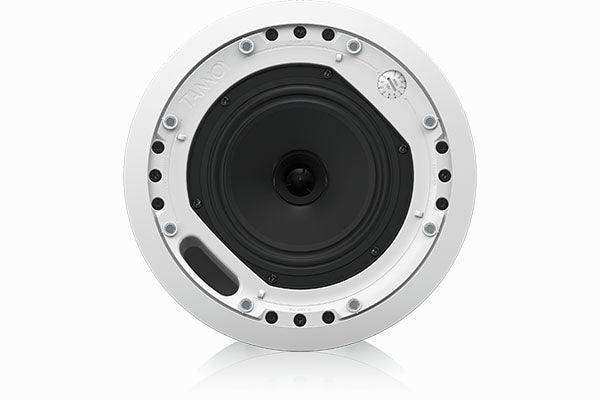

Tannoy CMS 803DC BM 8" Full Range Ceiling Loudspeaker with Dual Concentric Driver (Blind-Mount,Pair) - TA-CMS803DC-BM

Availability: Call for Availability
Availability: Direct Ship
Tannoy SKU: TA-CMS803DC-BM
No reviews
Price:
$1,058.00

Description

(Sold as a pair)

The CMS 803DC BM is a full bandwidth 360-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 8" Dual Concentric pointsource driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certifi ed CMS 803DC BM delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.



  • Full range ceiling loudspeaker for installation applications

  • 90 Watts continuous, 360 Watts peak power

  • Next generation 8" Dual Concentric driver featuring Omnimagnet technology

  • Torus Ogive waveguide for improved high frequency response and directivity

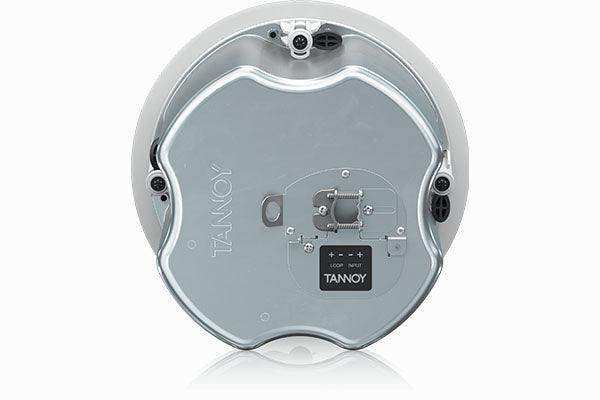

  • Blind Mount version supplied with acoustically enhanced zinc plated steel back can

  • Integrated single unit construction for ease of installation

  • UL 1480 certified for general signalling systems

  • UL 2043 certified for air-handling spaces

  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input

  • Low insertion loss 60 W line transformer with easily accessible tapping switch

  • Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel

  • Semi matt white finish fits unobtrusively in any environment

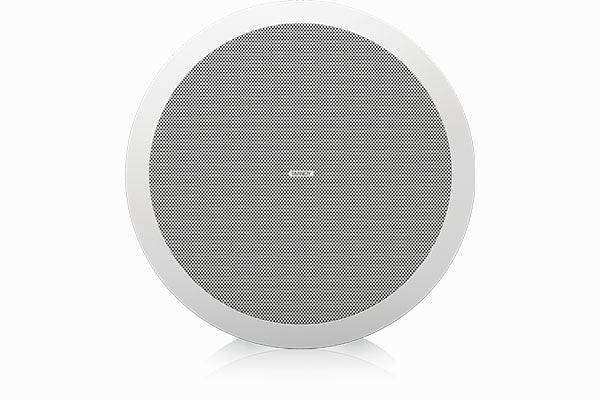

  • Powder coated UV resistant perforated steel mesh grille with dust protection

  • Removable magnetic grille for custom painting

  • Optional ARCO designer grilles available for minimal architectural impact

  • Self-aligning 5 way clamp mounting system

  • Mounting C-ring and ceiling tile rails included

  • 10-Year Warranty Program*

  • Designed and engineered in England

Data Sheet



Performance
Frequency response (-3 dB) (1)

47 Hz - 30 kHz BM Backcan
Frequency range (-10 dB) (1)

40 Hz - 35 kHz BM Backcan
Frequency range (-10 dB) (1)

41 Hz - 35 kHz PI Backcan
System sensitivity (1 W @ 1 m) (2)

92 dB (1 W = 4 V for 16 Ohms)
Nominal coverage angle

90 degrees conical
Power handling (3)
Average

90 W
Programme

180 W
Peak

360 W
Recommended amplifier power

180 W @ 16 Ohms
Nominal impedance (Lo, Z)

16 Ohms
Rated maximum SPL
Average

112 dB
Peak

118 dB
With THP60 - average

110 dB
Transformer taps (via front rotary switch)
70 V

60 W (83 Ω) / 30 W (165 Ω) /15 W (330 Ω) / 7.5 W (660 Ω) /OFF & low impedance operation
100 V

60 W (165 Ω) / 30 W (330 Ω) /15 W (660 Ω) / OFF & lowimpedance operation
Transducers
Dual concentric point source driver

1 x 200 mm (8.0") Dual Concentricdriver, using Omnimagnet technology
Low frequency

44 mm (1.75") voice coil, treated multifiber paper pulp cone
High frequency

25 mm (1.00") PEI dome
Physical
Enclosure
Backcan

Zinc plated steel
Baffle

Reflex loaded UL 94V-0 rated ABS
Grille

Steel, with weather resistant coating
Safety features

Safety ring located at rear of enclosurefor load bearing safety bond
Clamping design

Security toggle clamp Min / Maxclamping range 9.5 mm (0.37") /60 mm (2.36") Recommendedclamp torque: 1.5 Nm
Backcan options
Blind mount (BM)

Complete with fi xed backcan
Pre install (PI)

Separate backcan for pre-installation
Cable entry options

Cable clamp & squeeze connector forconduit up to 22 mm
Conduit knockouts on PI Backcan

3 Sets of horizontal positions19 / 22 / 28 mm (0.75" / 0.87" / 1.10")
Connectors

Removable locking connectorwith screw terminals with“loop through” facility
Compliance

UL-1480, UL-2043, CE
Physical
Dimensions
Bezel diameter

319.0 mm (12.56")
Front of ceiling to rear of backcan

-
Front of ceiling to top of safety loop

-
BM model: Front of ceiling to rear of backcan

310.5 mm (12.22")
BM model: Front of ceiling to top of safety loop

327.7 mm (12.90")
PI model: Front of ceiling surface to rear of speaker unit

125.6 mm (4.94")
PI model: Front of accessory backcan bezel to top of safety loop

168.5 mm (6.63")
Hole cutout diameter (all models)

295 mm (11.61")
Net weight (ea)
CMS 803DC BM

8.5 kg (18.74 lbs)
CMS 803DC PI

5.0 kg (11.02 lbs)
PI Backcan

3.7 kg (8.1 lbs)
Included accessories

C-Ring, tile-bridge kit, paint mask,cut-out template, grille
Optional accessories

Plaster (mud) ring, Arco grille
