Product Overview

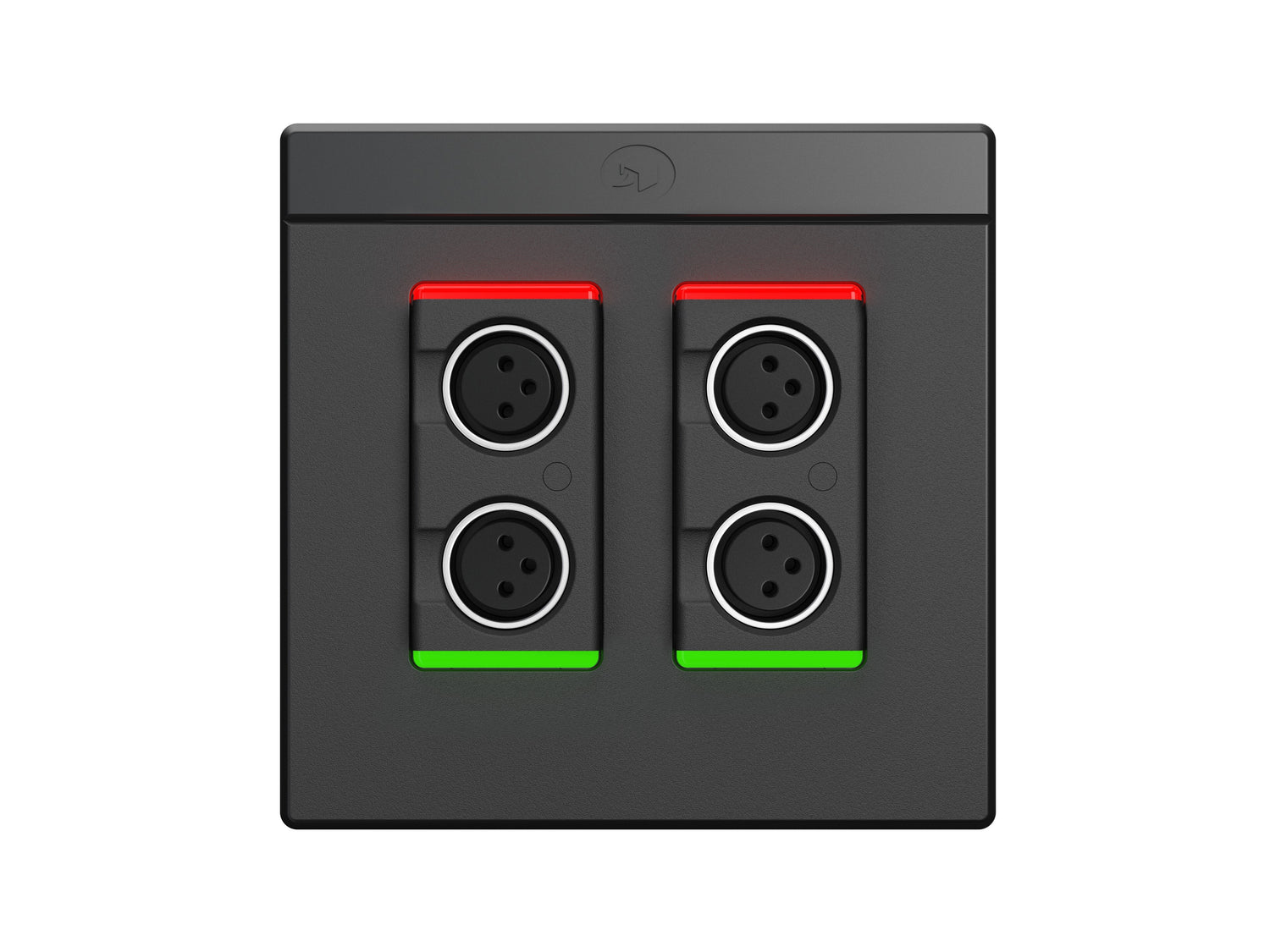

The Symetrix 80-0225 xIn XLR 4 is a Dante wall plate endpoint in black for US single-gang electrical boxes, providing four balanced XLR microphone/line inputs with no analog outputs. It is the black-finish variant of the 80-0213 white, with identical four-channel input-only Dante performance in a black Decora finish. Powered over Ethernet via IEEE 802.3af PoE; 48 kHz and 96 kHz support; 1 ms minimum Dante latency. Configured in Symetrix Composer within the DSP site file.
Key Features
- 4 Balanced XLR Inputs — Four mic/line inputs on one US single-gang wall plate; input-only.
- 4 Dante Transmit Channels + AES67 — PoE IEEE 802.3af.
- US Single-Gang, Black — Decora-style black finish.
- 48 and 96 kHz — High-resolution audio conversion.
- Composer Programmable — Configured in Symetrix Composer.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 80-0225 |
| Analog Inputs | 4 balanced XLR mic/line |
| Analog Outputs | None |
| Dante Channels | 4 transmit |
| AES67 | Supported |
| Sample Rates | 48 kHz, 96 kHz |
| Min Dante Latency | 1 ms |
| Power | PoE IEEE 802.3af |
| Form Factor | US single-gang Decora, black |
| Chassis | Die-cast zinc |
