Symetrix 80-0213 xIn XLR 4, White, US

Product Overview

The Symetrix 80-0213 xIn XLR 4 is a Dante wall plate endpoint providing four balanced XLR microphone/line inputs in a US single-gang form factor, purpose-built for commercial AV installations requiring multiple microphone or line inputs at a single wall location. This quad-input XLR Dante wall plate is designed for podiums, panel stages, conference tables, and presentation walls where four independent audio sources must be captured and routed to a Symetrix DSP without running four separate analog cable runs back to the equipment rack. The xIn XLR 4 integrates natively with Symetrix Radius NX, Prism, EDGE, and Server D100 via Symetrix Composer. Available in a white finish.

Product Description

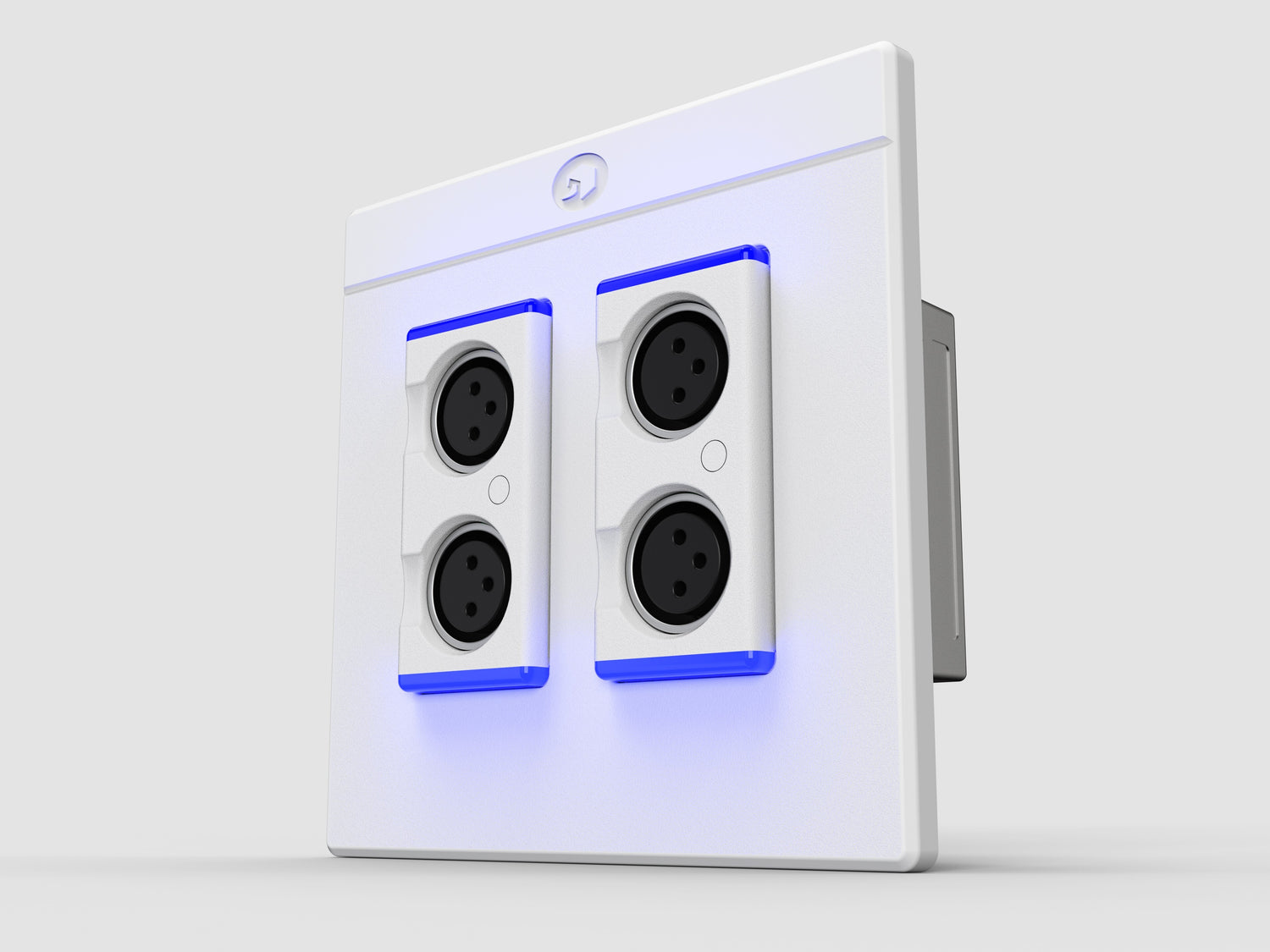

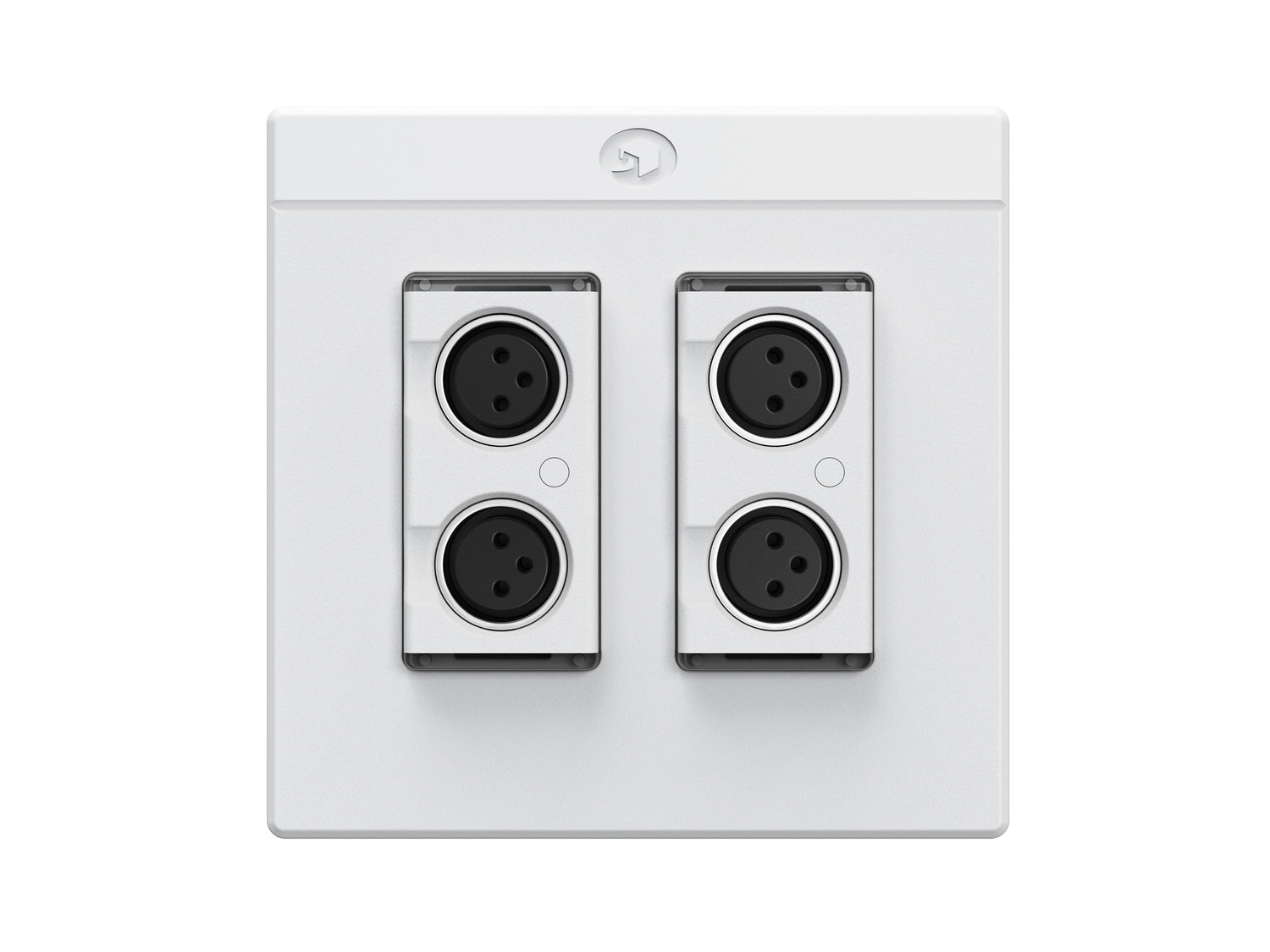

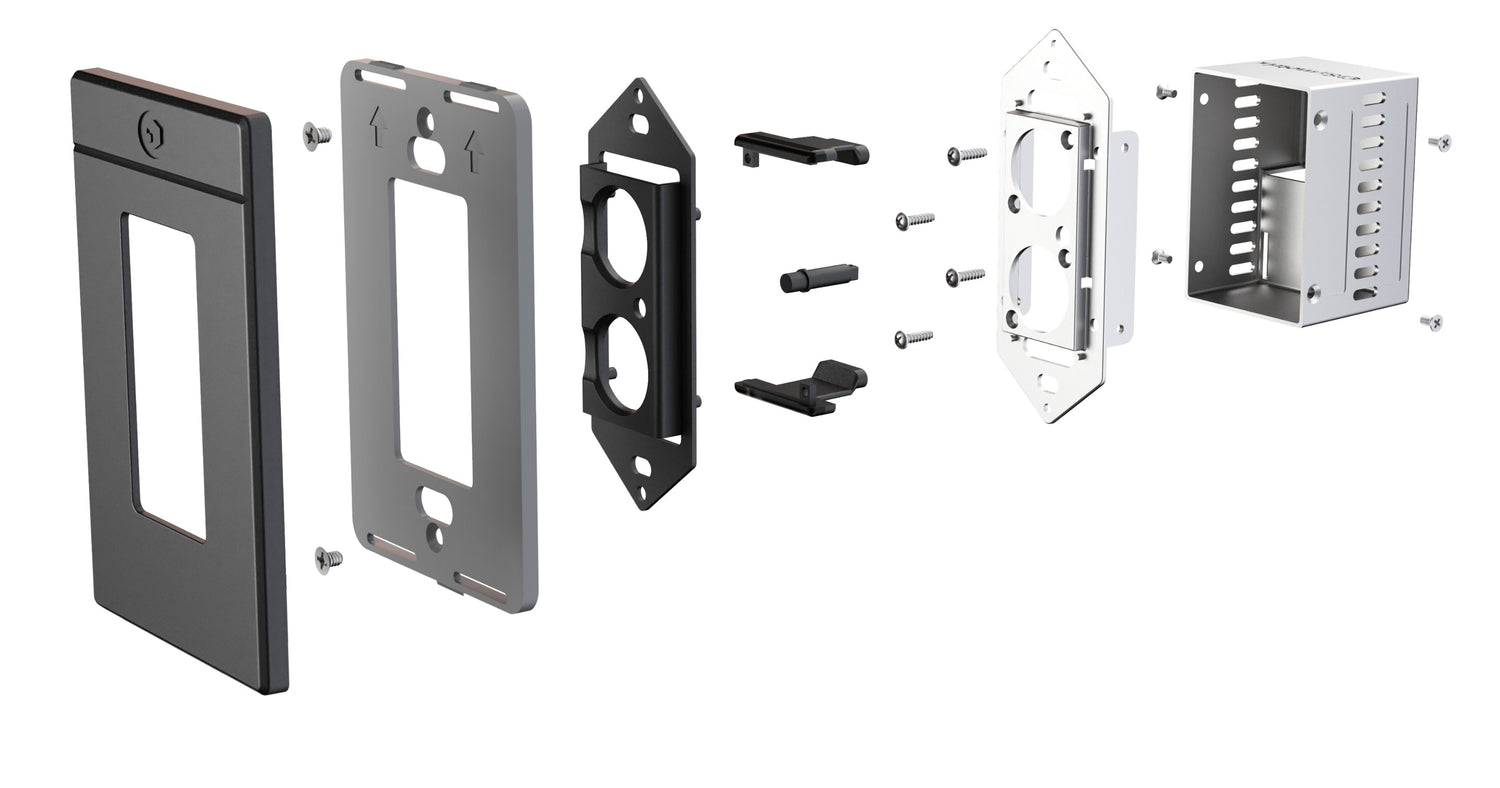

The xIn XLR 4 mounts in a standard US single-gang electrical back box and presents a white Decora faceplate with four female XLR connectors. All four inputs are converted to independent Dante audio streams and delivered over a single Cat cable to the nearest network switch, eliminating four separate analog cable runs from the source location to the equipment rack. Each channel is independently routable and configurable within Symetrix Composer, allowing AV integrators to apply individual gain staging, phantom power settings, and DSP processing to each microphone or line input. This wall plate is particularly well suited to panel installations, stage setups, training rooms with multiple presenters, and any location where four microphone inputs are required in a single compact wall plate. W-Series wall controllers can be paired for local room-level volume and mute control.

Key Features

• 4 XLR Balanced Inputs — Accepts four simultaneous microphone or line-level signals via standard XLR connectors, each converted to an independent Dante network audio channel.
• Dante Network Audio — All four channels stream independently over Dante, allowing separate routing, mixing, and DSP processing for each input in Symetrix Composer.
• Eliminates Four Analog Runs — A single Cat cable to the network switch replaces four separate balanced analog runs from source to rack, significantly reducing cabling infrastructure.
• Decora Single-Gang US Form Factor — Packs four XLR inputs into a standard US single-gang back box, maintaining a professional wall plate appearance.
• Symetrix Composer Integration — Each of the four channels is independently configurable within Composer on Radius NX, Prism, EDGE, and Server D100 platforms.
• W-Series Wall Controller Support — Compatible with Symetrix W1–W4 wall controllers for local room volume and mute control.
• Multi-Presenter Panel Support — Ideal for panel stages, multi-presenter conference tables, and training rooms requiring four independent microphone inputs at one location.
• White Finish — Coordinates with white Decora wall plates and light-finish AV furniture.

Typical Applications

• Panel or board table four-microphone wall input station
• Auditorium stage or dais quad-mic Dante endpoint
• Government chamber multi-microphone wall plate
• House of worship chancel or stage four-mic input
• Training room multi-presenter microphone capture point
• All-hands room conference table microphone wall plate

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Q: Does the xIn XLR 4 provide any audio outputs?

A: No. The xIn XLR 4 is an input-only device. For wall plates with both inputs and outputs, see the xIO XLR 1x1 or xIO XLR 2x2.

Q: Can each XLR input be routed independently?

A: Yes. Each input appears as a separate Dante channel in Symetrix Composer, allowing independent routing, gain staging, and DSP processing for each microphone or line source.

Q: Does the XLR input support phantom power for condenser microphones?

A: Phantom power support should be verified in the Symetrix xIn XLR 4 technical documentation. Contact Creation Networks or Symetrix for confirmation.

Q: Which DSP platforms are compatible?

A: The xIn XLR 4 is compatible with Symetrix Radius NX, Prism, EDGE, and Server D100, configured via Symetrix Composer.

Q: Is a Euro version of the xIn XLR 4 available?

A: At time of publication, the xIn XLR 4 is available in US single-gang form factor (white and black). Contact Creation Networks for current availability of additional form factors.
