Symetrix 80-0224 xIn XLR 2, Black, US
Product Overview

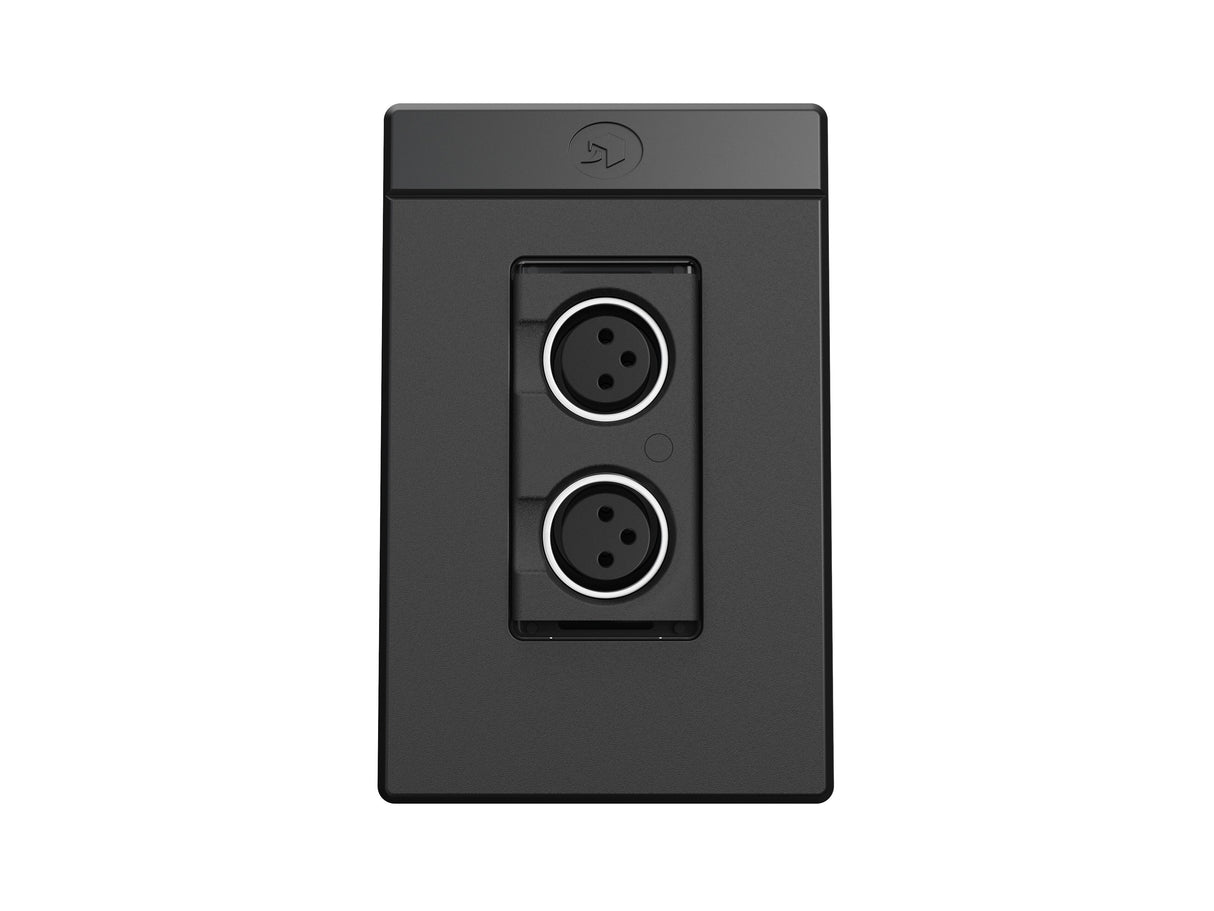

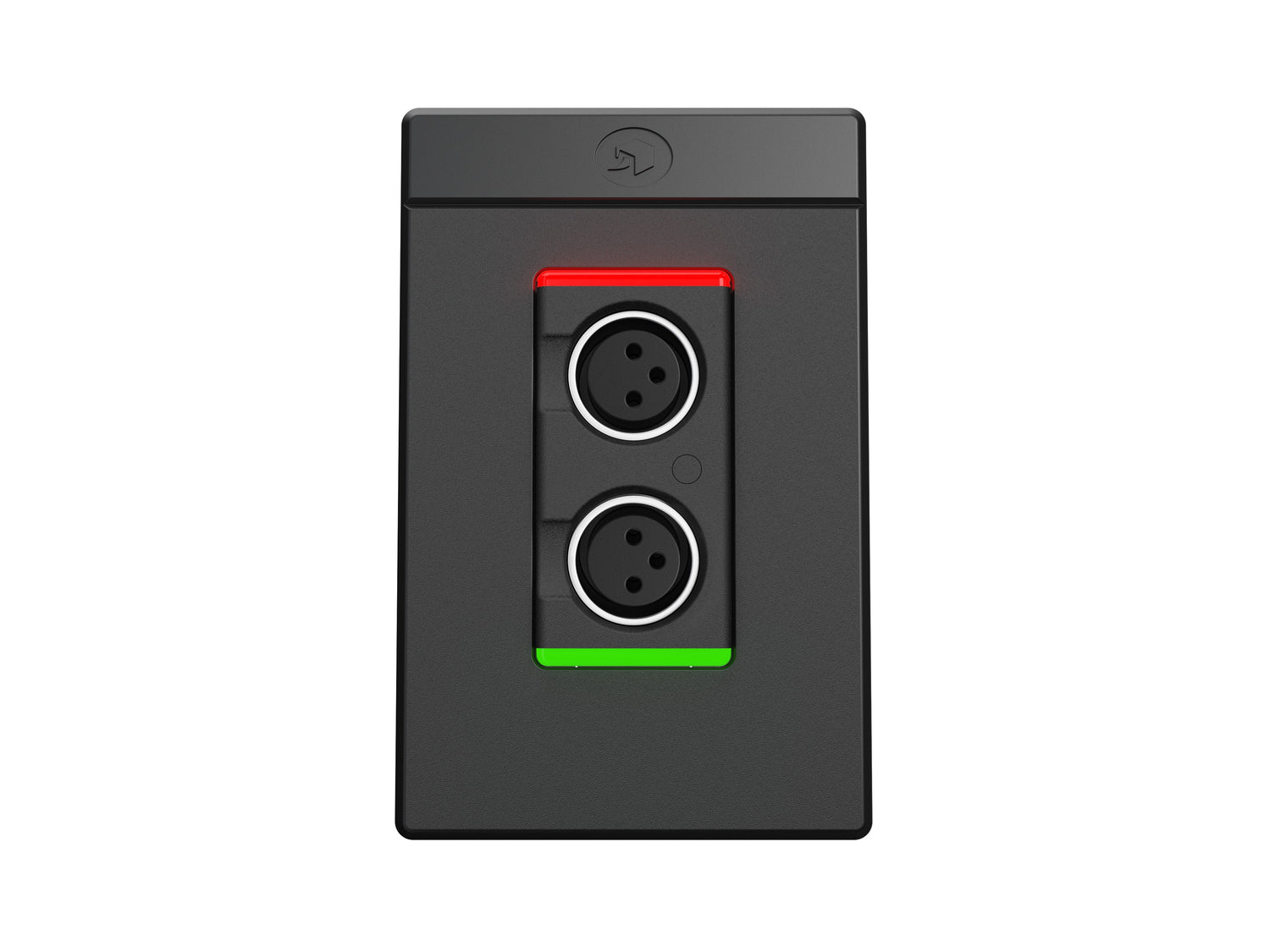

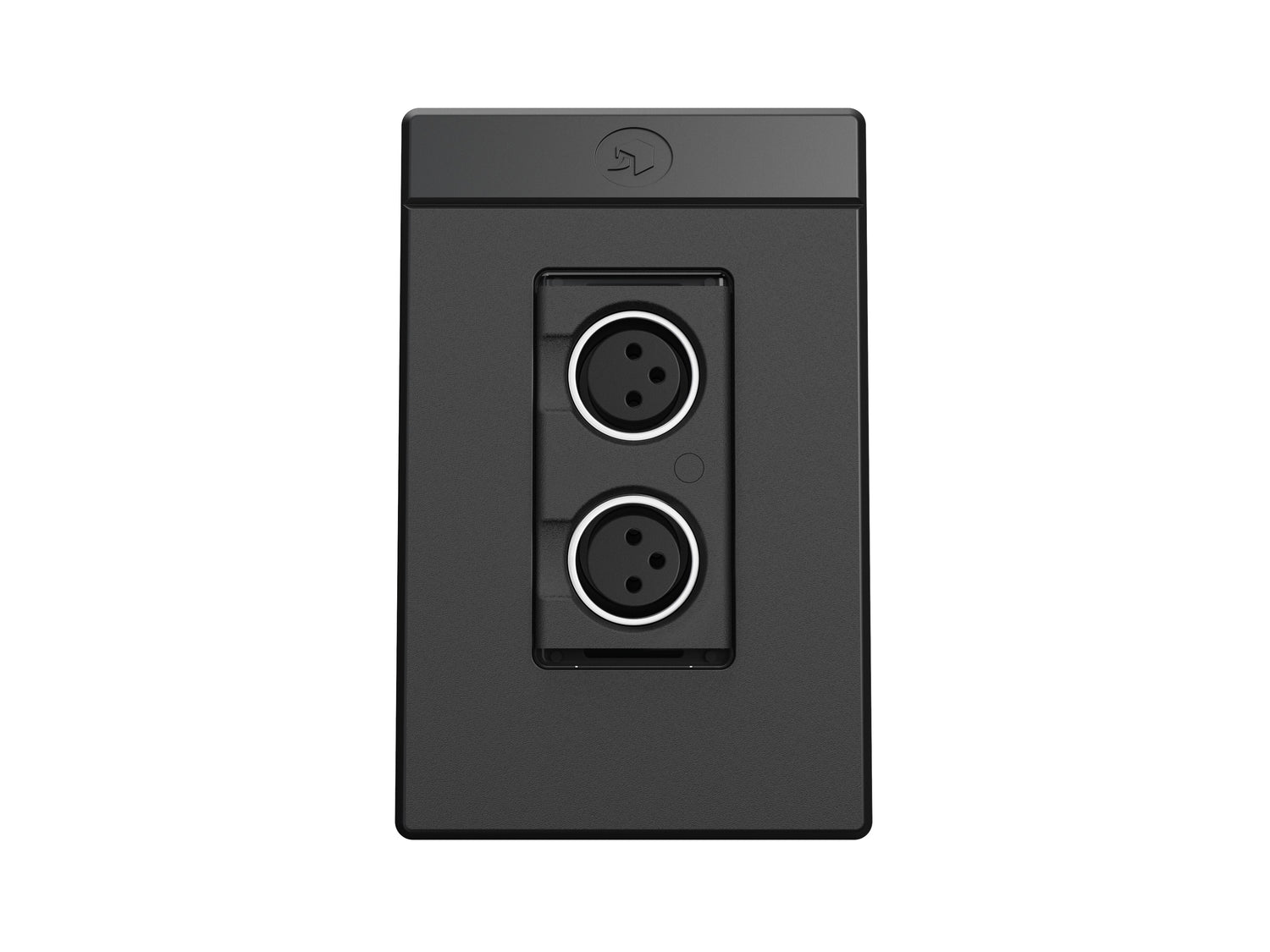

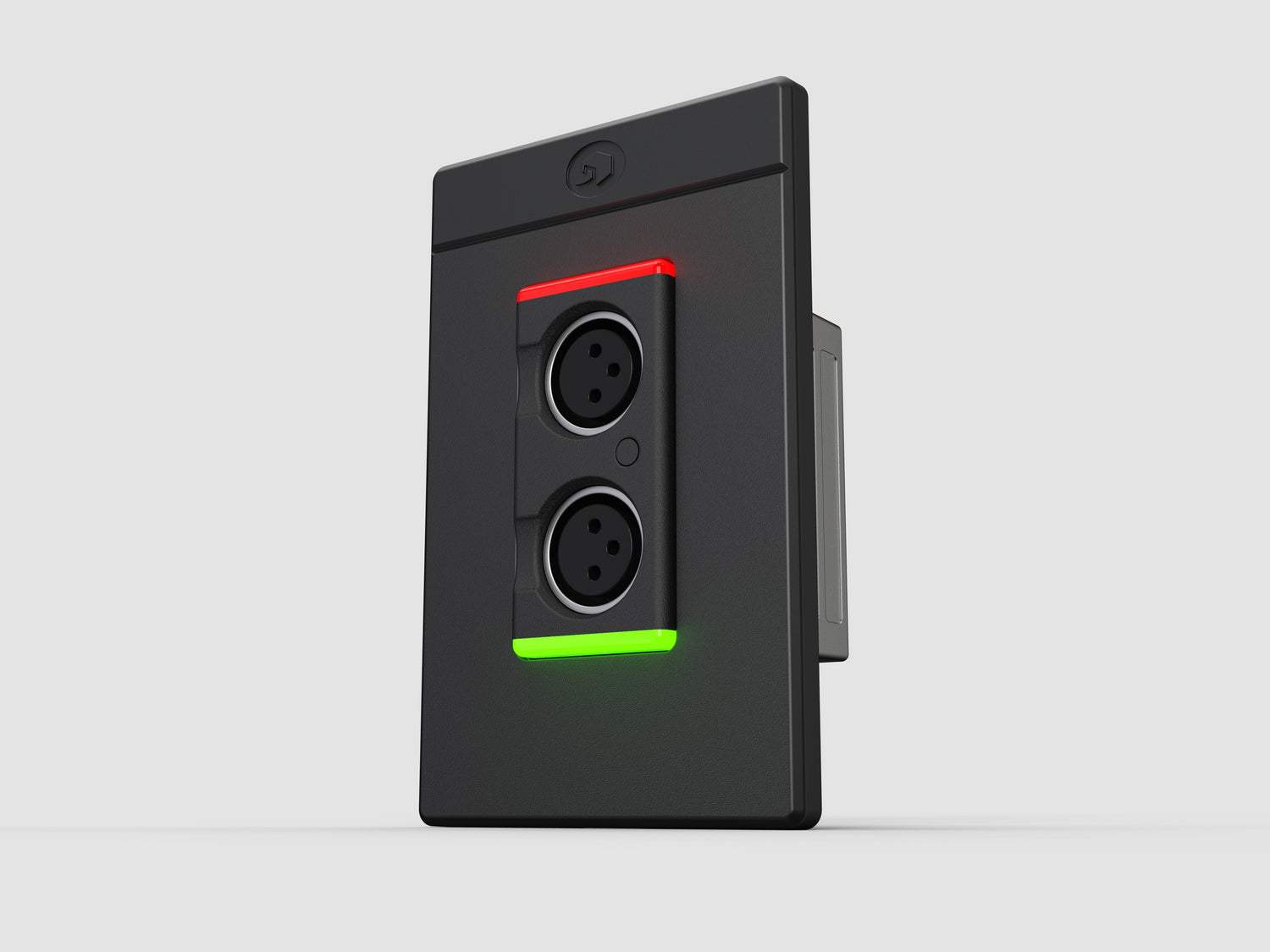

The Symetrix 80-0224 xIn XLR 2 is a Decora-style Dante wall plate endpoint in black for US single-gang electrical boxes, providing two balanced XLR microphone/line inputs with no analog output. It is the black-finish variant of the 80-0212 white, providing identical input-only Dante performance for installations specifying black wall plate fixtures. Powered over Ethernet via IEEE 802.3af PoE; 48 kHz and 96 kHz audio conversion; 1 ms minimum Dante latency. Configured in Symetrix Composer.
Key Features
- 2 Balanced XLR Inputs — Input-only wall plate; no analog output.
- 2 Dante Transmit Channels + AES67 — PoE IEEE 802.3af.
- US Single-Gang, Black — Decora-style black finish.
- 48 and 96 kHz — High-resolution audio.
- Composer Programmable — Fully configured in Symetrix Composer.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 80-0224 |
| Analog Inputs | 2 balanced XLR mic/line |
| Analog Outputs | None |
| Dante Channels | 2 transmit |
| AES67 | Supported |
| Sample Rates | 48 kHz, 96 kHz |
| Power | PoE IEEE 802.3af |
| Form Factor | US single-gang Decora, black |
| Chassis | Die-cast zinc |
