Symetrix 80-0215 xIn XLR 2, White, Euro

Product Overview

The Symetrix 80-0215 xIn XLR 2 is a Dante wall plate endpoint providing two balanced XLR microphone/line inputs in a Euro gang box form factor, designed for European and international commercial AV installations. Purpose-built for two-microphone configurations at podiums, panel tables, and conference walls, this dual-input XLR Dante wall plate converts two simultaneous balanced analog signals to Dante network audio streams at the source location. The xIn XLR 2 Euro integrates natively with Symetrix Radius NX, Prism, EDGE, and Server D100 DSP platforms via Symetrix Composer. Available in a white finish for light-faceplate Euro installations.

Product Description

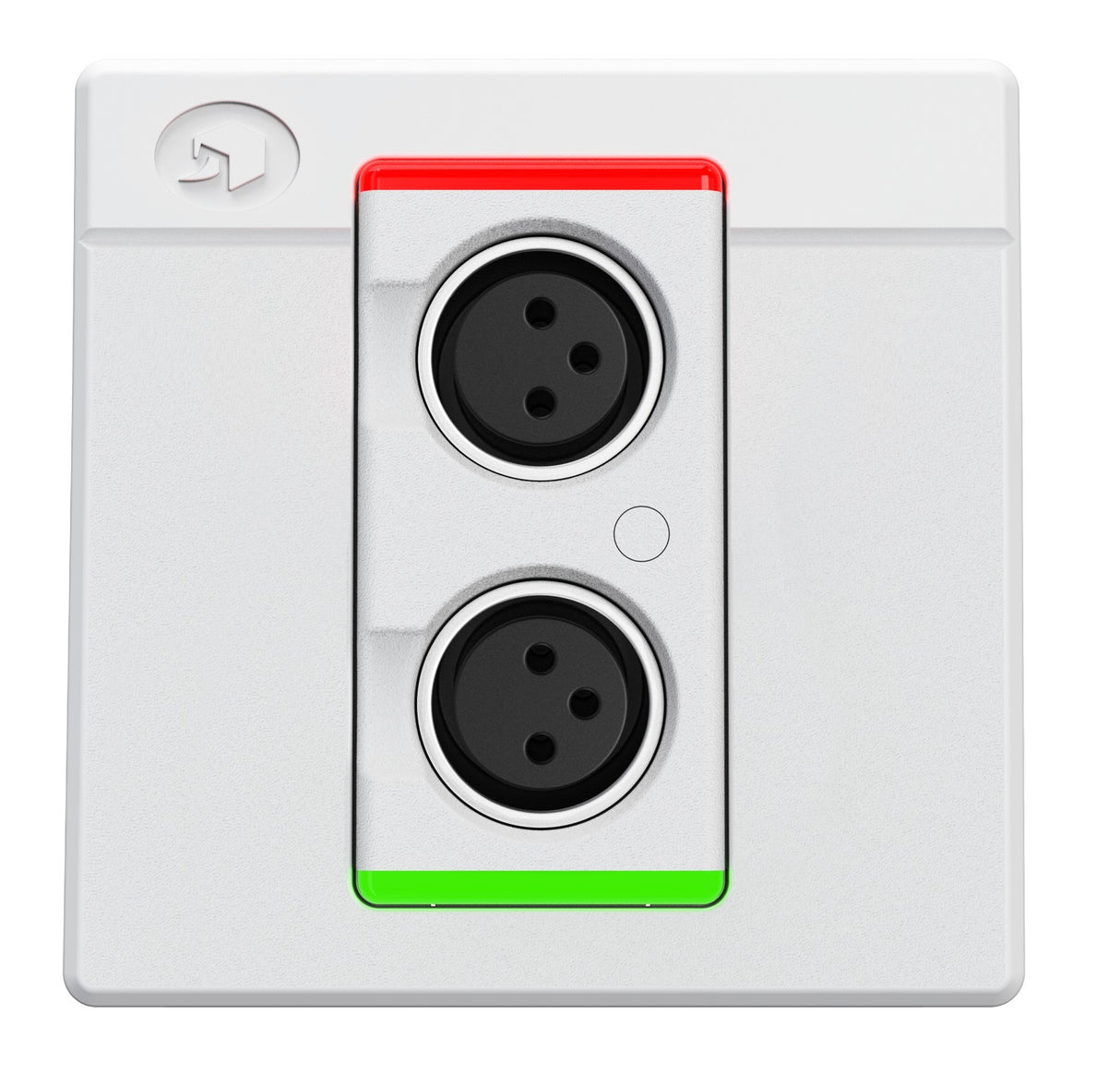

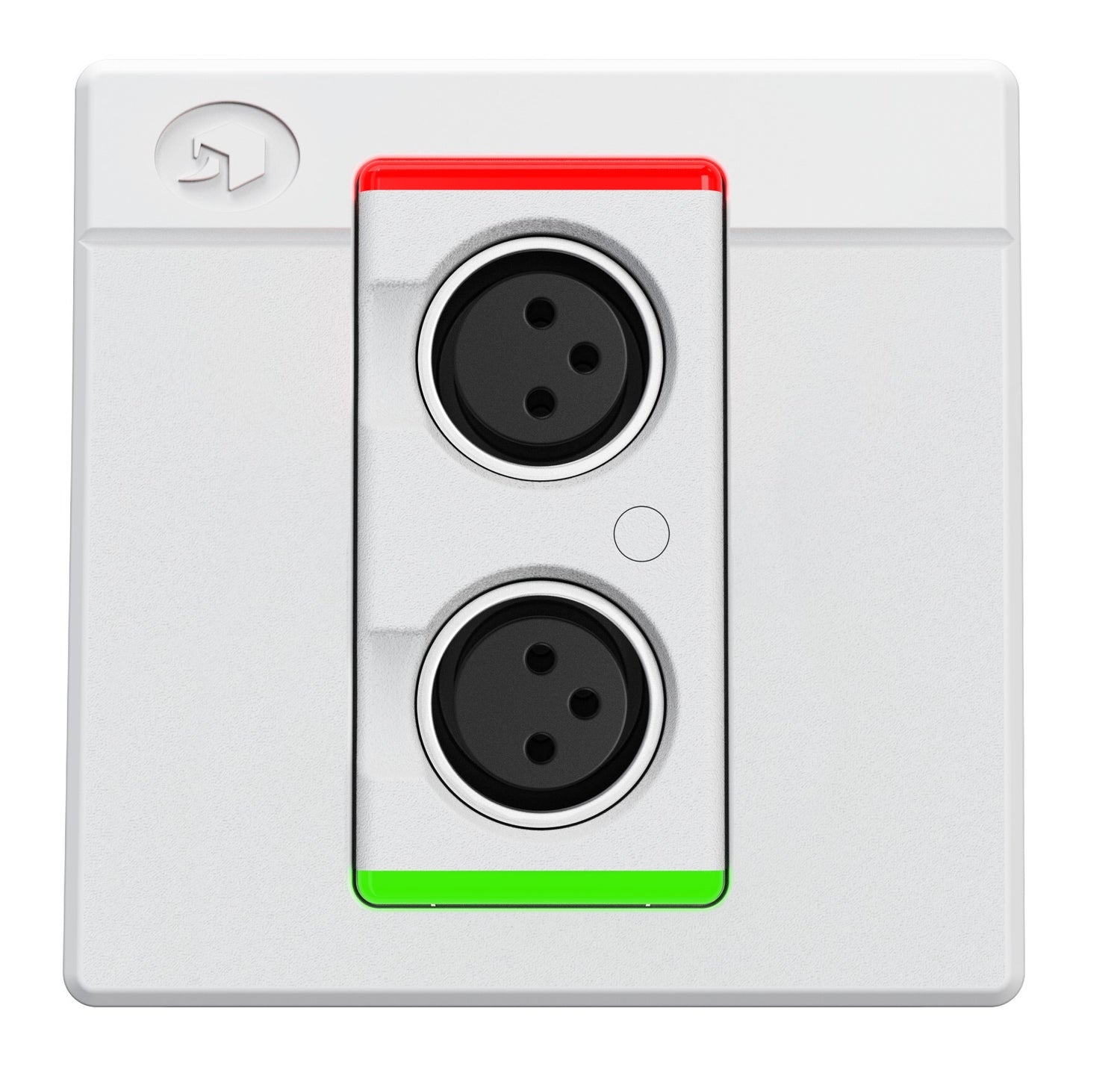

The xIn XLR 2 (Euro) installs in a standard European gang box and presents a white faceplate with two female XLR connectors. Two microphones or line-level sources connect directly to the wall plate, with both signals converted to Dante audio streams over a single Cat cable to the nearest network switch. This eliminates two separate balanced analog cable runs from the presentation point to a rack-mounted DSP. Composer handles all routing, gain, and DSP processing for both channels independently. W-Series wall controllers can provide local room-level volume and mute control. The Euro form factor ensures compatibility with European standard back box installations in commercial and institutional buildings.

Key Features

• 2 XLR Balanced Inputs — Accepts two simultaneous microphone or line-level signals, converting both to independent Dante network audio streams.
• Dante Network Audio — Both channels stream over Dante for separate routing and processing in Symetrix Composer.
• Eliminates Dual Analog Runs — Single Cat cable to the network switch replaces two separate balanced cable runs to the rack.
• Euro Gang Box Form Factor — Designed for European standard gang box back boxes used throughout European and international commercial buildings.
• Symetrix Composer Integration — Both channels fully configurable within Composer on Radius NX, Prism, EDGE, and Server D100 platforms.
• W-Series Wall Controller Support — Compatible with Symetrix W1–W4 wall controllers for local room control.
• White Finish — Coordinates with white Euro wall plates in European commercial installations.

Typical Applications

• European conference room dual-microphone podium input
• Boardroom panel discussion two-mic wall plate (Euro markets)
• House of worship dual lectern microphone connection
• Government chamber dual-microphone wall point
• Auditorium stage dual-mic Dante endpoint

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Q: What is the difference between the US and Euro versions of the xIn XLR 2?

A: The 80-0215 (White Euro) fits European standard gang box back boxes. The 80-0212 (White US) fits standard US single-gang electrical boxes. Audio functionality and Dante integration are identical.

Q: Does the xIn XLR 2 provide any outputs?

A: No. It is an input-only device. For bidirectional XLR at the wall, see the xIO XLR 1x1 or xIO XLR 2x2.

Q: Does the XLR input support phantom power?

A: Verify in Symetrix documentation. Contact Creation Networks or Symetrix for confirmation.

Q: Can both channels be routed independently in the DSP?

A: Yes. Each XLR input is an independent Dante channel in Composer for separate routing and processing.

Q: What is the warranty?

A: Symetrix products are covered by a standard manufacturer warranty. Contact Creation Networks or Symetrix for current terms.
