Symetrix 80-0203 Prism 16x16 (non-Dante)
Product Overview

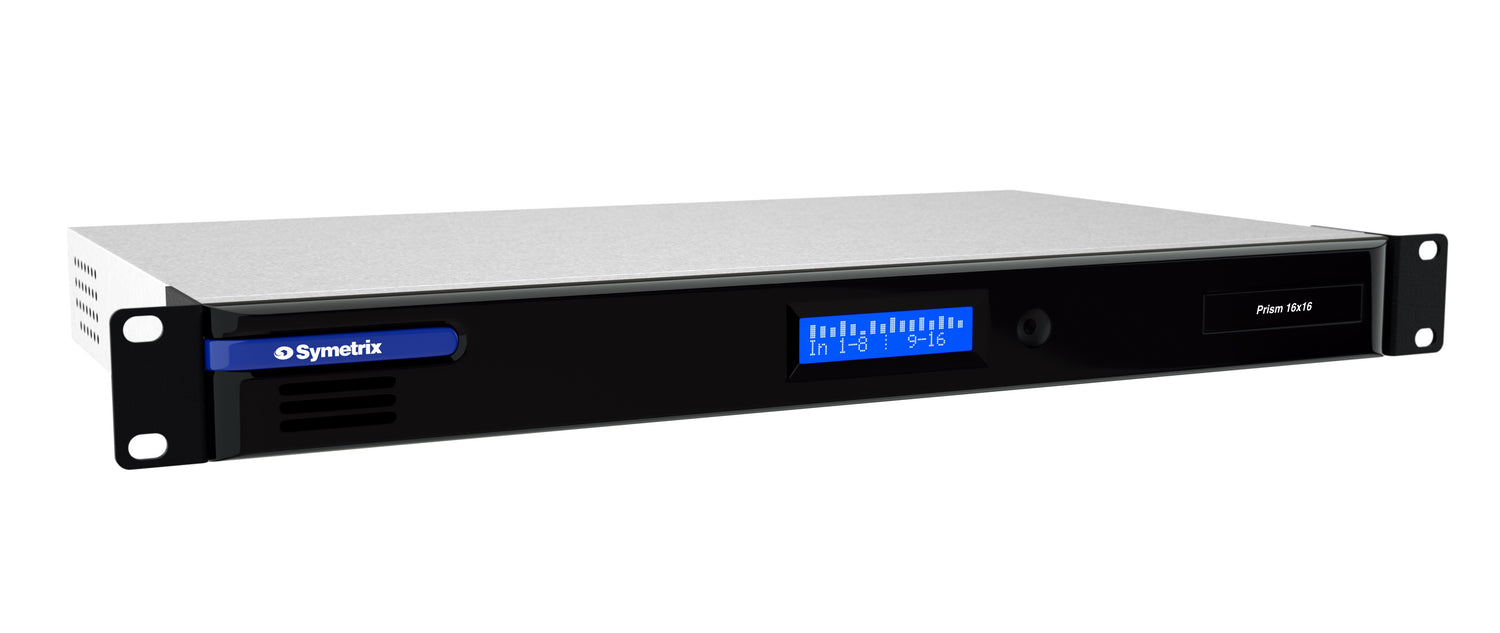

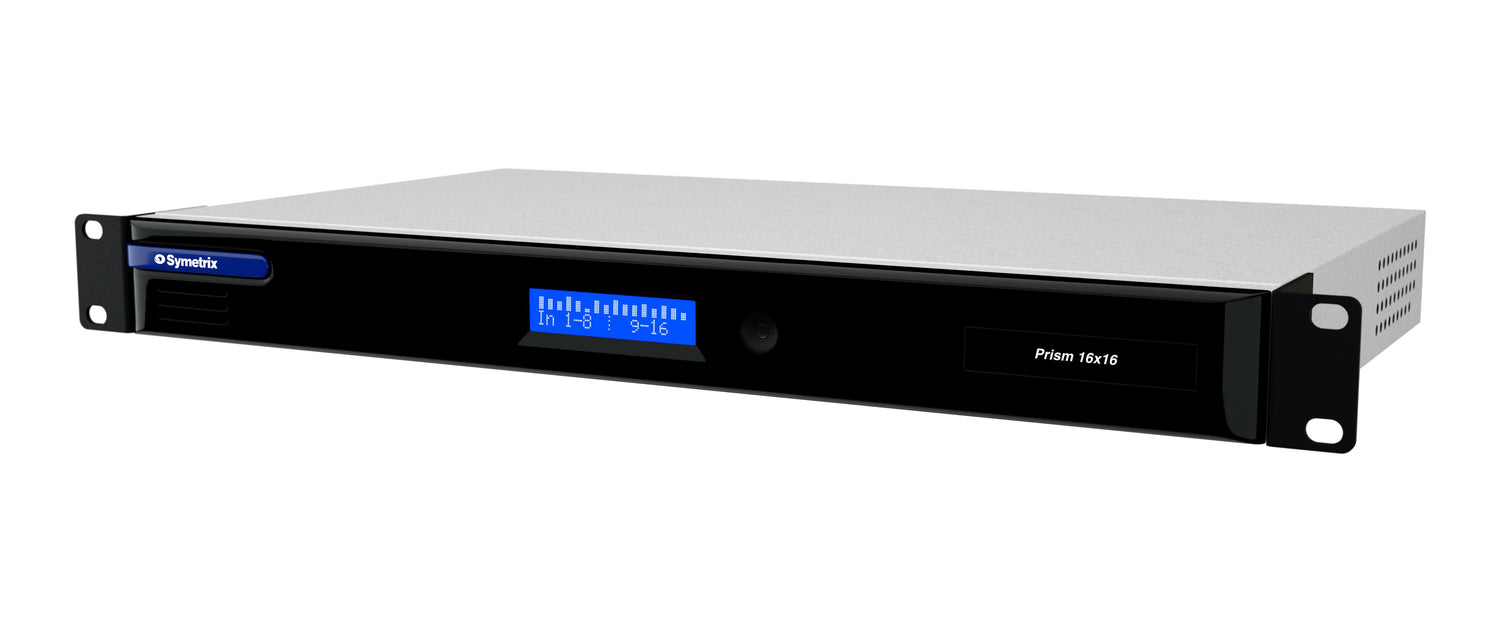

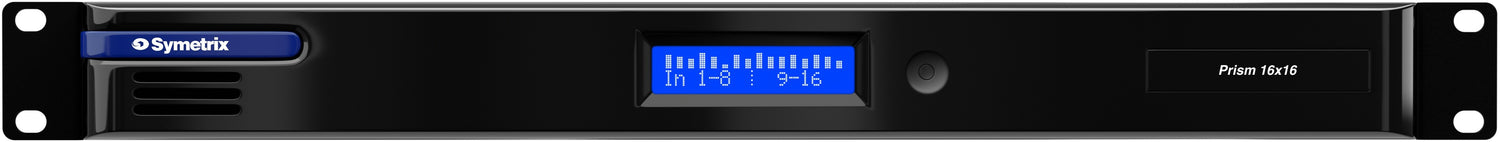

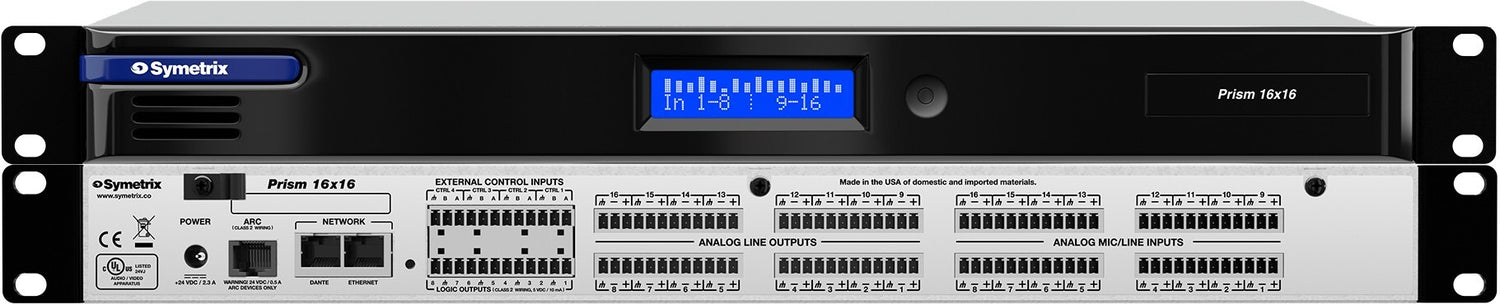

The Symetrix Prism 16x16 (SKU: 80-0203) is a 1U rack-mount fixed-architecture DSP processor providing 16 balanced analog inputs and 16 balanced analog outputs without onboard Dante networking. It is the analog-only variant of the Prism 16x16 platform, suited to large commercial AV installations operating on analog wiring infrastructure where AVoIP networking is not required. All processing runs at 40-bit floating point, 48 kHz, programmed in Symetrix Composer at no license cost.
Product Description

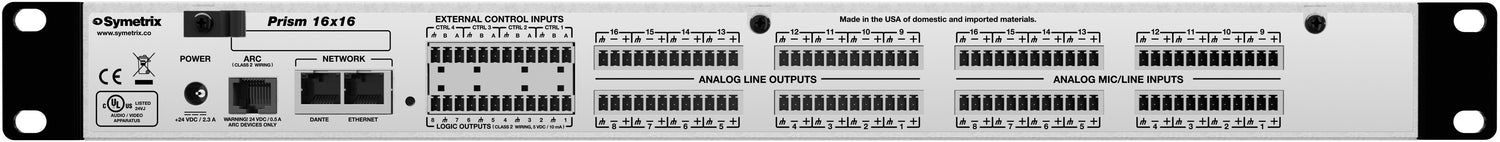

The Prism 16x16 non-Dante shares the same processing architecture, mic preamp quality, and Composer compatibility as the Prism 16x16 Dante (80-0117), differing only in the absence of Dante network audio. The 16 balanced mic/line inputs each have coarse gain, fine trim, and phantom power; the 16 balanced analog outputs have fine trim. Total A/D/A latency is 0.88 ms. This model is appropriate for houses of worship, performing arts venues, and government spaces with all-analog signal distribution, where introducing Dante to the network is not desired or permitted. Full Composer site file compatibility with all other Symetrix DSP platforms is maintained.
Key Features
- 16 Balanced Analog Inputs — Mic/line switchable; coarse gain, fine trim, phantom power.
- 16 Balanced Analog Outputs — Balanced line-level with fine trim.
- No Dante — Analog Only — Simplified architecture for analog-only AV infrastructure.
- 40-Bit Floating Point, 48 kHz — 0.88 ms total A/D/A latency.
- Fixed Architecture — No expansion slots required.
- Composer Programmable — Free open-architecture DSP software.
Typical Applications
- Houses of worship with large analog signal chains
- Performing arts centers and auditoriums on analog wiring
- Government spaces with analog compliance or network restriction requirements
- Large conference rooms on analog AV infrastructure
- Multi-zone commercial audio without AVoIP
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 80-0203 |
| Form Factor | 1U Rack-Mount |
| Analog Inputs | 16 balanced mic/line |
| Analog Outputs | 16 balanced line |
| Dante | None (analog only) |
| Expansion Slots | None |
| Processing | 40-bit floating point, 48 kHz |
| Total A/D/A Latency | 0.88 ms |
| Programming Software | Symetrix Composer (free) |
Frequently Asked Questions
- Can I add Dante to the Prism 16x16 non-Dante?
- The Prism non-Dante models do not have a field-upgradeable Dante option. Specify the Prism 16x16 Dante (80-0117) at purchase if Dante is required.
