Symetrix 80-0117 Prism 16x16 Dante

Product Overview

The Symetrix Prism 16x16 Dante (80-0117) is a 1U rack-mount DSP with 16 balanced analog inputs, 16 balanced analog outputs, and a native Dante card for AV-over-IP audio networking in commercial conference rooms, training rooms, and multi-purpose spaces. Designed for AV integrators who require a capable, mid-channel-count DSP with full Dante connectivity, the Prism 16x16 Dante delivers acoustic echo cancellation, automatic gain control, gating, mixing, and signal routing within Symetrix Composer — all without per-unit software licensing fees. Its open-architecture compatibility with ARC wall panels and xIO Dante endpoints makes it a natural fit for scalable, distributed conference room audio systems.

Product Description

The Prism 16x16 Dante processes audio at 40-bit floating-point precision at 48 kHz, providing clean headroom for complex DSP chains including AEC, noise gating, AGC, and custom mixing configurations. Phoenix terminal connectors on all analog I/O simplify installation in permanent rack environments and reduce termination time during system commissioning. The native Dante card enables direct integration with Dante-enabled microphone arrays, amplifiers, ceiling speakers, and unified communications endpoints without the need for separate audio networking hardware.

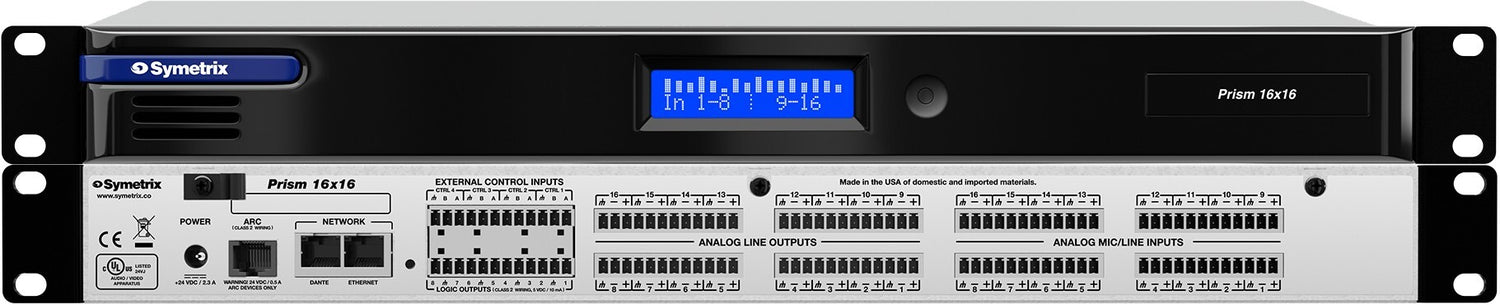

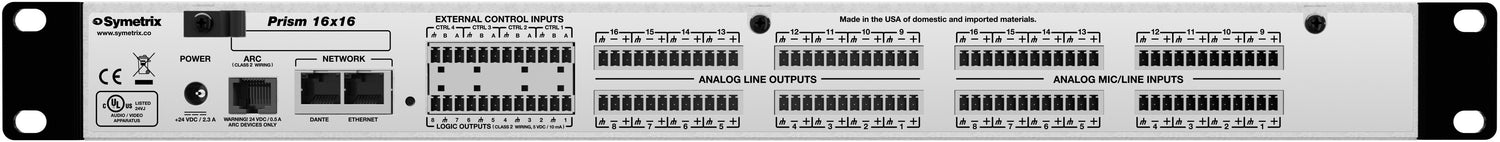

Pictured above (front and rear), the Prism 16x16 Dante occupies a single rack unit and provides a clean rear-panel layout with clearly labeled phoenix terminal blocks for inputs and outputs alongside dual Dante network ports. Programming is handled in Symetrix Composer, which provides drag-and-drop DSP block configuration, signal flow visualization, and direct control system bindings for Crestron, AMX, and similar platforms. The unit also supports ARC-WEB browser-based control and is compatible with the full range of Symetrix ARC wall panel controllers for room-level user interfaces.

Key Features

• 16 Balanced Analog Inputs / 16 Balanced Analog Outputs — Phoenix terminal I/O supports microphones (with phantom power), line-level sources, and amplifier feeds across 16 independent channels in each direction.
• Native Dante Card — Onboard Dante audio networking provides low-latency AoIP connectivity to any Dante-enabled device on the network without external conversion hardware.
• Acoustic Echo Cancellation (AEC) — Integrated AEC removes loudspeaker-to-microphone feedback for clear far-end audio in conference room and hybrid meeting environments.
• Automatic Gain Control (AGC) — AGC maintains consistent audio levels across varying talker volumes, reducing manual adjustment requirements in managed meeting spaces.
• Gating and Mixing — Configurable noise gates and mixing matrices allow complex microphone management in multi-talker rooms including boardrooms and training facilities.
• 40-Bit Floating-Point Processing at 48 kHz — Extended precision DSP engine maintains audio fidelity throughout the signal chain, preventing clipping even in high-gain scenarios.
• Symetrix Composer Programming (No License Fee) — Full DSP configuration, routing, and control system integration is handled in Composer at no per-seat or per-unit cost.
• ARC Wall Panel and xIO Endpoint Compatible — Integrates natively with Symetrix ARC room controllers and xIO Dante endpoints to extend I/O or add distributed user control points.
• 1U Rack-Mount Form Factor — Standard 1U chassis fits into AV equipment racks in furniture, rack rooms, or above-ceiling enclosures.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• Training room
• Multi-purpose room
• Commercial meeting space
• Government space
• House of worship

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Q: Does the Prism 16x16 Dante require a separate Dante license or card?

A: No. The Dante card is included with the 80-0117 at no additional cost. The unit ships ready for Dante network integration.

Q: Can the Prism 16x16 Dante be expanded with additional I/O?

A: The Prism series is a fixed I/O platform. For expanded I/O, Symetrix xIO Dante endpoints can be added to the Dante network to extend analog or digital I/O at remote locations within the facility.

Q: What control systems are compatible with the Prism 16x16 Dante?

A: The unit supports third-party control via Crestron, AMX, and other TCP/IP-based control systems through Composer-configured control bindings. Native integration is available with Symetrix ARC wall panels for end-user room controls.

Q: Is phantom power available on the analog inputs?

A: Yes. The analog inputs support phantom power for condenser microphone connectivity. Refer to the Symetrix installation guide for per-channel phantom power configuration in Composer.

Q: What is the warranty on the Prism 16x16 Dante?

A: Symetrix provides a standard manufacturer warranty on the Prism series. Contact Creation Networks for full warranty terms and support options for your installation.
