Symetrix 80-0185 xIO Bluetooth, White, US
Product Overview

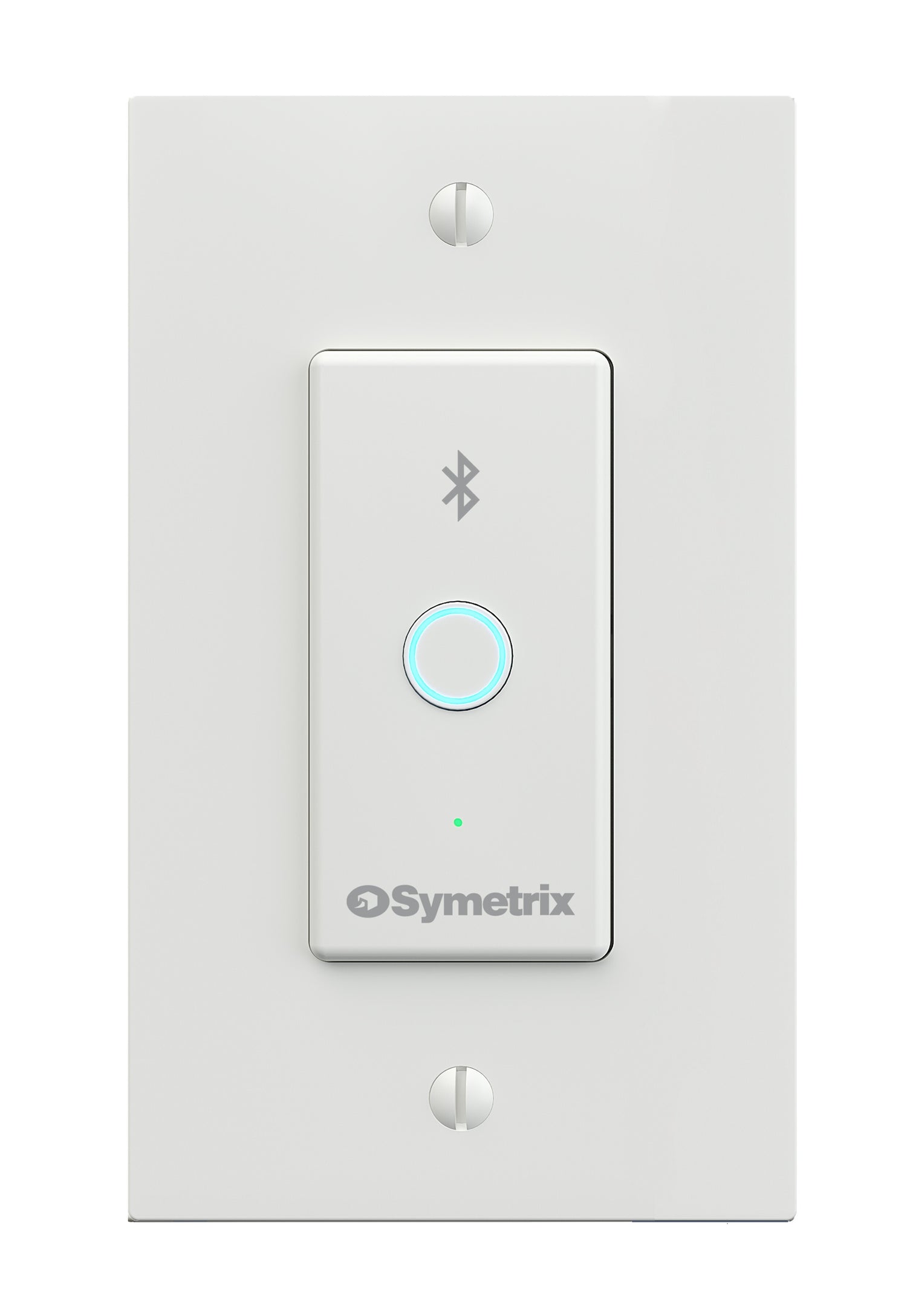

The Symetrix 80-0185 xIO Bluetooth is a Decora-style Dante wall plate endpoint in white for US single-gang electrical boxes that integrates Bluetooth 5.0 wireless audio directly into a Dante network. It is the first single-gang Dante-enabled Bluetooth endpoint in the commercial AV industry, enabling users to stream audio wirelessly from a smartphone, tablet, or laptop to the room’s audio system via the Symetrix DSP — without a separate Bluetooth receiver, audio cable, or additional hardware. Powered over Ethernet via IEEE 802.3af PoE.
Product Description

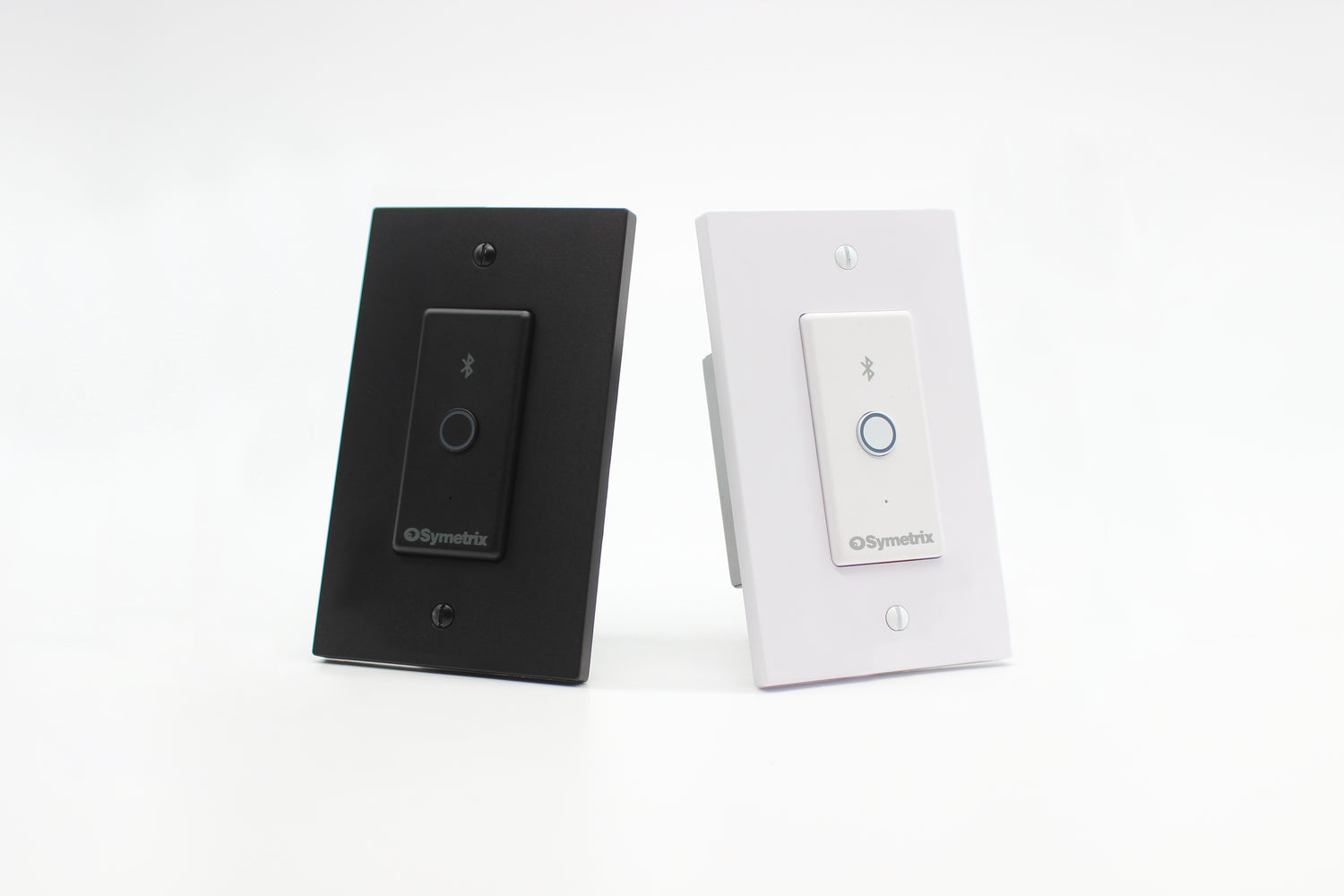

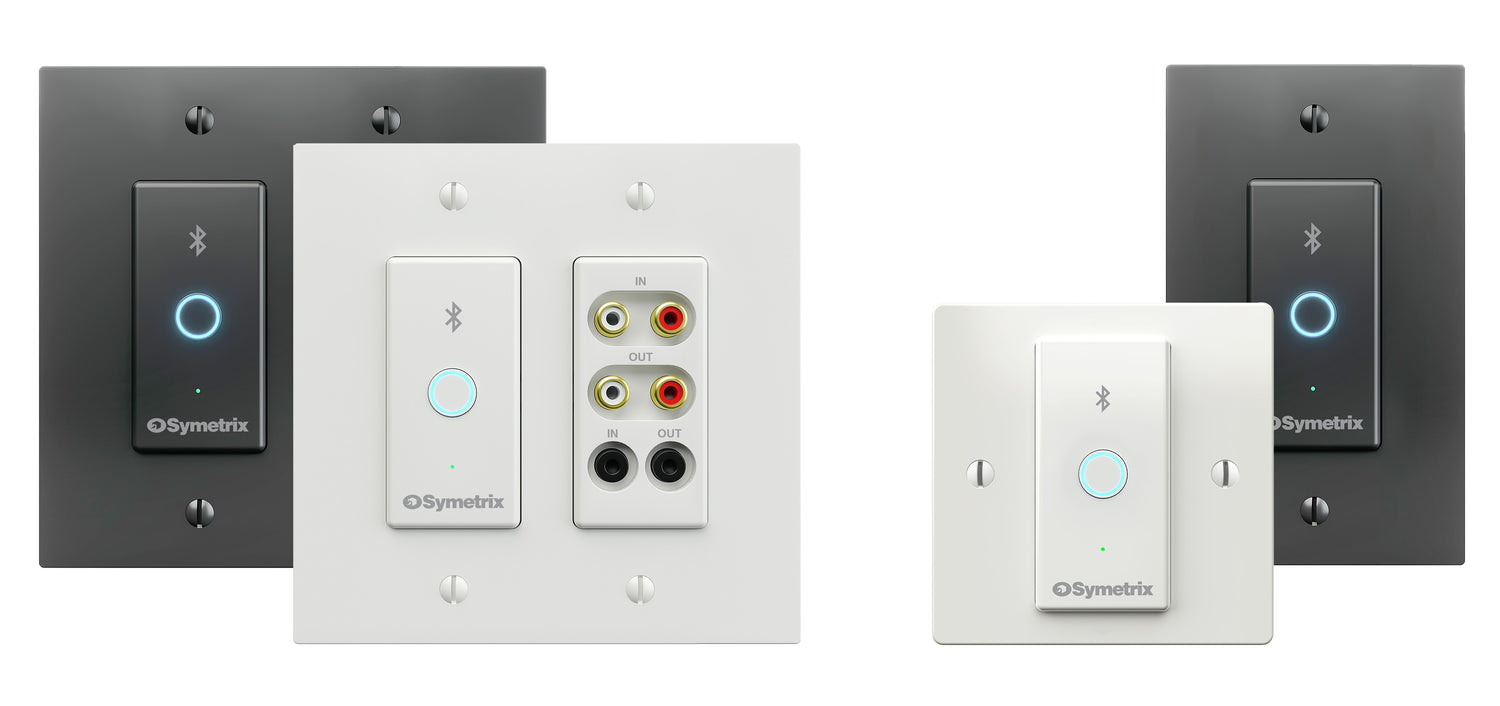

The xIO Bluetooth provides a clean, wall-mounted Bluetooth pairing point in conference rooms, hospitality spaces, training rooms, and multi-purpose rooms. The Bluetooth 5.0 chipset delivers extended range and stable connection quality, with audio conversion at 24-bit, 48 kHz and a signal-to-noise ratio of no less than 95 dB. The Bluetooth audio is bridged to the Dante network over the single PoE Cat cable, and all routing and Dante configuration is managed in Symetrix Composer as part of the overall DSP site file. This eliminates the need for table-top Bluetooth receivers, dangling cables, and separate interface boxes in meeting rooms. Also available in black (80-0186). For a version with added RCA and 3.5mm analog I/O alongside Bluetooth, see the xIO Bluetooth RCA-3.5 (80-0189).
Key Features
- Bluetooth 5.0 Audio Input — Wireless audio from smartphones, tablets, and laptops to the Dante network.
- Dante Integration — Bluetooth audio bridged to Dante; AES67 compatible.
- PoE IEEE 802.3af — Powered by a single Cat cable; no separate power at the wall.
- 24-bit, 48 kHz Conversion — SNR ≥95 dB; professional audio quality at wall plate level.
- US Single-Gang, White — Decora-style Decora form factor for US electrical boxes.
- Composer Programmable — Bluetooth audio routed in Symetrix Composer site file.
Typical Applications
- Conference rooms with wireless audio presentation from mobile devices
- Hospitality venues offering Bluetooth audio for guests in meeting rooms and lounges
- Training rooms with instructor wireless audio from a tablet or laptop
- Multi-purpose rooms with wall-mounted Bluetooth pairing points
- Boardrooms replacing table-top Bluetooth receivers with flush wall plate endpoints
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 80-0185 |
| Bluetooth Version | 5.0 |
| Audio Conversion | 24-bit, 48 kHz |
| SNR | ≥95 dB |
| Dante Channels | Transmit (Bluetooth to Dante) |
| AES67 | Supported |
| Power | PoE IEEE 802.3af |
| Network | 100 Base-T RJ45 |
| Form Factor | US single-gang Decora, white |
| Programming | Symetrix Composer |
Frequently Asked Questions
- Can multiple users pair to the xIO Bluetooth simultaneously?
- Bluetooth 5.0 supports standard pairing. Contact Creation Networks for current xIO Bluetooth multi-pairing specifications.
- Does the xIO Bluetooth have an output at the wall plate?
- No. The standard xIO Bluetooth (80-0185/80-0186) is input-only — it brings Bluetooth audio into the Dante network. For a version with RCA and 3.5mm analog output at the wall plate, use the xIO Bluetooth RCA-3.5 (80-0189/80-0191).
